3040-01-008-1004 A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified).

Part Alternates: 6910662, 69-1066-2, 3040-01-008-1004, 01-008-1004, 3040010081004, 010081004

Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment

Supply Group (FSG) NSN Assign. NIIN
30 16 AUG 1975 01-008-1004

Drawings & Photos | NSN 3040-01-008-1004


Cross Reference | NSN 3040-01-008-1004

Part Number Cage Code Manufacturer
69-1066-2 17765 BOEING COMPANY, THE DBA BOEING
69-1066-2 82918 THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3040-01-008-1004

Technical Data | NSN 3040-01-008-1004

Characteristic Specifications

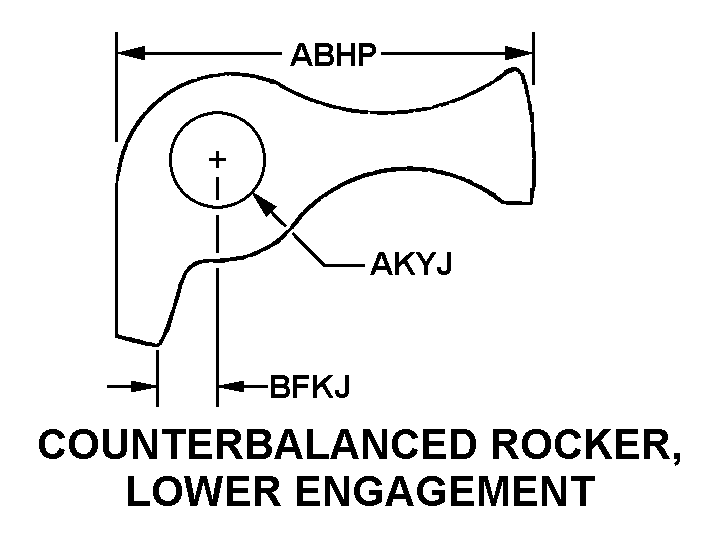

STYLE DESIGNATOR A24 COUNTERBALANCED ROCKER, LOWER ENGAGEMENT
OVERALL LENGTH 1.470 INCHES NOMINAL
PIVOT PIN HOLE DIAMETER 0.090 INCHES NOMINAL
MATERIAL THICKNESS 0.248 INCHES NOMINAL
SPECIAL FEATURES CASEHARDENED;MATERIAL DOCUMENT AND CLASSIFICATION:STEEL COMP 630;FSC APPLICATION DATA:STRUCTURAL COMPONENT,AIRFRAME
MANUFACTURERS CODE 82918
DESIGN CONTROL REFERENCE 69-1066-2
