Product Details | SHOULDERED SHAFT
3040-00-937-5700 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 8432835, 3040-00-937-5700, 00-937-5700, 3040009375700, 009375700
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 11 JAN 1967 | 00-937-5700 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-00-937-5700
Cross Reference | NSN 3040-00-937-5700
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8432835 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-937-5700
Technical Data | NSN 3040-00-937-5700
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-11415,CLASS A1 MIL SPEC SINGLE MATERIAL RESPONSE |
| FIRST END STYLE | 1 PLAIN |
| FIRST END DIAMETER | 0.2490 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

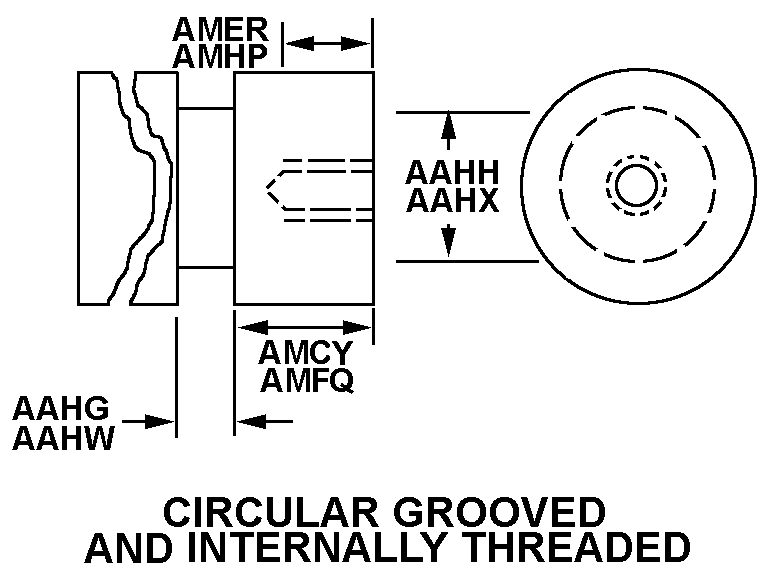

| SECOND END STYLE | 33 CIRCULAR GROOVED AND INTERNALLY THREADED |
| SECOND END GROOVE WIDTH | 0.0600 INCHES NOMINAL |
| SECOND END GROOVE DIAMETER | 0.0400 INCHES NOMINAL |
| SECOND END DISTANCE FROM END TO GROOVE | 0.147 INCHES NOMINAL |
| SECOND END DIAMETER | 0.2490 INCHES NOMINAL |
| SECOND END INTERNAL THREAD LENGTH | 1.940 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 0.497 INCHES NOMINAL |
| OVERALL LENGTH | 2.958 INCHES NOMINAL |
| STEP QUANTITY | 7 |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 8432835 |
Restrictions/Controls & Freight Information | NSN 3040-00-937-5700
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | C | Munitions List Item or Commerce Control List Item. Demilitarization required. Remove and/or demilitarize installed key point(s) as prescribed in the Defense Demilitarization Manual, or lethal parts, components and accessories. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 146150 | GUN CARRAIGE/GUN MOUNT PARTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 685 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
