NSN 3040-00-919-4603 2090607331, 209-060-733-1, 00-919-4603
Product Details | RIGID CONNECTING LINK
3040-00-919-4603 An item of various cross-sectional shapes which may be of solid or hollow construction. It is specifically designed for attachment to a lever(s) and/or control(s) to actuate various remote mechanisms. It is one of the following: (1) A one-piece item with or without eyes and/or holes in each end which may have bushings or bearings pressed in the eyes; (2) A one-piece item with both ends processed for terminations, excluding threaded end(s); (3) A two-piece construction type item consisting of a body with both ends processed for terminations and a single end attachment; or (4) A three-piece construction type item consisting of a body and two end attachments. Excludes internal combustion engine type piston connecting rods; DRAG LINK, STEERING; LINK, ANCHOR, BRAKE SHOE; TIE ROD, STEERING; and TURNBUCKLE. For cylindrical shaped externally threaded items without end attachments, see ROD, THREADED END and STUD (as modified).
Part Alternates: 2090607331, 209-060-733-1, 3040-00-919-4603, 00-919-4603, 3040009194603, 009194603
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 08 AUG 1966 | 00-919-4603 | 21988 ( CONNECTING LINK, RIGID ) |

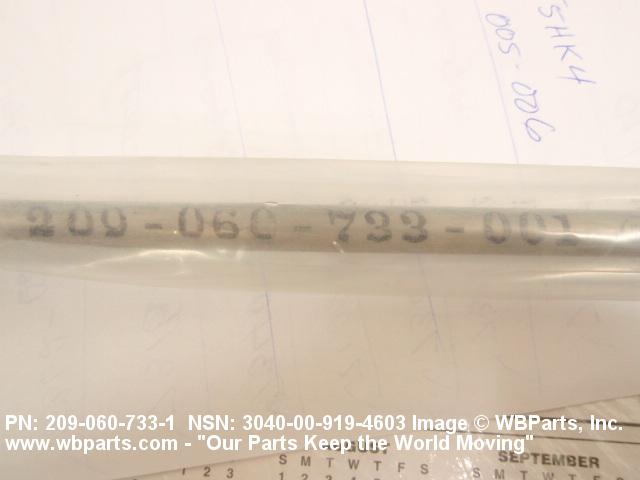

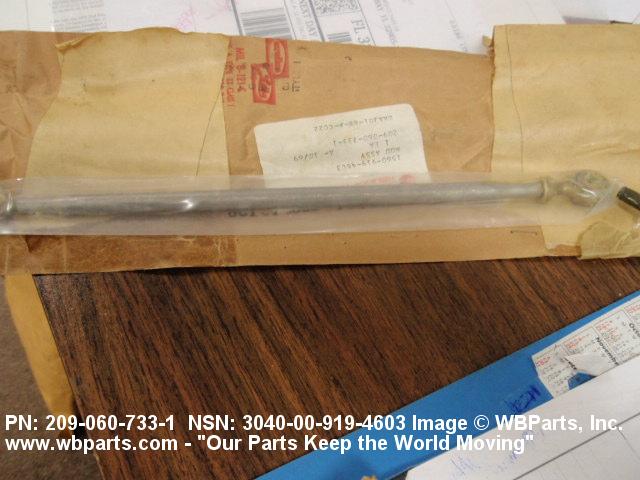

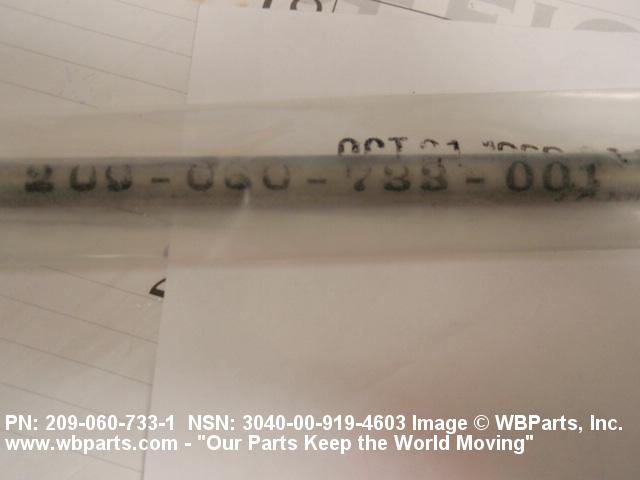

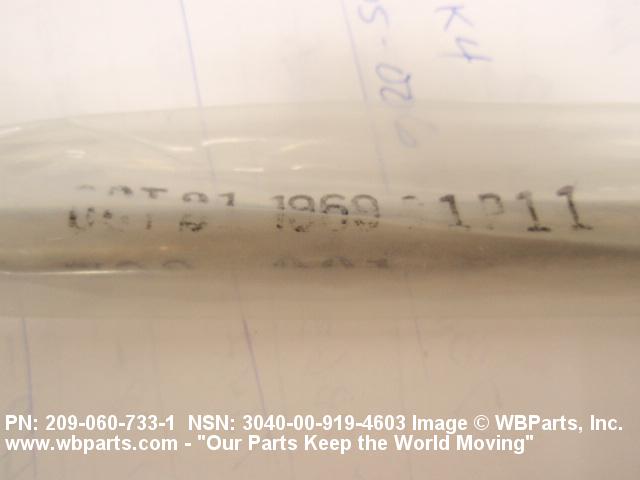

Drawings & Photos | NSN 3040-00-919-4603
Demand History | NSN 3040-00-919-4603
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-00-919-4603 | 2019-08-221 | 1 | United States |
| 3040-00-919-4603 | 2010-08-214 | 5 | DIBBS |
| 2090607331 | 2010-01-19 | 1 | United States |
| 3040-00-919-4603 | 2009-10-303 | 1 | United States |
| 3040-00-919-4603 | 2009-09-258 | 3 | United States |
| 3040-00-919-4603 | 2009-05-144 | 5 | DIBBS |
| 3040-00-919-4603 | 2008-12-348 | 1 | DIBBS |
| 3040-00-919-4603 | 2008-04-105 | 1 | DIBBS |
Cross Reference | NSN 3040-00-919-4603
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 209-060-733-1 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-919-4603
Technical Data | NSN 3040-00-919-4603
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-8606, TY 1, COMP 321 MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE |
| BODY CONSTRUCTION | TUBULAR |
| LINK STYLE | A44 SOLID SHANK |
| OVERALL LENGTH | 11.910 INCHES MINIMUM AND 11.961 INCHES MAXIMUM |
| BODY DIAMETER | 0.375 INCHES NOMINAL |
| END ATTACHMENT HOLE DIAMETER | 0.1895 INCHES MINIMUM AND 0.1915 INCHES MAXIMUM BOTH ENDS |
| END ATTACHMENT LENGTH | 1.420 INCHES MINIMUM AND 1.465 INCHES MAXIMUM FIRST END 2.420 INCHES MINIMUM AND 2.465 INCHES MAXIMUM SECOND END |
| END ATTACHMENT WIDTH | 0.432 INCHES MINIMUM AND 0.437 INCHES MAXIMUM BOTH ENDS |
| SPECIAL FEATURES | EFFECTIVE LENGTH: 11.170 INCHES; THREAD INFO: RIGHT HAND LENGTH 0.500 TO 0.620 INCH, 1/4-28 UNF; END ATTACHMENT INFO: DIAMETER 0.740 TO 0.791 INCH, MATERIAL STEEL BOTH ENDS, SURFACE TREATMENT CADMIUM PLATED BOTH ENDS, BEARING HOLE LOCATION BOTH ENDS, LOCKNUT INCLUDED |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 209-060-733-1 |
Restrictions/Controls & Freight Information | NSN 3040-00-919-4603
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095630 | LAP/CONNECTING LINKS/RINGS STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-919-4603
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
