3040-00-866-8041 A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified).
Part Alternates: 360293, 3040-00-866-8041, 00-866-8041, 3040008668041, 008668041
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1960 | 00-866-8041 | 22101 ( PAWL ) |
Drawings & Photos | NSN 3040-00-866-8041
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-00-866-8041
Related Products | NSN 3040-00-866-8041
Technical Data | NSN 3040-00-866-8041
| Characteristic | Specifications |
|---|---|

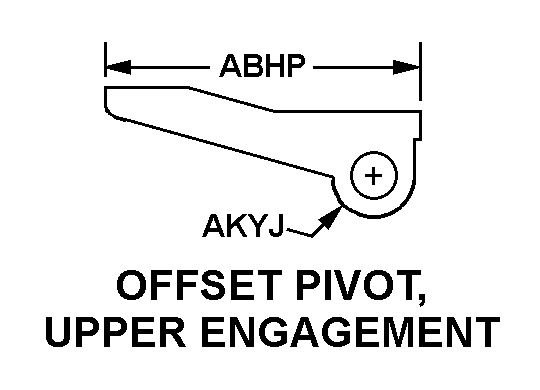

| STYLE DESIGNATOR | A20 OFFSET PIVOT, UPPER ENGAGEMENT |
| OVERALL LENGTH | 1.1760 INCHES MINIMUM AND 1.1865 INCHES MAXIMUM |
| PIVOT PIN HOLE DIAMETER | 0.221 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.770 INCHES MINIMUM AND 0.790 INCHES MAXIMUM |
| SPECIAL FEATURES | DEPTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:0.035 IN.MIN,0.045 IN.MAX;LENGTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:1.001 IN.MIN,1.004 IN.MAX;MATERIAL DOCUMENT AND CLASSIFICATION:STEEL COMP E52100 |
| III END ITEM IDENTIFICATION | STARTER,ENGINE,GAS TURBINE P/N 383242-1-8,383934-1-2,USAF TYPE STU-20/A34;U/O J79-15 |
| MANUFACTURERS CODE | 59364 |
| DESIGN CONTROL REFERENCE | 360293 |
