Product Details | SHOULDERED SHAFT
3040-00-864-1481 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 32232, 43239, 8915, 3040-00-864-1481, 00-864-1481, 3040008641481, 008641481
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 13 OCT 1967 | 00-864-1481 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-00-864-1481
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-864-1481
Technical Data | NSN 3040-00-864-1481
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 |
| FIRST END STYLE | 25 CROSS DRILLED AND EXTERNALLY THREADED |
| FIRST END DIAMETER | 1.3750 INCHES NOMINAL |
| FIRST END HOLE DIAMETER | 0.2030 INCHES NOMINAL |
| FIRST END DISTANCE FROM HOLE CENTER TO END | 0.155 INCHES NOMINAL |
| FIRST END EXTERNAL THREAD LENGTH | 0.687 INCHES NOMINAL |
| FIRST END HOLE DEPTH | ANY ACCEPTABLE |
| END SIMILARITY | NOT IDENTICAL |

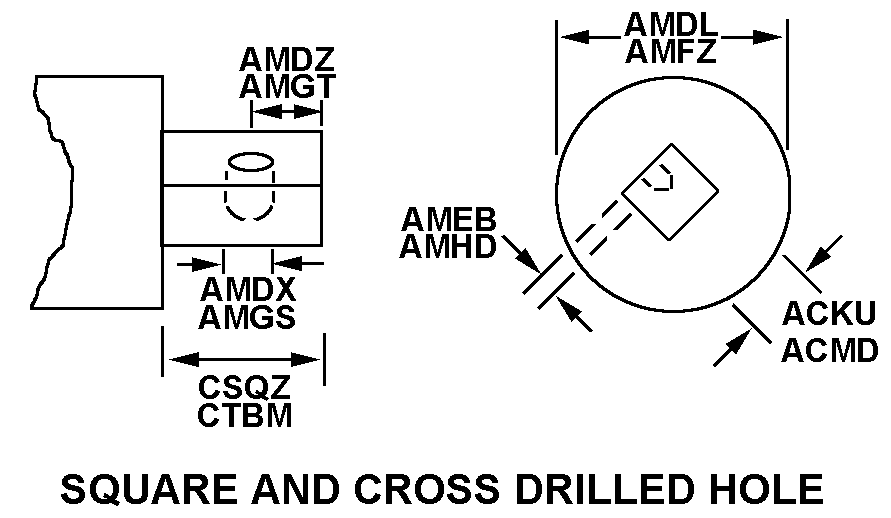

| SECOND END STYLE | 76 SQUARE AND CROSS DRILLED HOLE |
| SECOND END DIAMETER | 2.2500 INCHES NOMINAL |
| SECOND END WIDTH ACROSS FLATS | 2.250 INCHES NOMINAL |
| SECOND END HOLE DIAMETER | 0.7810 INCHES NOMINAL |
| SECOND END DISTANCE FROM HOLE CENTER TO END | 1.880 INCHES NOMINAL |
| SECOND END HOLE DEPTH | ANY ACCEPTABLE |
| SECOND END STEP LENGTH | 8.575 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 2.250 INCHES NOMINAL |
| OVERALL LENGTH | 15.200 INCHES NOMINAL |
| STEP QUANTITY | 5 |
