NSN 3040-00-846-0333 458207, 00-846-0333, 008460333
Product Details | STRAIGHT SHAFT
3040-00-846-0333 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: 458207, 3040-00-846-0333, 00-846-0333, 3040008460333, 008460333
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-846-0333 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 3040-00-846-0333
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-846-0333
Technical Data | NSN 3040-00-846-0333
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

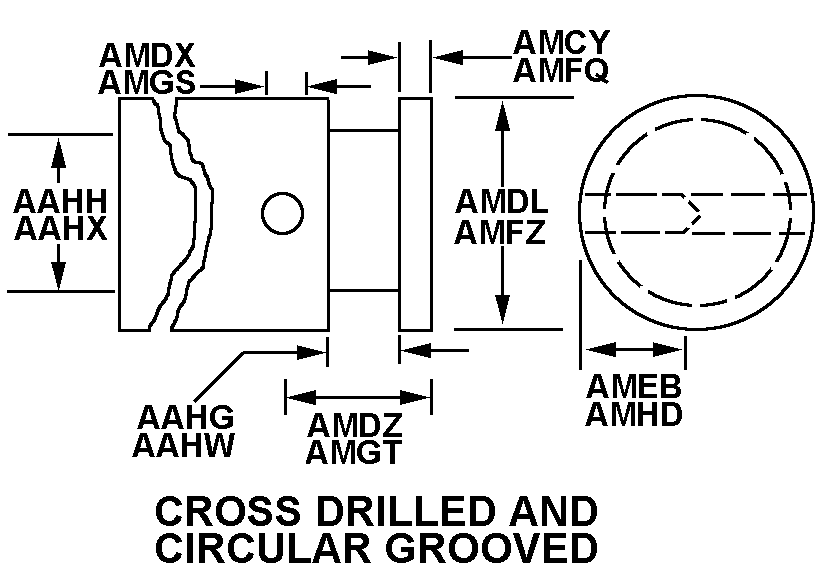

| FIRST END STYLE | 31 CROSS DRILLED AND CIRCULAR GROOVED |
| FIRST END GROOVE WIDTH | 0.0390 INCHES NOMINAL |
| FIRST END GROOVE DIAMETER | 0.4740 INCHES NOMINAL |
| FIRST END DISTANCE FROM END TO GROOVE | 2.281 INCHES NOMINAL |
| FIRST END DIAMETER | 0.5000 INCHES NOMINAL |
| FIRST END HOLE DIAMETER | 0.1850 INCHES NOMINAL |
| FIRST END DISTANCE FROM HOLE CENTER TO END | 0.500 INCHES NOMINAL |
| FIRST END HOLE DEPTH | ANY ACCEPTABLE |
| END SIMILARITY | NOT IDENTICAL |
| SECOND END STYLE | 13 SQUARE |
| SECOND END DIAMETER | 0.5000 INCHES NOMINAL |
| SECOND END WIDTH ACROSS FLATS | 0.313 INCHES NOMINAL |
| SECOND END STEP LENGTH | 1.500 INCHES NOMINAL |
| OVERALL LENGTH | 5.906 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3040-00-846-0333
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
