NSN 3040-00-845-1305 726777, 00-845-1305, 008451305
Product Details | SHOULDERED SHAFT
3040-00-845-1305 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 726777, 3040-00-845-1305, 00-845-1305, 3040008451305, 008451305
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 30 DEC 1966 | 00-845-1305 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-00-845-1305
Cross Reference | NSN 3040-00-845-1305
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 726777 | 35311 | AMERICAN STANDARD INC WESTINGHOUSE AIR BRAKE CO DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-845-1305
Technical Data | NSN 3040-00-845-1305
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FIRST END STYLE | 1 PLAIN |
| FIRST END DIAMETER | 1.5000 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

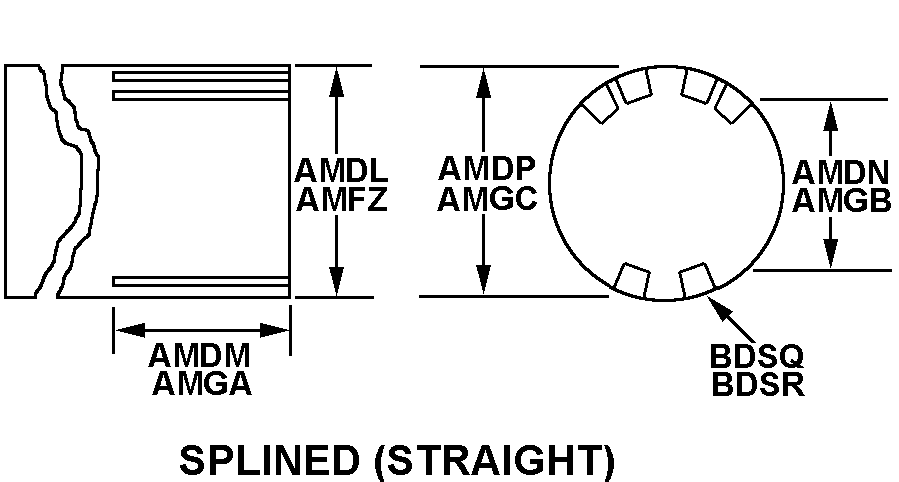

| SECOND END STYLE | 8 SPLINED |
| SECOND END DIAMETER | 1.0000 INCHES NOMINAL |
| SECOND END SPLINE LENGTH | 1.375 INCHES NOMINAL |
| SECOND END SPLINE MINOR DIAMETER | 0.8600 INCHES NOMINAL |
| SECOND END SPLINE MAJOR DIAMETER | 1.0000 INCHES NOMINAL |
| SECOND END SPLINE QUANTITY | 19 |
| LARGEST STEP DIAMETER | 1.500 INCHES NOMINAL |
| OVERALL LENGTH | 11.500 INCHES NOMINAL |
| STEP QUANTITY | 2 |
Restrictions/Controls & Freight Information | NSN 3040-00-845-1305
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019940 | AUTO TRANSMISSIONS R CLUTCHES |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
