NSN 3040-00-822-8630 216048, 00-822-8630, 008228630
Product Details | SHOULDERED SHAFT
3040-00-822-8630 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 216048, 3040-00-822-8630, 00-822-8630, 3040008228630, 008228630
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-822-8630 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-00-822-8630
Cross Reference | NSN 3040-00-822-8630
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 216048 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-822-8630
Technical Data | NSN 3040-00-822-8630
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303SE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7720 303SE MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE FINISH | 125.0 MICROINCHES |
| FIRST END STYLE | 5 CIRCULAR GROOVED |
| FIRST END GROOVE WIDTH | 0.0400 INCHES MINIMUM AND 0.0450 INCHES MAXIMUM |
| FIRST END GROOVE DIAMETER | 0.2100 INCHES MINIMUM AND 0.2200 INCHES MAXIMUM |
| FIRST END DISTANCE FROM END TO GROOVE | 0.1850 INCHES NOMINAL |
| FIRST END DIAMETER | 0.2454 INCHES MINIMUM AND 0.2492 INCHES MAXIMUM |
| END SIMILARITY | NOT IDENTICAL |

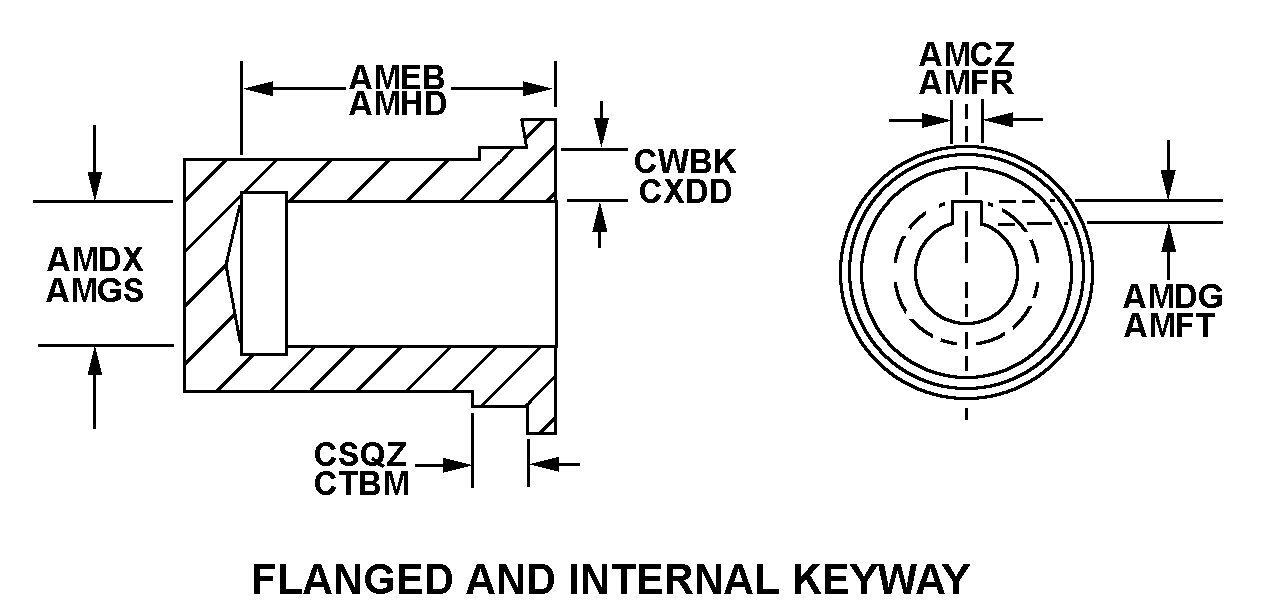

| SECOND END STYLE | 98 FLANGED AND INTERNAL KEYWAY |
| SECOND END KEYWAY WIDTH | 0.0500 INCHES NOMINAL |
| SECOND END KEYWAY DEPTH | 0.035 INCHES NOMINAL |
| SECOND END DIAMETER | 0.3300 INCHES NOMINAL |
| SECOND END HOLE DIAMETER | 0.2493 INCHES MINIMUM AND 0.2496 INCHES MAXIMUM |
| SECOND END HOLE DEPTH | 0.425 INCHES NOMINAL |
| SECOND END STEP LENGTH | 0.232 INCHES MINIMUM AND 0.240 INCHES MAXIMUM |
| SECOND END TAPER | 0.0000 PER FOOT IN INCHES |
| LARGEST STEP DIAMETER | 0.9680 INCHES MINIMUM AND 0.9685 INCHES MAXIMUM |
| OVERALL LENGTH | 1.024 INCHES NOMINAL |
| STEP QUANTITY | 3 |
Restrictions/Controls & Freight Information | NSN 3040-00-822-8630
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
