Product Details | STRAIGHT SHAFT
3040-00-821-2275 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: 8710629, 3040-00-821-2275, 00-821-2275, 3040008212275, 008212275
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-821-2275 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 3040-00-821-2275
Demand History | NSN 3040-00-821-2275
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-00-821-2275 | 2022-10-277 | 133 | DIBBS |
| 3040-00-821-2275 | 2020-10-293 | 85 | DIBBS |
| 3040-00-821-2275 | 2020-10-282 | 85 | DIBBS |
| 3040-00-821-2275 | 2020-08-217 | 53 | DIBBS |
| 3040-00-821-2275 | 2020-07-203 | 53 | DIBBS |
| 3040-00-821-2275 | 2020-02-41 | 55 | DIBBS |
| 3040-00-821-2275 | 2017-02-38 | 135 | DIBBS |
| 3040-00-821-2275 | 2009-04-104 | 641 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-00-821-2275
Related Products | NSN 3040-00-821-2275
Technical Data | NSN 3040-00-821-2275
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 6150 OR STEEL COMP 4145 OR STEEL COMP 8645 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624 FED SPEC ALL MATERIAL RESPONSES |
| SURFACE FINISH | 63.0 MICROINCHES |
| FIRST END STYLE | 1 PLAIN |
| FIRST END DIAMETER | 0.7450 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| END SIMILARITY | NOT IDENTICAL |

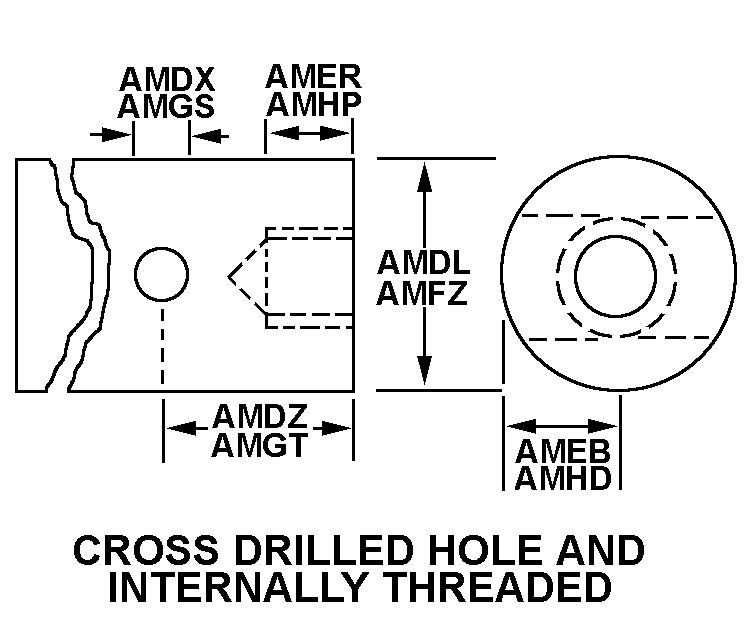

| SECOND END STYLE | 51 CROSS DRILLED HOLE AND INTERNALLY THREADED |
| SECOND END DIAMETER | 0.7450 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| SECOND END HOLE DIAMETER | 0.1400 INCHES NOMINAL |
| SECOND END DISTANCE FROM HOLE CENTER TO END | 1.000 INCHES NOMINAL |
| SECOND END HOLE DEPTH | 0.745 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| SECOND END INTERNAL THREAD LENGTH | 0.3125 INCHES NOMINAL |
| OVERALL LENGTH | 2.375 INCHES NOMINAL |
| SPECIAL FEATURES | CADMIUM PLATE REQUIRED,TYPE II,CLASS 2 PER SPEC. QQ-P-416;INTERNAL THREAD ON SECOND END IS0.250-28UNF-2B |
Restrictions/Controls & Freight Information | NSN 3040-00-821-2275
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
