NSN 3040-00-773-9369 100192, 00-773-9369, 007739369
Product Details | SHOULDERED SHAFT
3040-00-773-9369 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 100192, 3040-00-773-9369, 00-773-9369, 3040007739369, 007739369
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-773-9369 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-00-773-9369
Demand History | NSN 3040-00-773-9369
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-00-773-9369 | 2014-01-23 | 21 | DIBBS |
| 3040-00-773-9369 | 2009-01-30 | 9 | DIBBS |
Cross Reference | NSN 3040-00-773-9369
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100192 | 15434 | CUMMINS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-00-773-9369
Related Products | NSN 3040-00-773-9369
Technical Data | NSN 3040-00-773-9369
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FIRST END STYLE | 1 PLAIN |
| FIRST END DIAMETER | 0.5320 INCHES MINIMUM AND 0.5330 INCHES MAXIMUM |
| END SIMILARITY | NOT IDENTICAL |

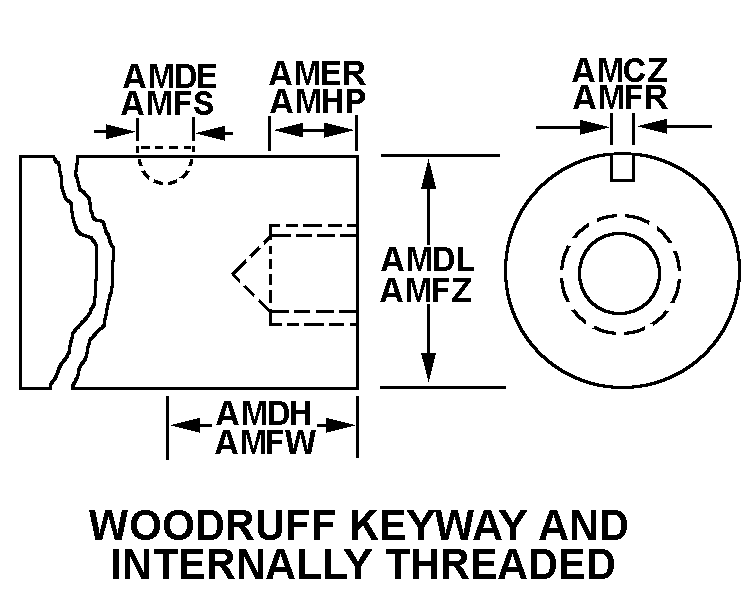

| SECOND END STYLE | 52 WOODRUFF KEYWAY AND INTERNALLY THREADED |
| SECOND END KEYWAY WIDTH | 0.1240 INCHES MINIMUM AND 0.1250 INCHES MAXIMUM |
| SECOND END EXTERNAL KEYWAY LENGTH | 0.375 INCHES NOMINAL |
| SECOND END DISTANCE FROM KEYWAY CENTER TO END | 0.310 INCHES MINIMUM AND 0.330 INCHES MAXIMUM |
| SECOND END DIAMETER | 0.6270 INCHES NOMINAL |
| SECOND END INTERNAL THREAD LENGTH | 0.625 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 0.749 INCHES MINIMUM AND 0.752 INCHES MAXIMUM |
| OVERALL LENGTH | 3.330 INCHES MINIMUM AND 3.370 INCHES MAXIMUM |
| STEP QUANTITY | 5 |
| MANUFACTURERS CODE | 15434 |
| DESIGN CONTROL REFERENCE | 100192 |
