NSN 3040-00-773-5831 A6000, 7735831, 14306
Product Details | BELL CRANK
3040-00-773-5831 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).20411900057Specialized Test and Handling Equipment, Nuclear Ordnance11950030Miscellaneous Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: A6000, 7735831, 14306, 3040-00-773-5831, 00-773-5831, 3040007735831, 007735831
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-773-5831 | 22321 ( BELL CRANK ) |
Drawings & Photos | NSN 3040-00-773-5831
Demand History | NSN 3040-00-773-5831
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7735831 | 2012-10-304 | 15 | DE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-773-5831
Technical Data | NSN 3040-00-773-5831
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

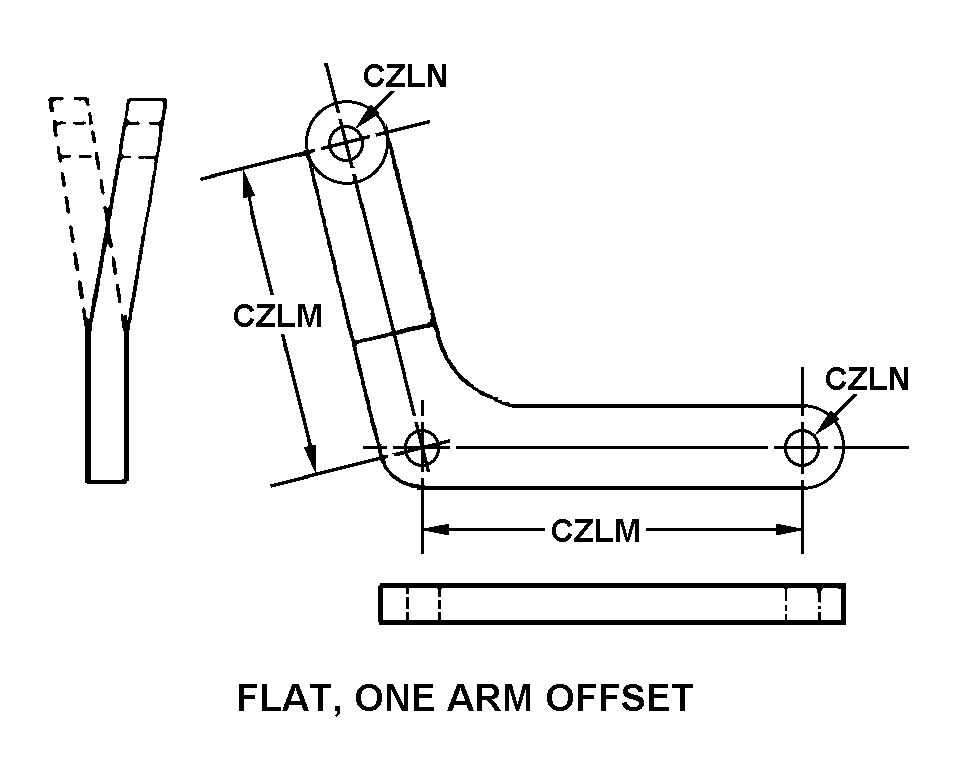

| STYLE DESIGNATOR | A18 FLAT, ONE ARM OFFSET |
| CENTER TO CENTER DISTANCE BETWEEN FULCRUM AND ARM END HOLE/SLOT/BALL | 2.000 INCHES NOMINAL 1ST END 3.000 INCHES NOMINAL 2ND END |
| END HOLE/BALL DIAMETER | 0.328 INCHES NOMINAL 1ST END 0.328 INCHES NOMINAL 2ND END |
| BORE LENGTH | 0.250 INCHES NOMINAL |
| BORE DIAMETER | 0.500 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| FSC APPLICATION DATA | PARKING BRAKE CABLE ON FRAME,TRAILER |
Restrictions/Controls & Freight Information | NSN 3040-00-773-5831
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116250 | TYPEWRITERS/TELETYPEWRITERS/PARTS |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 734 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
