NSN 3040-00-767-4709 5424543002, 542-4543-002, 00-767-4709
Product Details | SHAFT COLLAR
3040-00-767-4709 An item designed to be mounted around a shaft to limit axial movement of the shaft and/or its assembled parts. It is secured directly to the shaft by use of a setscrew(s), pin(s), or the like, which may be a part of the item of supply. A pilot hole drilled in or through the wall(s) for drilling and pinning at application may be considered a method of securing. Solid items have a bearing surface on one or both end(s) perpendicular to the axis. For items designed to be mounted around the extended hub portion of a mounted item on a shaft or clamp around a shaft, see CLAMP, HUB. See also BEARING, SLEEVE; BUSHING, SLEEVE; SPACER, SLEEVE; and COUPLING, SHAFT, RIGID.202304000005340000000
Part Alternates: 5424543002, 542-4543-002, 3040-00-767-4709, 00-767-4709, 3040007674709, 007674709
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 29 DEC 1967 | 00-767-4709 | 13743 ( COLLAR, SHAFT ) |
Drawings & Photos | NSN 3040-00-767-4709
Cross Reference | NSN 3040-00-767-4709
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 542-4543-002 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-767-4709
Technical Data | NSN 3040-00-767-4709
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, FED STD 66, AISI 303/SAE 30303 |
| SURFACE TREATMENT | PASSIVATED |

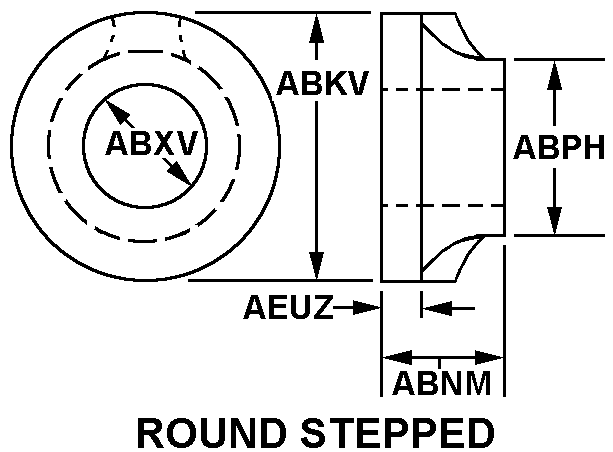

| STYLE DESIGNATOR | A10 ROUND STEPPED |
| OUTSIDE DIAMETER | 0.552 INCHES MINIMUM AND 0.572 INCHES MAXIMUM |
| THICKNESS | 0.521 INCHES MINIMUM AND 0.541 INCHES MAXIMUM |
| SMALL END DIAMETER | 0.343 INCHES NOMINAL |
| OVERALL LENGTH | 0.343 INCHES NOMINAL |
| BORE DIAMETER | 0.2180 INCHES MINIMUM AND 0.2200 INCHES MAXIMUM |
| LARGEST DIAMETER LENGTH | 0.200 INCHES NOMINAL |
| SECURING HOLE QUANTITY | 2 |
| ANGLE BETWEEN CENTERLINES OF SECURING HOLES IN DEG | 90.0 |
| SECURING HOLE TYPE AND LOCATION | UNTHREADED 1ST HOLE THREADED 2ND HOLE |
| HOLE DIAMETER AND LOCATION | 0.0620 INCHES MINIMUM 1ST HOLE AND 0.0650 INCHES MAXIMUM 1ST HOLE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | 2ND HOLE UNF |
| NOMINAL THREAD SIZE AND LOCATION | 0.138 INCHES 2ND HOLE |
| SPECIAL FEATURES | 0.188 IN. W 0.250 IN. DIA BORE RELIEF IN TWO PLACES 180.0 DEG APART |
Restrictions/Controls & Freight Information | NSN 3040-00-767-4709
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
