Product Details | PAWL
3040-00-722-9650 A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified).
Part Alternates: 7229650, 3040-00-722-9650, 00-722-9650, 3040007229650, 007229650
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-722-9650 | 22101 ( PAWL ) |
Drawings & Photos | NSN 3040-00-722-9650
Demand History | NSN 3040-00-722-9650
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-00-722-9650 | 2024-06-157 | 2 | DIBBS |
| 3040-00-722-9650 | 2024-06-157 | 4 | DIBBS |
| 3040-00-722-9650 | 2016-06-161 | 10 | DIBBS |
| 3040-00-722-9650 | 2016-05-129 | 10 | DIBBS |
| 3040-00-722-9650 | 2007-06-177 | 18 | DIBBS |
| 3040-00-722-9650 | 2007-06-156 | 10 | DIBBS |
| 3040-00-722-9650 | 2007-04-108 | 4 | DIBBS |
| 3040-00-722-9650 | 2006-03-83 | 4 | DIBBS |
| 3040-00-722-9650 | 2006-03-69 | 9 | DIBBS |
| 3040-00-722-9650 | 2006-02-58 | 4 | DIBBS |
Cross Reference | NSN 3040-00-722-9650
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7229650 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-00-722-9650
Related Products | NSN 3040-00-722-9650
Technical Data | NSN 3040-00-722-9650
| Characteristic | Specifications |
|---|---|

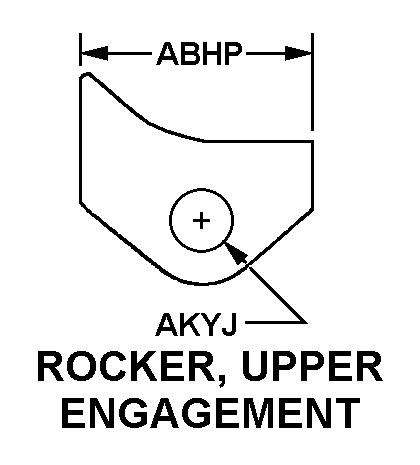

| STYLE DESIGNATOR | A17 ROCKER, UPPER ENGAGEMENT |
| OVERALL LENGTH | 0.524 INCHES MINIMUM AND 0.529 INCHES MAXIMUM |
| PIVOT PIN HOLE DIAMETER | 0.141 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.246 INCHES MINIMUM AND 0.248 INCHES MAXIMUM |
| SPECIAL FEATURES | DEPTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:0.180 IN.MIN,0.185 IN.MAX;LENGTH FROM PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:0.256 IN.MIN,0.259 IN.MAX;MATERIAL DOCUMENT AND CLASSIFICATION:STEEL,FED STD 66 COMP AISI 1053 TO AISI 1070;SURFACE FINISH:PHOSPHATE OR CADMIUM;FSC APPLICATION DATA:MORTAR,60MM |
| MANUFACTURERS CODE | 19206 |
| DESIGN CONTROL REFERENCE | 7229650 |
Restrictions/Controls & Freight Information | NSN 3040-00-722-9650
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
