NSN 3040-00-705-9520 107A105, 00-705-9520, 007059520
Product Details | BODY HUB
3040-00-705-9520 A cylindrical shoulder type item designed to be mounted and secured directly on a shaft or axle to position and retain on its body a gear(s), wheel(s), or the like. Items must have a method of securing directly to the shaft; however, a pilot hole drilled in or through the wall of the shoulder may be considered a method of securing; or by compressing the slotted hub end on the shaft by a hub clamp, which may or may not be included. Excludes BEARING, SLEEVE; BUSHING, SLEEVE; and COLLAR, SHAFT.20411900057Specialized Test and Handling Equipment, Nuclear Ordnance3020000030400042Miscellaneous Power Transmission Equipment
Part Alternates: 107A105, 3040-00-705-9520, 00-705-9520, 3040007059520, 007059520
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-705-9520 | 27782 ( HUB, BODY ) |
Drawings & Photos | NSN 3040-00-705-9520
Cross Reference | NSN 3040-00-705-9520
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 107A105 | 15196 | A R F PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-705-9520
Technical Data | NSN 3040-00-705-9520
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | ALLOY 2017 FED SPEC SINGLE MATERIAL RESPONSE |

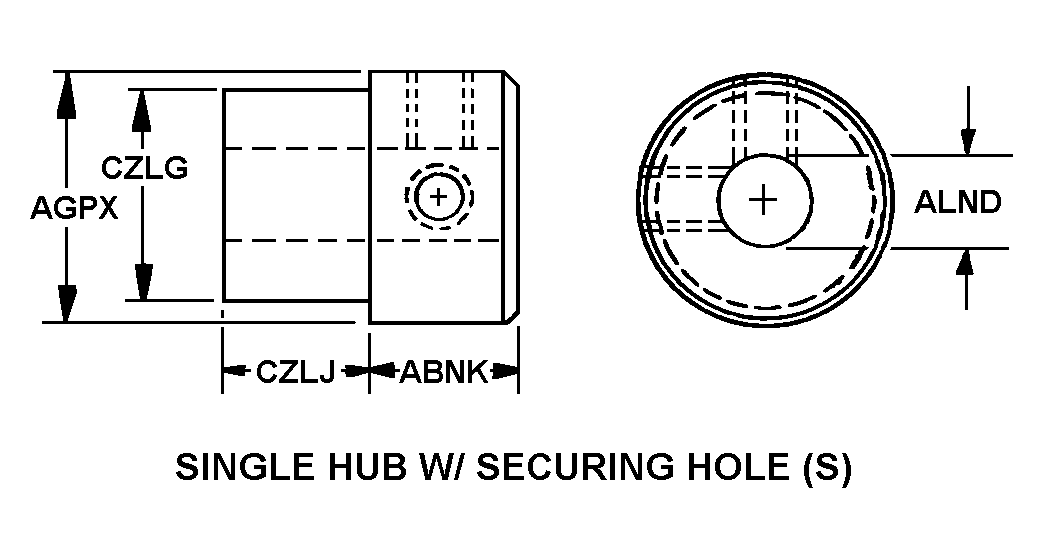

| STYLE DESIGNATOR | A1 SINGLE HUB W/SECURING HOLE(S |
| HUB INSIDE DIAMETER | 0.201 INCHES NOMINAL |
| FIRST END HUB OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| DISTANCE FROM FIRST END HUB TO SHOULDER | 0.113 INCHES NOMINAL |
| SHOULDER OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| SHOULDER WIDTH | 0.062 INCHES NOMINAL |
| SPECIAL FEATURES | O/A LENGTH:0.375 IN.NOM |
Restrictions/Controls & Freight Information | NSN 3040-00-705-9520
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018870 | AUTO HUBS I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-705-9520
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | T | Other Electronics Equipment |
| Weapons Systems/End Item or Homogeneous Group | TE | Tool Kits |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
