NSN 3040-00-659-5052 182-27-00-02, 182270002REV, 182-27-00-02REV
Product Details | HUB CLAMP
3040-00-659-5052 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Part Alternates: 182-27-00-02, 182270002REV, 182-27-00-02REV, 3040-00-659-5052, 00-659-5052, 3040006595052, 182270002, 006595052
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-659-5052 | 27781 ( CLAMP, HUB ) |
Drawings & Photos | NSN 3040-00-659-5052
Cross Reference | NSN 3040-00-659-5052
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-659-5052
Technical Data | NSN 3040-00-659-5052
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-764, TYPE 303, COND A-CANCELED |

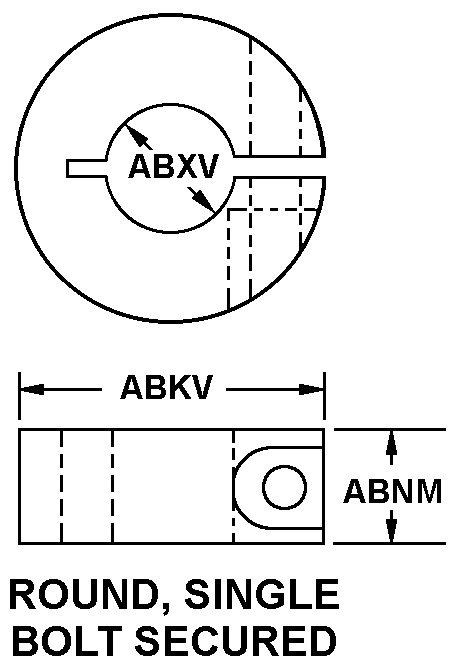

| STYLE DESIGNATOR | B3 ROUND, SINGLE BOLT SECURED |
| OUTSIDE DIAMETER | 1.375 INCHES NOMINAL |
| THICKNESS | 0.344 INCHES NOMINAL |
| BORE DIAMETER | 0.3910 INCHES NOMINAL |
| CLAMP SECURING HOLE STYLE | 3 THREADED |
| PLAIN HOLE DIAMETER | 0.1700 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 0.2810 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.4520 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| MANUFACTURERS CODE | 25549 |
| DESIGN CONTROL REFERENCE | 182-27-00-02 |
Restrictions/Controls & Freight Information | NSN 3040-00-659-5052
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 143050 | CLAMPS/GRIPS ANCHOR CASING PIPE |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-659-5052
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
