Product Details | STRAIGHT SHAFT
3040-00-624-8763 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: 006248763
Vehicular Equipment Components | Vehicular Power Transmission Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 00-624-8763 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 2520-00-624-8763
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-624-8763
Technical Data | NSN 3040-00-624-8763
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE FINISH | 16.0 MICROINCHES |
| FIRST END STYLE | 62 TWO CROSS DRILLED HOLES |
| FIRST END DIAMETER | 0.8750 INCHES NOMINAL |
| FIRST END HOLE DIAMETER | ANY ACCEPTABLE |
| FIRST END DISTANCE FROM HOLE CENTER TO END | 0.186 INCHES NOMINAL |
| FIRST END DISTANCE BETWEEN HOLE CENTERS | 0.875 INCHES NOMINAL |
| FIRST END ANGLE BETWEEN HOLES | 90.0 DEGREES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

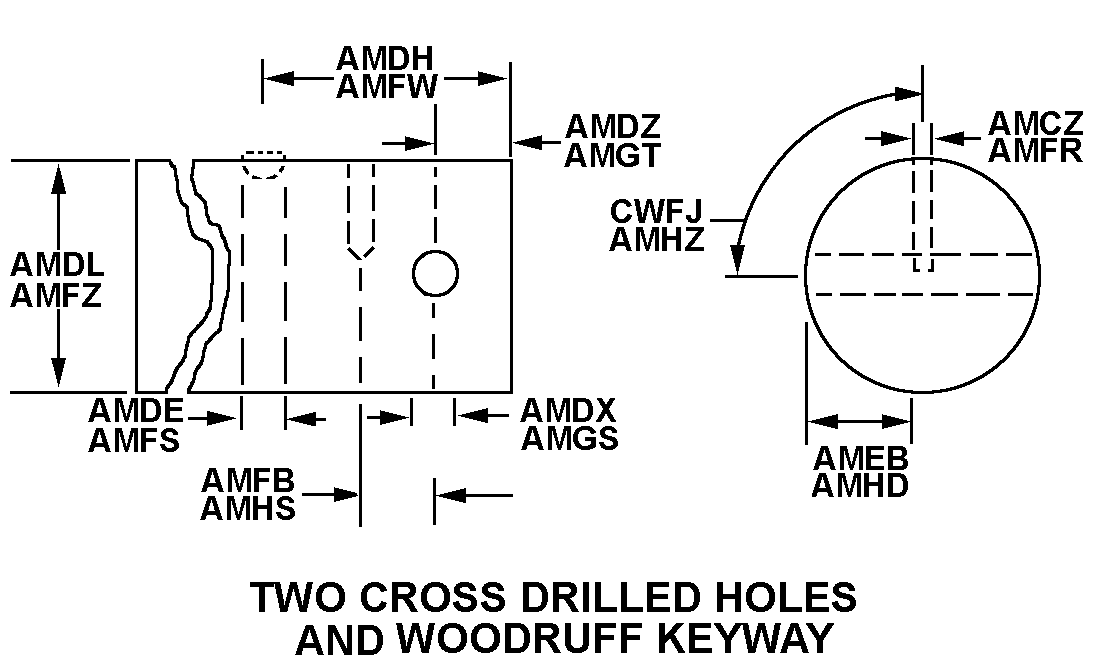

| SECOND END STYLE | 77 TWO CROSS DRILLED HOLES AND WOODRUFF KEYWAY |
| SECOND END KEYWAY WIDTH | 0.1560 INCHES NOMINAL |
| SECOND END EXTERNAL KEYWAY LENGTH | 0.625 INCHES NOMINAL |
| SECOND END DISTANCE FROM KEYWAY CENTER TO END | 2.594 INCHES NOMINAL |
| SECOND END DIAMETER | 0.8730 INCHES NOMINAL |
| SECOND END HOLE DIAMETER | ANY ACCEPTABLE |
| SECOND END ANGLE BETWEEN HOLES | 90.0 DEGREES NOMINAL |
| OVERALL LENGTH | 7.875 INCHES NOMINAL |
| SPECIAL FEATURES | 2 PERPENDICULAR LUBRICATION HOLES,COUNTERSUNK 0.406 IN. BOTH ENDS |
