NSN 3040-00-621-1143 4075075PC157, 4075-075PC157, 52150500
Product Details | SHOULDERED SHAFT
3040-00-621-1143 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 4075075PC157, 4075-075PC157, 52150500, 52-15-0500, 53150500, 53-15-0500, 53150500028, 53-15-05000-28, 5315050028, 53-15-0500-28, 3040-00-621-1143, 00-621-1143, 3040006211143, 006211143
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 27 FEB 1975 | 00-621-1143 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-00-621-1143
Cross Reference | NSN 3040-00-621-1143
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4075-075PC157 | 25203 | ROCKWELL INTL CORP FLOW CONTROL DIV |
| 52-15-0500 | 25203 | ROCKWELL INTL CORP FLOW CONTROL DIV |
| 53-15-0500 | 01293 | PRESSURE PRODUCTS INDUSTRIES INC |
| 53-15-0500-28 | 01293 | PRESSURE PRODUCTS INDUSTRIES INC |
| 53-15-05000-28 | 98482 | DURIRON CO INC FILTRATION SYSYEMS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-621-1143
Technical Data | NSN 3040-00-621-1143
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1018 |
| FIRST END STYLE | 1 PLAIN |
| FIRST END DIAMETER | 0.2500 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

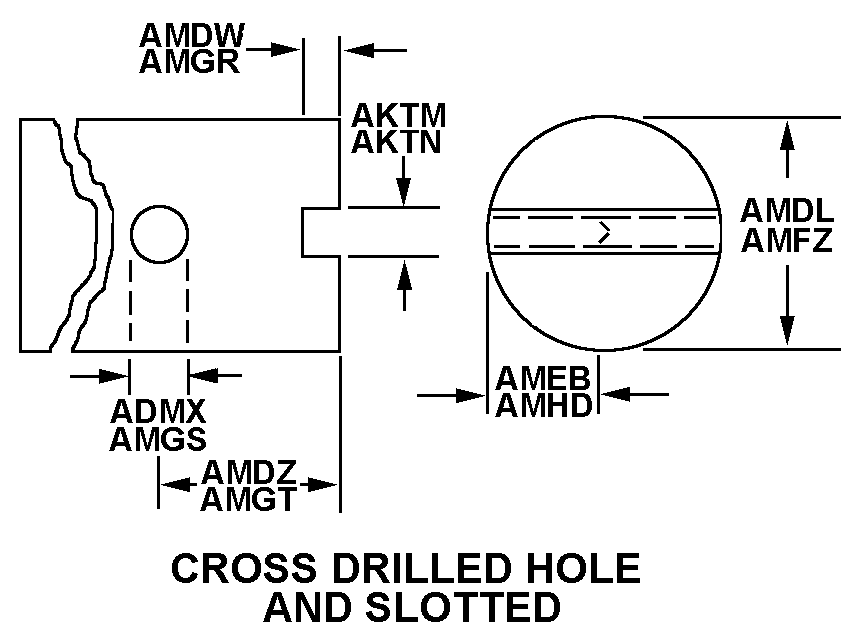

| SECOND END STYLE | 78 CROSS DRILLED HOLE AND SLOTTED |
| SECOND END DIAMETER | 0.9400 INCHES NOMINAL |
| SECOND END SLOT DEPTH | 0.660 INCHES NOMINAL |
| SECOND END SLOT WIDTH | 0.260 INCHES NOMINAL |
| SECOND END HOLE DIAMETER | 0.1660 INCHES NOMINAL |
| SECOND END DISTANCE FROM HOLE CENTER TO END | 0.380 INCHES NOMINAL |
| SECOND END HOLE DEPTH | 0.940 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 0.940 INCHES NOMINAL |
| OVERALL LENGTH | 3.060 INCHES NOMINAL |
| STEP QUANTITY | 5 |
Restrictions/Controls & Freight Information | NSN 3040-00-621-1143
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-621-1143
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
