NSN 3040-00-589-7028 CV159105471, CV15-910547-1, 00-589-7028
Product Details | RIGID CONNECTING LINK
3040-00-589-7028 An item of various cross-sectional shapes which may be of solid or hollow construction. It is specifically designed for attachment to a lever(s) and/or control(s) to actuate various remote mechanisms. It is one of the following: (1) A one-piece item with or without eyes and/or holes in each end which may have bushings or bearings pressed in the eyes; (2) A one-piece item with both ends processed for terminations, excluding threaded end(s); (3) A two-piece construction type item consisting of a body with both ends processed for terminations and a single end attachment; or (4) A three-piece construction type item consisting of a body and two end attachments. Excludes internal combustion engine type piston connecting rods; DRAG LINK, STEERING; LINK, ANCHOR, BRAKE SHOE; TIE ROD, STEERING; and TURNBUCKLE. For cylindrical shaped externally threaded items without end attachments, see ROD, THREADED END and STUD (as modified).
Part Alternates: CV159105471, CV15-910547-1, 3040-00-589-7028, 00-589-7028, 3040005897028, 005897028
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-589-7028 | 21988 ( CONNECTING LINK, RIGID ) |
Drawings & Photos | NSN 3040-00-589-7028
Cross Reference | NSN 3040-00-589-7028
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CV15-910547-1 | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-589-7028
Technical Data | NSN 3040-00-589-7028
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT |
| BODY CONSTRUCTION | TUBULAR |

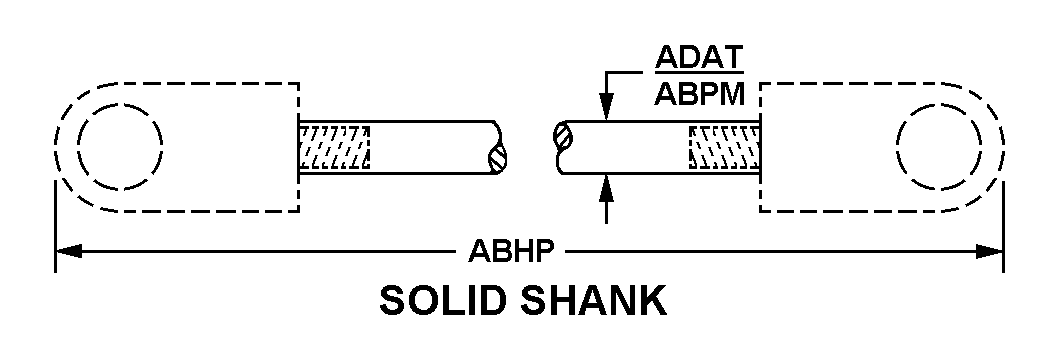

| LINK STYLE | A44 SOLID SHANK |
| OVERALL LENGTH | 5.125 INCHES NOMINAL |
| BODY WIDTH | 0.562 INCHES NOMINAL |
| END ATTACHMENT HOLE DIAMETER | 0.312 INCHES NOMINAL FIRST END 0.375 INCHES NOMINAL SECOND END |
| END ATTACHMENT LENGTH | 2.500 INCHES NOMINAL BOTH ENDS |
| END ATTACHMENT WIDTH | 0.375 INCHES NOMINAL FIRST END 0.812 INCHES NOMINAL SECOND END |
| SPECIAL FEATURES | EFFECTIVE LENGTH: 3.906 INCHES; LINK THREADING LENGTH AND SIZE: LEFT AND RIGHT HAND, 0.500 INCH, 0.375-24 UNF; END ATTACHMENT INFO: MATERIAL STEEL, SURFACE TREATMENT PAINT, HEIGHT 1.312 INCH 1ST END, 1.438 INCH 2ND END, INCLUDED LOCKNUT AND LOCKWIRE |
Restrictions/Controls & Freight Information | NSN 3040-00-589-7028
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095630 | LAP/CONNECTING LINKS/RINGS STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-589-7028
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
