Product Details | HUB CLAMP
3040-00-585-9971 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Part Alternates: 9079735, 9079737, 3040-00-585-9971, 00-585-9971, 3040005859971, 005859971
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 18 JUL 1966 | 00-585-9971 | 27781 ( CLAMP, HUB ) |
Drawings & Photos | NSN 3040-00-585-9971
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-00-585-9971
Related Products | NSN 3040-00-585-9971
Technical Data | NSN 3040-00-585-9971
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T4 |
| SURFACE TREATMENT | ANODIZED, MIL-A-8625, TYPE 2 |

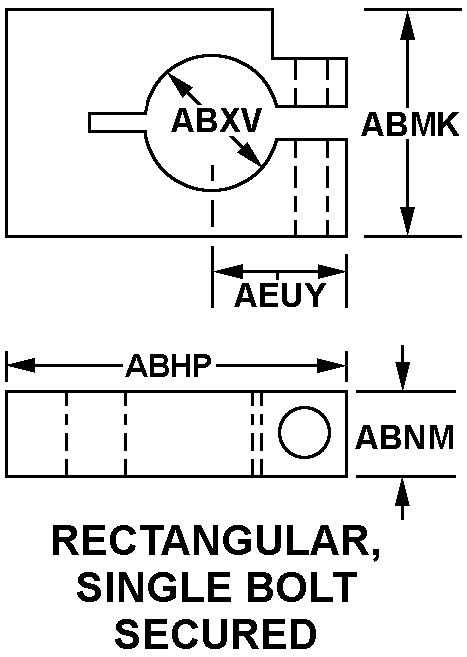

| STYLE DESIGNATOR | B10 RECTANGULAR, SINGLE BOLT SECURED |
| THICKNESS | 0.185 INCHES MINIMUM AND 0.189 INCHES MAXIMUM |
| OVERALL LENGTH | 0.609 INCHES MINIMUM AND 0.641 INCHES MAXIMUM |
| OVERALL WIDTH | 0.391 INCHES MINIMUM AND 0.422 INCHES MAXIMUM |
| BORE DIAMETER | 0.2500 INCHES MINIMUM AND 0.2510 INCHES MAXIMUM |
| DISTANCE FROM BORE CENTERLINE TO END | 0.307 INCHES MINIMUM AND 0.317 INCHES MAXIMUM |
| SURFACE FINISH AND LOCATION | 125.0 MICROINCHES BOTH BEARING FLATS 125.0 MICROINCHES INSIDE PERIPHERY |
| CLAMP SECURING HOLE STYLE | 2 THREADED |
| PLAIN HOLE DIAMETER | 0.1170 INCHES MINIMUM AND 0.1230 INCHES MAXIMUM |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| III FSC APPLICATION DATA | ANTENNA RECEIVER TRANSMITTER GROUP,MISSILE TRACKING |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 9079737 |
Restrictions/Controls & Freight Information | NSN 3040-00-585-9971
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
