Product Details | HUB CLAMP
3040-00-542-0494 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Part Alternates: SMB120298, 3040-00-542-0494, 00-542-0494, 3040005420494, 005420494
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-542-0494 | 27781 ( CLAMP, HUB ) |
Drawings & Photos | NSN 3040-00-542-0494
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-542-0494
Technical Data | NSN 3040-00-542-0494
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATED, MIL-F-14072, FINISH E300 |

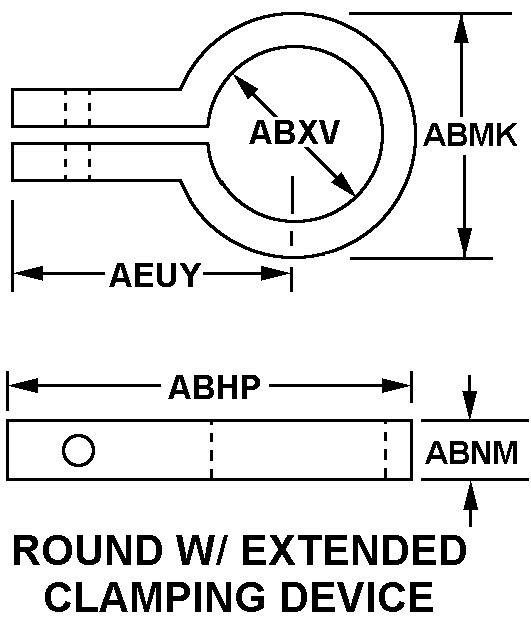

| STYLE DESIGNATOR | B1 ROUND W/EXTENDED CLAMPING DEVICE |
| THICKNESS | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 2.063 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| BORE DIAMETER | 1.5005 INCHES NOMINAL |
| DISTANCE FROM BORE CENTERLINE TO END | 1.188 INCHES NOMINAL |
| SURFACE FINISH AND LOCATION | 63 MICROINCHES INSIDE PERIPHERY 125 MICROINCHES OUTSIDE PERIPHERY |
| CLAMP SECURING HOLE STYLE | 2 THREADED |
| PLAIN HOLE DIAMETER | 0.1770 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
