NSN 3040-00-460-9064 671665, 00-460-9064, 004609064
Product Details | SHOULDERED SHAFT
3040-00-460-9064 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 671665, 3040-00-460-9064, 00-460-9064, 3040004609064, 004609064
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 14 JAN 1970 | 00-460-9064 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-00-460-9064
Cross Reference | NSN 3040-00-460-9064
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 671665 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-460-9064
Technical Data | NSN 3040-00-460-9064
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,CL 303,COND A FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE FINISH | 32.0 MICROINCHES |
| FIRST END STYLE | 4 FLATTED |
| FIRST END FLAT DEPTH | 0.0280 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM |
| FIRST END FLAT LENGTH | 0.5625 INCHES NOMINAL |
| FIRST END DIAMETER | 0.2480 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| END SIMILARITY | NOT IDENTICAL |

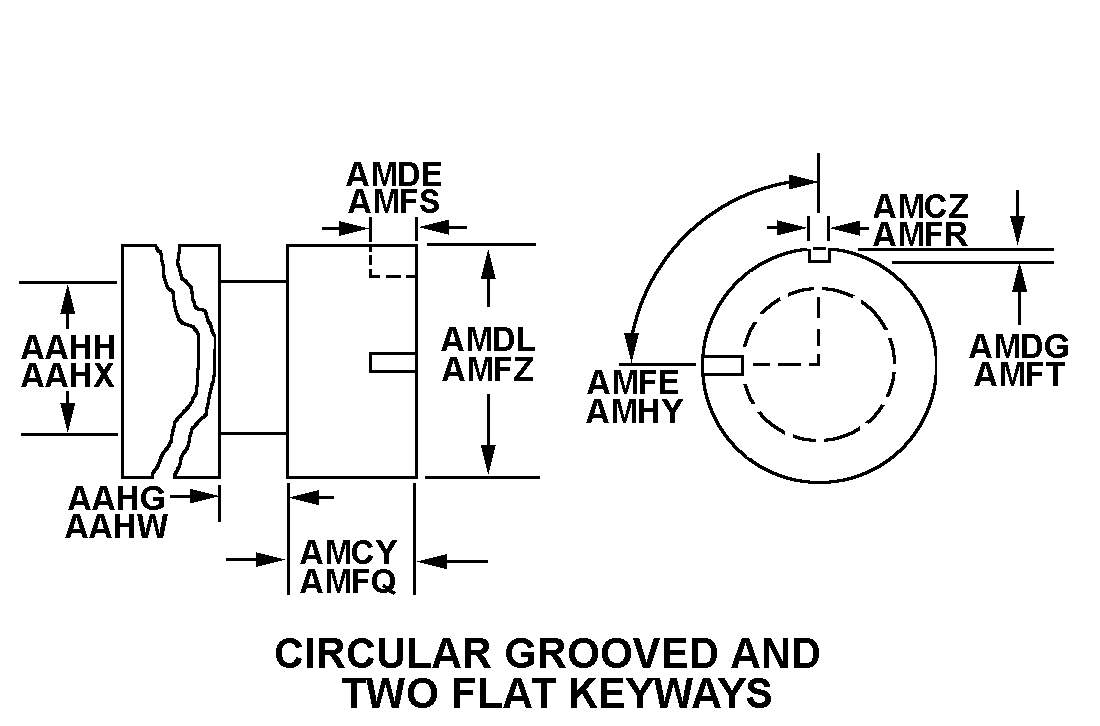

| SECOND END STYLE | 66 CIRCULAR GROOVED AND TWO FLAT KEYWAYS |
| SECOND END GROOVE WIDTH | 0.2700 INCHES MINIMUM AND 0.3200 INCHES MAXIMUM |
| SECOND END GROOVE DIAMETER | 0.1180 INCHES NOMINAL |
| SECOND END DISTANCE FROM END TO GROOVE | 0.876 INCHES NOMINAL |
| SECOND END EXTERNAL KEYWAY LENGTH | 0.250 INCHES NOMINAL |
| SECOND END KEYWAY DEPTH | 0.0077 INCHES MINIMUM AND 0.0127 INCHES MAXIMUM |
| SECOND END DIAMETER | 0.1245 INCHES MINIMUM AND 0.1247 INCHES MAXIMUM |
| SECOND END ANGLE BETWEEN KEYWAYS | 120.0 DEGREES NOMINAL |
| LARGEST STEP DIAMETER | 0.248 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| OVERALL LENGTH | 2.290 INCHES NOMINAL |
| STEP QUANTITY | 4 |
| MANUFACTURERS CODE | 06481 |
| DESIGN CONTROL REFERENCE | 671665 |
Restrictions/Controls & Freight Information | NSN 3040-00-460-9064
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
