NSN 3040-00-350-7606 003507606
Product Details | STRAIGHT SHAFT
3040-00-350-7606 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: 003507606
Engine Accessories | Miscellaneous Engine Accessories, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 00-350-7606 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 2990-00-350-7606
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-350-7606
Technical Data | NSN 3040-00-350-7606
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

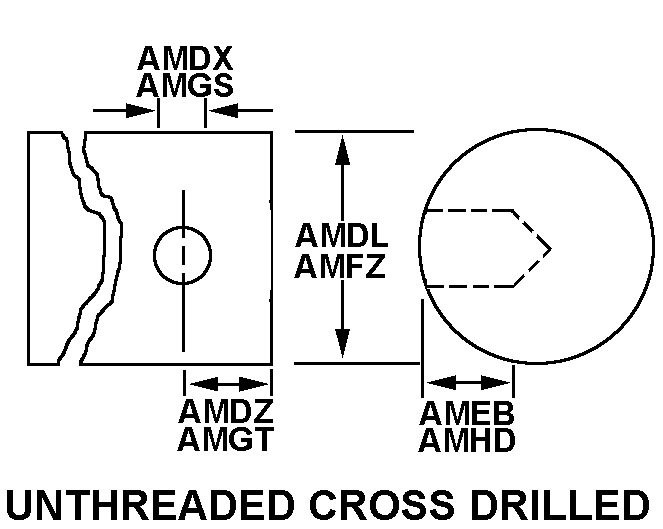

| FIRST END STYLE | 11 UNTHREADED CROSS DRILLED |
| FIRST END DIAMETER | 0.4360 INCHES NOMINAL |
| FIRST END HOLE DIAMETER | 0.1520 INCHES NOMINAL |
| FIRST END DISTANCE FROM HOLE CENTER TO END | 0.313 INCHES NOMINAL |
| FIRST END HOLE DEPTH | 0.281 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |
| SECOND END STYLE | 11 UNTHREADED CROSS DRILLED |
| SECOND END DIAMETER | 0.4360 INCHES NOMINAL |
| SECOND END HOLE DIAMETER | 0.1440 INCHES NOMINAL |
| SECOND END DISTANCE FROM HOLE CENTER TO END | 1.813 INCHES NOMINAL |
| SECOND END HOLE DEPTH | ANY ACCEPTABLE |
| OVERALL LENGTH | 3.781 INCHES NOMINAL |
| III FSC APPLICATION DATA | GOVERNOR GASOLINE ENGINE,NONAIRB ORNE |
| MANUFACTURERS CODE | 62265 |
| DESIGN CONTROL REFERENCE | G2781 |
Restrictions/Controls & Freight Information | NSN 3040-00-350-7606
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
