NSN 3040-00-332-0066 7972959, 00-332-0066, 003320066
Product Details | SPUR GEARSHAFT
3040-00-332-0066 A gearshaft with a single complement of spur gear teeth. For items with more than one complement of teeth, see GEARSHAFT (1), MULTIPLE GEARS.
Part Alternates: 7972959, 3040-00-332-0066, 00-332-0066, 3040003320066, 003320066
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-332-0066 | 60541 ( GEARSHAFT, SPUR ) |

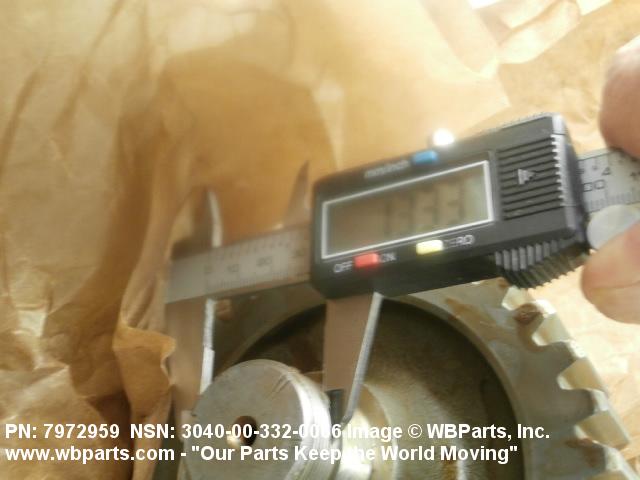

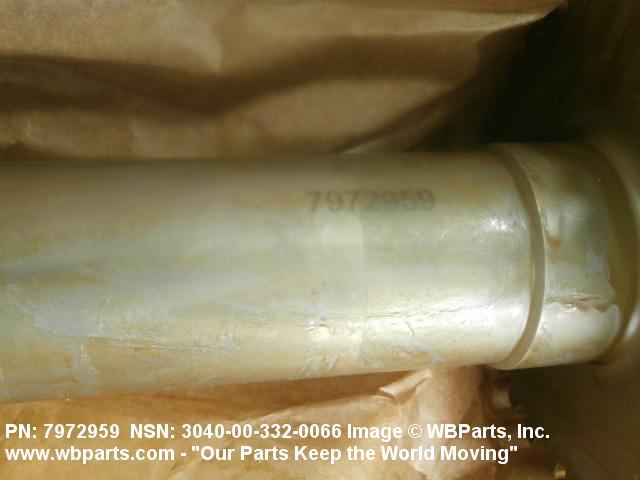

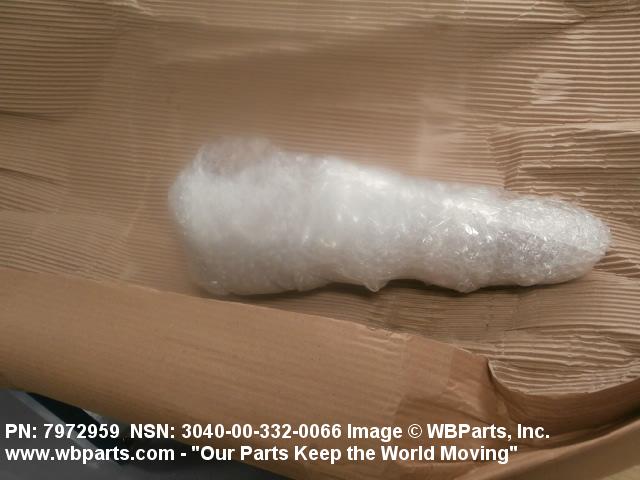

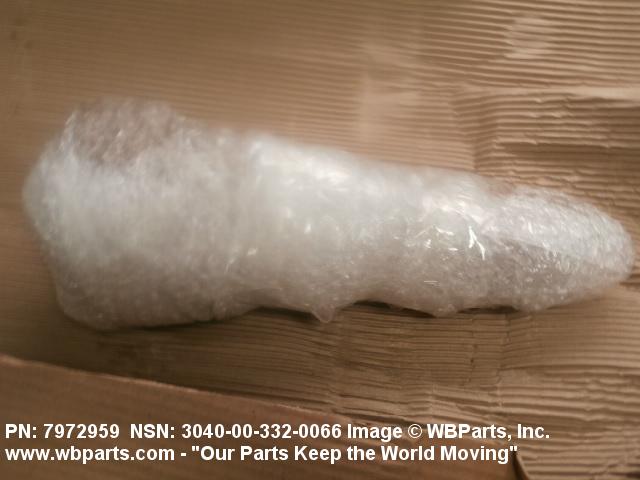

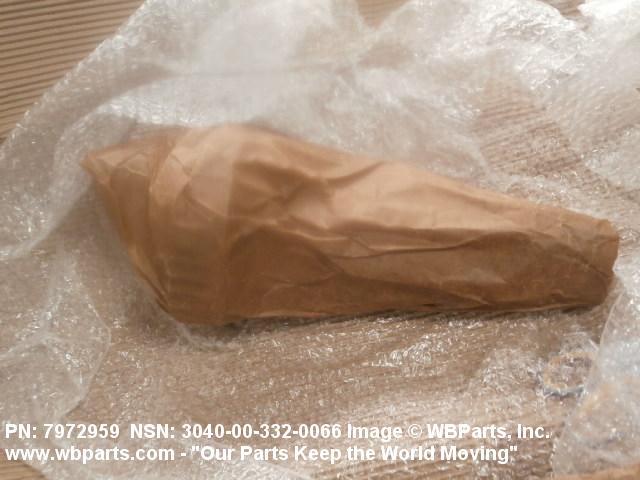

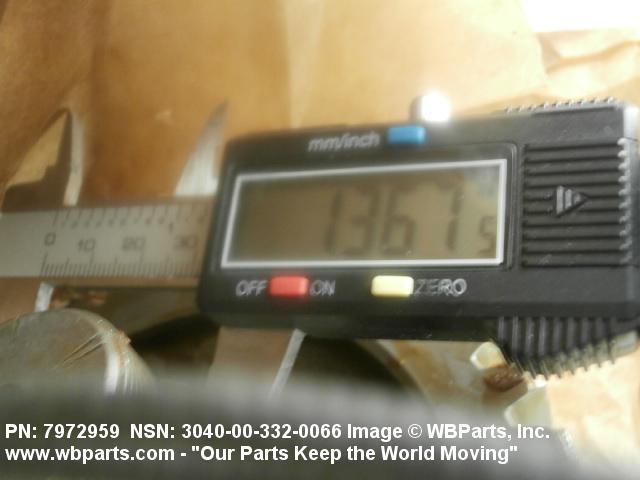

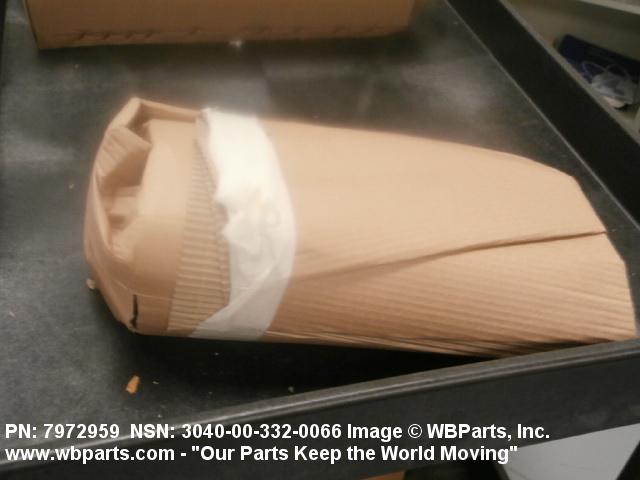

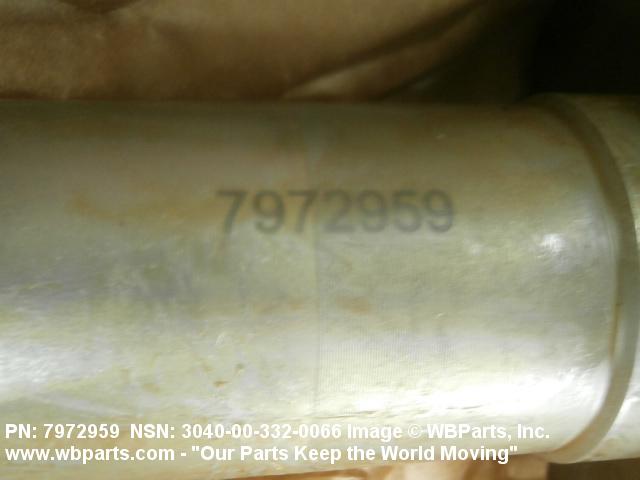

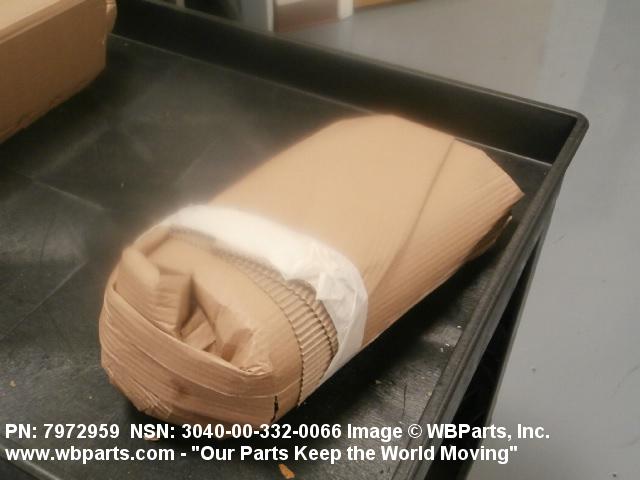

Drawings & Photos | NSN 3040-00-332-0066
Demand History | NSN 3040-00-332-0066
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-00-332-0066 | 2019-09-260 | 10 | DIBBS |
| 3040-00-332-0066 | 2017-06-177 | 2 | DIBBS |
| 3040-00-332-0066 | 2016-08-236 | 8 | DIBBS |
| 3040-00-332-0066 | 2016-02-32 | 7 | US |
| 3040-00-332-0066 | 2016-01-18 | 7 | US |
| 3040-00-332-0066 | 2016-01-14 | 7 | DIBBS |
| 3040-00-332-0066 | 2015-06-161 | 9 | United States |
| 3040-00-332-0066 | 2015-06-155 | 9 | DIBBS |
| 3040-00-332-0066 | 2014-05-136 | 3 | United States |
| 3040-00-332-0066 | 2014-01-30 | 1 | DIBBS |
| 3040-00-332-0066 | 2014-01-15 | 1 | DIBBS |
| 3040-00-332-0066 | 2014-01-15 | 3 | DIBBS |
| 3040-00-332-0066 | 2011-07-193 | 15 | US |
| 3040-00-332-0066 | 2011-06-174 | 14 | DIBBS |
| 3040-00-332-0066 | 2011-06-174 | 15 | DIBBS |
| 3040-00-332-0066 | 2010-10-290 | 11 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-00-332-0066
Related Products | NSN 3040-00-332-0066
Technical Data | NSN 3040-00-332-0066
| Characteristic | Specifications |
|---|---|
| SHAFT MATERIAL | STEEL COMP 8620 |
| GEAR MATERIAL | STEEL COMP 8620 AND STEEL COMP 8625 |
| PRESSURE ANGLE | 20.0000 DEGREES |
| TEETH QUANTITY | 32 |
| GEAR OUTSIDE DIAMETER | 5.583 INCHES NOMINAL |
| DIAMETRAL PITCH | 6/8 |

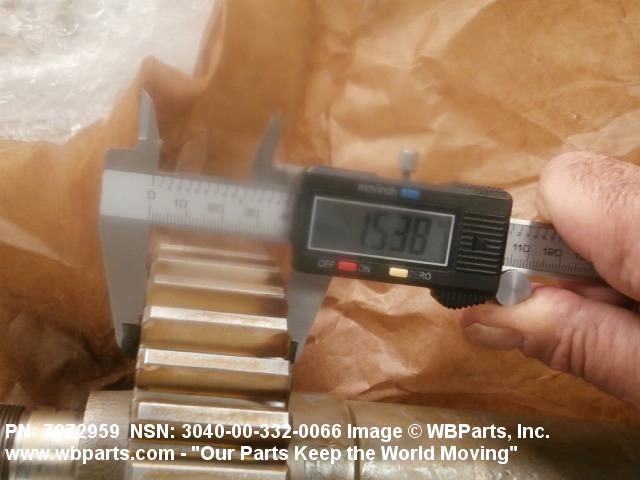

| FACE WIDTH | 1.531 INCHES NOMINAL |
| OVERALL LENGTH | 14.544 INCHES NOMINAL |
| SHAFT TYPE | SHOULDERED |
| SHAFT LARGEST DIAMETER | 2.133 INCHES MINIMUM AND 2.138 INCHES MAXIMUM |
| GEAR LOCATION ON SHAFT | OFF CENTER BETWEEN ENDS OF SHAFT |
| LONGER SHAFT SEGMENT LENGTH | 11.268 INCHES NOMINAL |
| SHAFT END TYPE | SPLINED INVOLUTE AND THREADED EXTERNAL |
| SHAFT END SIZE | 1.875 INCHES AND 1.375 INCHES |
| III END ITEM IDENTIFICATION | 2350-00-608-5603 |
Restrictions/Controls & Freight Information | NSN 3040-00-332-0066
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-332-0066
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
