Product Details | SHOULDERED SHAFT
3040-00-328-3746 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 241129, 3040-00-328-3746, 00-328-3746, 3040003283746, 003283746
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-328-3746 | 22914 ( SHAFT, SHOULDERED ) |

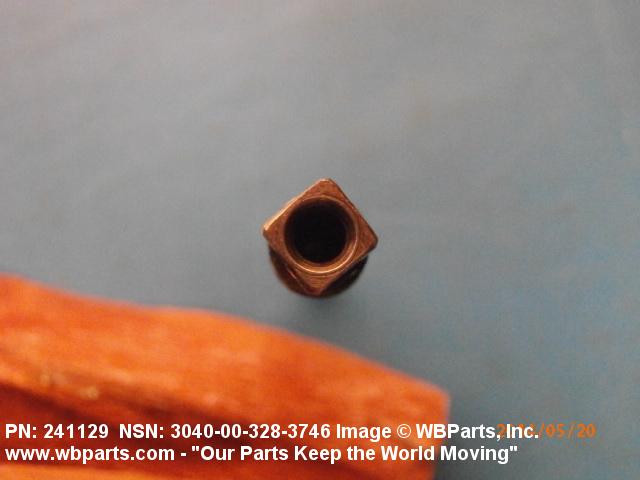

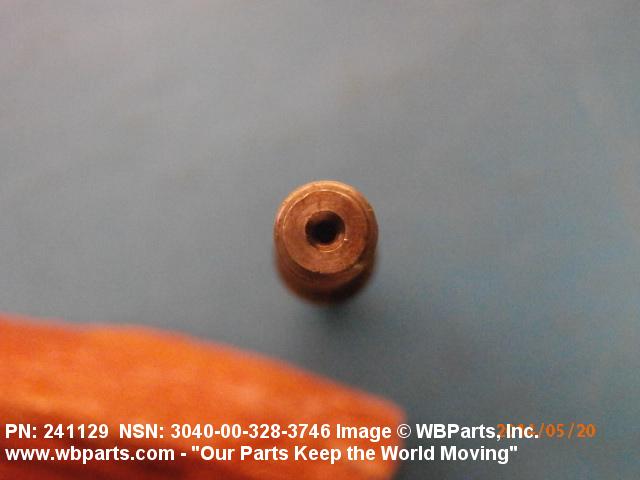

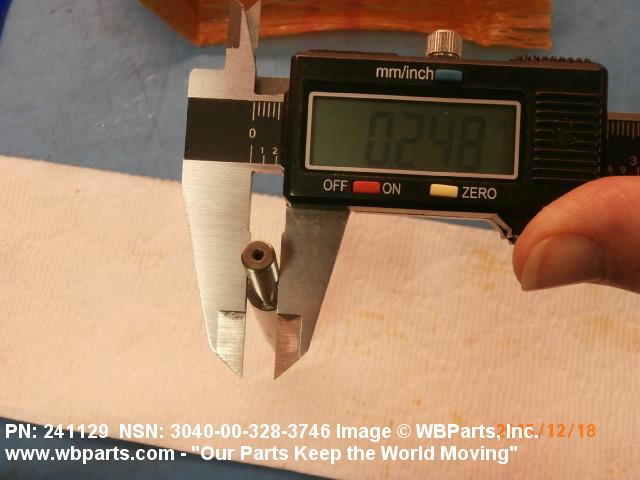

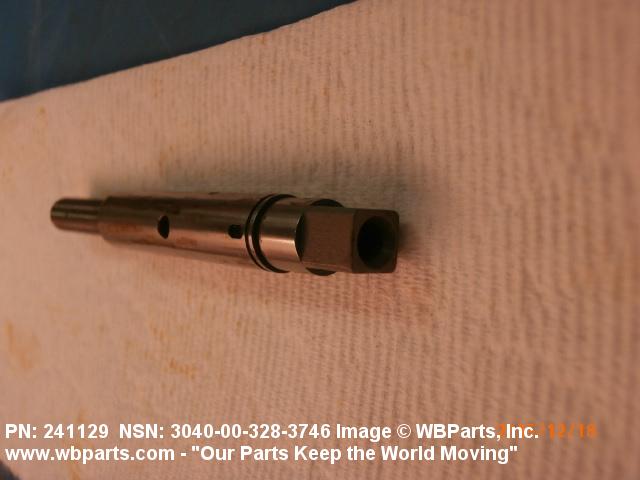

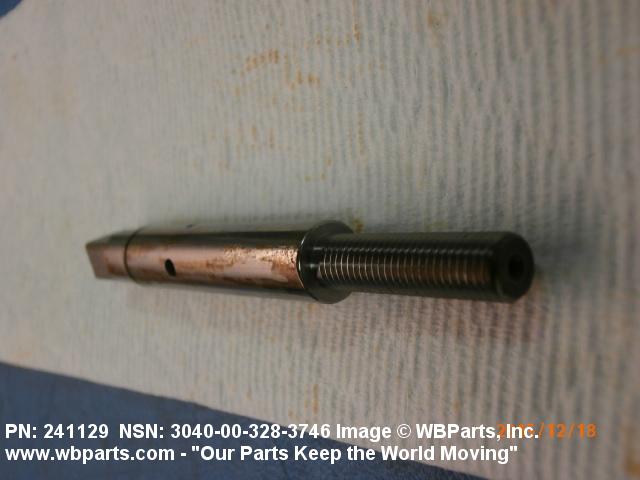

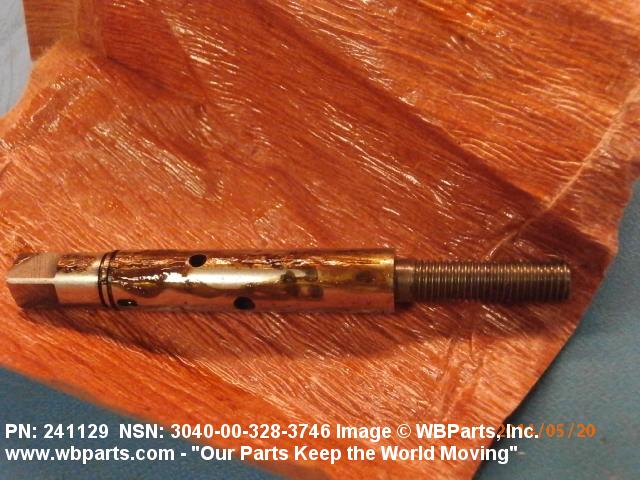

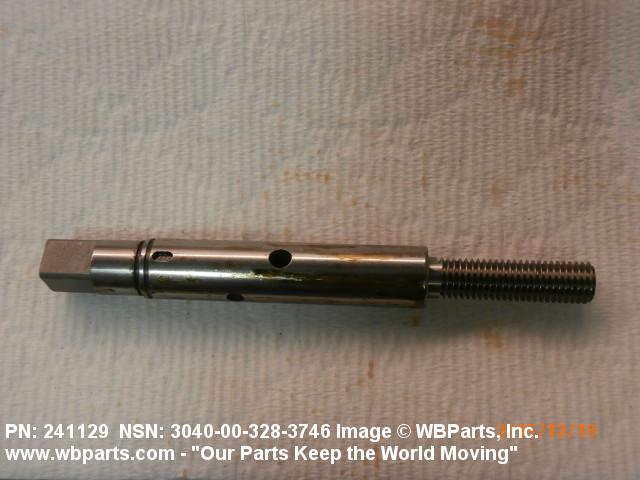

Drawings & Photos | NSN 3040-00-328-3746
Demand History | NSN 3040-00-328-3746
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 241129 | 2015-12-341 | 3 | United States |
| 241129 | 2014-05-128 | 1 | United States |
| 241129 | 2014-04-111 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-328-3746
Technical Data | NSN 3040-00-328-3746

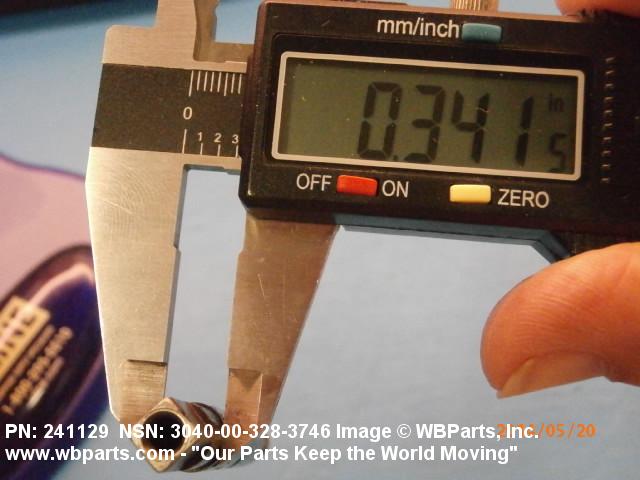

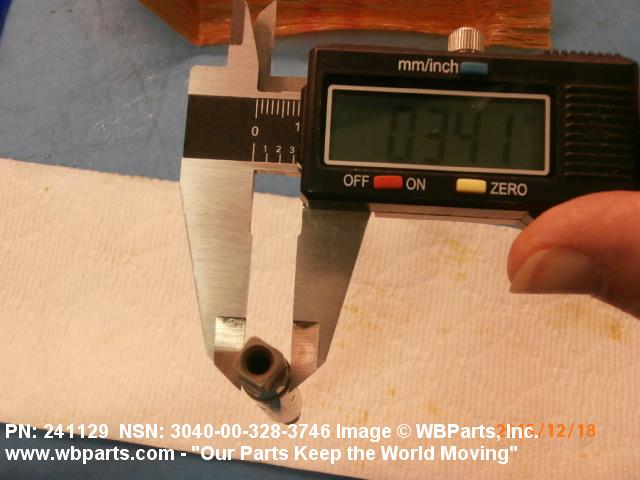

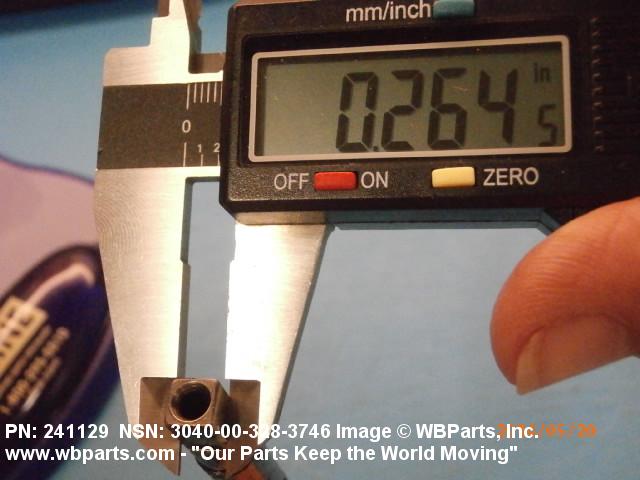

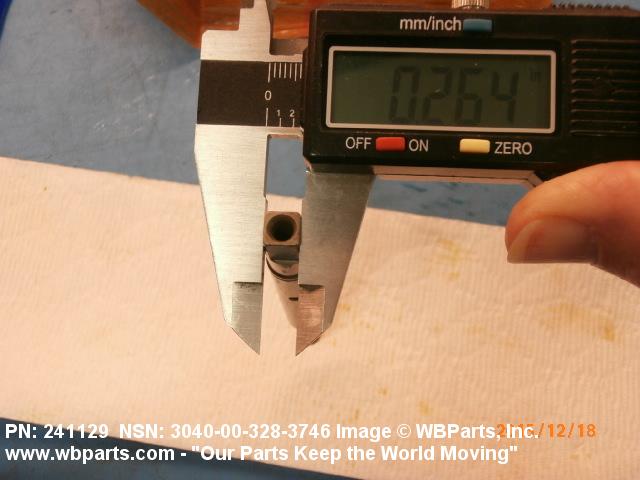

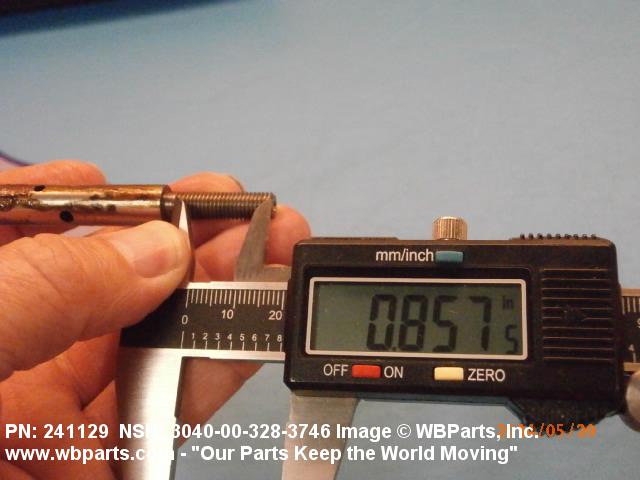

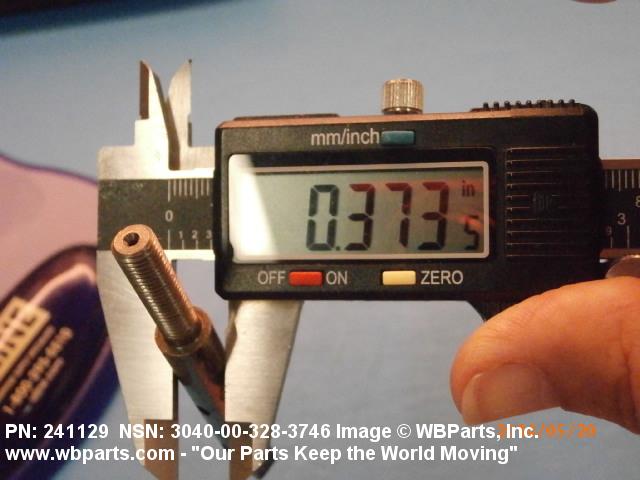

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FIRST END STYLE | 1 PLAIN |
| FIRST END GROOVE WIDTH | 0.0280 INCHES NOMINAL |
| FIRST END GROOVE DIAMETER | 0.3520 INCHES NOMINAL |
| FIRST END DIAMETER | 0.2660 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |
| SECOND END STYLE | 9 INTERNAL THREADED |
| SECOND END INTERNAL THREAD LENGTH | 0.843 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 0.375 INCHES NOMINAL |

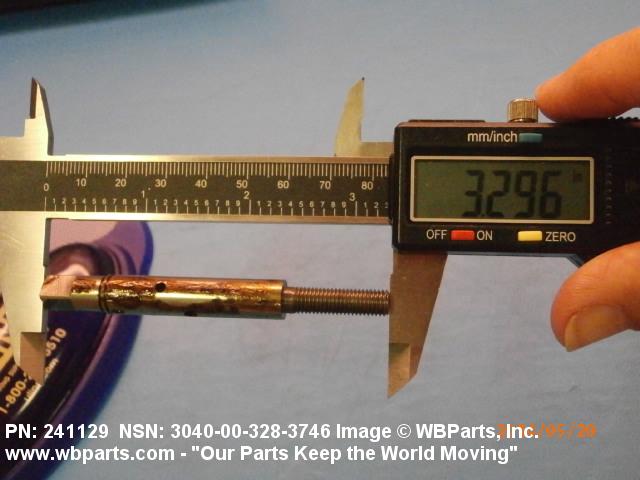

| OVERALL LENGTH | 3.296 INCHES NOMINAL |
| MANUFACTURERS CODE | 16004 |
| DESIGN CONTROL REFERENCE | 241129 |
