NSN 3040-00-257-0470 SCB42071, GB24522, GB2452-2
Product Details | SHAFT COLLAR
3040-00-257-0470 An item designed to be mounted around a shaft to limit axial movement of the shaft and/or its assembled parts. It is secured directly to the shaft by use of a setscrew(s), pin(s), or the like, which may be a part of the item of supply. A pilot hole drilled in or through the wall(s) for drilling and pinning at application may be considered a method of securing. Solid items have a bearing surface on one or both end(s) perpendicular to the axis. For items designed to be mounted around the extended hub portion of a mounted item on a shaft or clamp around a shaft, see CLAMP, HUB. See also BEARING, SLEEVE; BUSHING, SLEEVE; SPACER, SLEEVE; and COUPLING, SHAFT, RIGID.202304000005340000000
Part Alternates: SCB42071, GB24522, GB2452-2, 3040-00-257-0470, 00-257-0470, 3040002570470, 002570470
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-257-0470 | 13743 ( COLLAR, SHAFT ) |
Drawings & Photos | NSN 3040-00-257-0470
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-257-0470
Technical Data | NSN 3040-00-257-0470
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS, QQ-B-626, ALLOY 360, 1/2H |
| SURFACE TREATMENT | CHROME, MIL-F-14072, TYPE 1 |

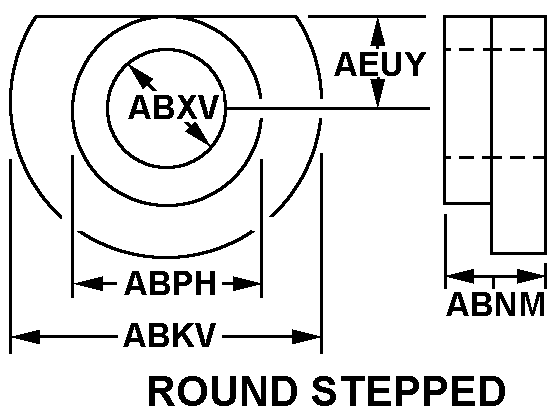

| STYLE DESIGNATOR | A9 ROUND STEPPED |
| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| THICKNESS | 0.250 INCHES NOMINAL |
| SMALL END DIAMETER | 0.594 INCHES NOMINAL |
| BORE DIAMETER | 0.2510 INCHES MINIMUM AND 0.2520 INCHES MAXIMUM |
| DISTANCE FROM BORE CENTERLINE TO END | 0.281 INCHES NOMINAL |
| LARGEST DIAMETER LENGTH | 0.052 INCHES MINIMUM AND 0.057 INCHES MAXIMUM |
| SECURING HOLE QUANTITY | 2 |
| ANGLE BETWEEN CENTERLINES OF SECURING HOLES IN DEG | 120.0 |
| SECURING HOLE TYPE AND LOCATION | THREADED SINGLE HOLE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | SINGLE HOLE UNC |
| NOMINAL THREAD SIZE AND LOCATION | 0.138 INCHES SINGLE HOLE |
