NSN 3040-00-249-6769 206P139F1, 00-249-6769, 002496769
Product Details | PAWL
3040-00-249-6769 A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified).
Part Alternates: 206P139F1, 3040-00-249-6769, 00-249-6769, 3040002496769, 002496769
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 05 MAR 1969 | 00-249-6769 | 22101 ( PAWL ) |
Drawings & Photos | NSN 3040-00-249-6769
Cross Reference | NSN 3040-00-249-6769
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 206P139F1 | 27315 | MORRIS MATERIAL HANDLING, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-249-6769
Technical Data | NSN 3040-00-249-6769
| Characteristic | Specifications |
|---|---|

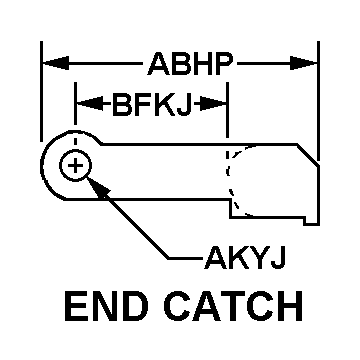

| STYLE DESIGNATOR | A14 END CATCH |
| OVERALL LENGTH | 6.062 INCHES NOMINAL |
| PIVOT PIN HOLE DIAMETER | 1.2808 INCHES MINIMUM AND 1.2818 INCHES MAXIMUM |
| LENGTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT | 5.062 INCHES NOMINAL |
| MATERIAL THICKNESS | 1.062 INCHES NOMINAL |
| SPECIAL FEATURES | DEPTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:0.625 IN.NOM;MATERIAL DOCUMENT AND CLASSIFICATION:STEEL COMP 1035 |
| MANUFACTURERS CODE | 27315 |
| DESIGN CONTROL REFERENCE | 206P139F1 |
