NSN 3040-00-169-7348 A51C325091, A51C32509-1, 00-169-7348
Product Details | RIGID CONNECTING LINK
3040-00-169-7348 An item of various cross-sectional shapes which may be of solid or hollow construction. It is specifically designed for attachment to a lever(s) and/or control(s) to actuate various remote mechanisms. It is one of the following: (1) A one-piece item with or without eyes and/or holes in each end which may have bushings or bearings pressed in the eyes; (2) A one-piece item with both ends processed for terminations, excluding threaded end(s); (3) A two-piece construction type item consisting of a body with both ends processed for terminations and a single end attachment; or (4) A three-piece construction type item consisting of a body and two end attachments. Excludes internal combustion engine type piston connecting rods; DRAG LINK, STEERING; LINK, ANCHOR, BRAKE SHOE; TIE ROD, STEERING; and TURNBUCKLE. For cylindrical shaped externally threaded items without end attachments, see ROD, THREADED END and STUD (as modified).
Part Alternates: A51C325091, A51C32509-1, 3040-00-169-7348, 00-169-7348, 3040001697348, 001697348
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 25 AUG 1972 | 00-169-7348 | 21988 ( CONNECTING LINK, RIGID ) |
Drawings & Photos | NSN 3040-00-169-7348
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-169-7348
Technical Data | NSN 3040-00-169-7348
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-A-22771, ALLOY 7075 T73 MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| BODY CONSTRUCTION | SOLID |

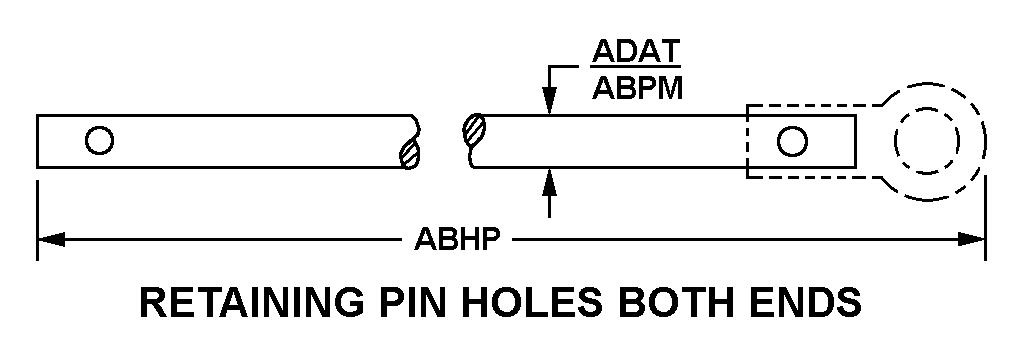

| LINK STYLE | A29 RETAINING PIN HOLES BOTH ENDS |
| OVERALL LENGTH | 5.500 INCHES NOMINAL |
| BODY WIDTH | 0.625 INCHES NOMINAL |
| END ATTACHMENT STYLE | B1 EYE FIRST END |
| END ATTACHMENT WIDTH | 0.219 INCHES MINIMUM AND 0.224 INCHES MAXIMUM FIRST END |
| SPECIAL FEATURES | SURFACE TREATMENT: MIL-A-8625 TY2 CL1; EFFECTIVE LENGTH: 4.487 INCHES; END ATTACHMENT INFO: DIAMETER 1.050 INCHES |
| MANUFACTURERS CODE | 61174 |
| DESIGN CONTROL REFERENCE | A51C32509-1 |
Restrictions/Controls & Freight Information | NSN 3040-00-169-7348
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095630 | LAP/CONNECTING LINKS/RINGS STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
