Product Details | STRAIGHT SHAFT
3040-00-164-9120 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: 1294259, 1-294259, 2942591, 294259-1, 3040-00-164-9120, 00-164-9120, 3040001649120, 001649120
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 00-164-9120 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 3040-00-164-9120
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-164-9120
Technical Data | NSN 3040-00-164-9120
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1045 |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE |

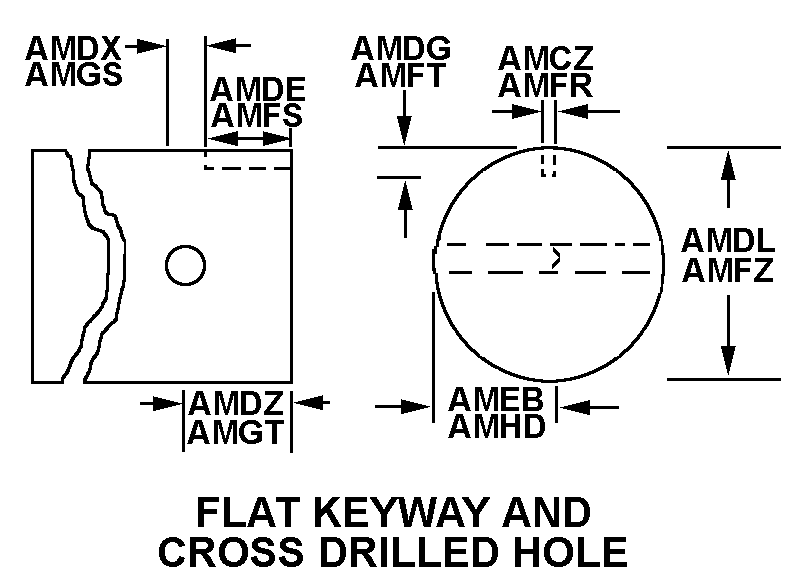

| FIRST END STYLE | 50 FLAT KEYWAY AND CROSS DRILLED HOLE |
| FIRST END KEYWAY WIDTH | 1.1250 INCHES NOMINAL |
| FIRST END EXTERNAL KEYWAY LENGTH | 2.875 INCHES NOMINAL |
| FIRST END KEYWAY DEPTH | 0.563 INCHES NOMINAL |
| FIRST END DIAMETER | 3.5000 INCHES NOMINAL |
| FIRST END HOLE DIAMETER | 1.0630 INCHES NOMINAL |
| FIRST END DISTANCE FROM HOLE CENTER TO END | 1.375 INCHES NOMINAL |
| FIRST END HOLE DEPTH | ANY ACCEPTABLE |
| END SIMILARITY | IDENTICAL |
| OVERALL LENGTH | 14.750 INCHES NOMINAL |
| SPECIAL FEATURES | 1ST END FLATTED 4.125 IN. LG,3.000 IN. W,90 DEG ANGLE BETWEEN FLATS AND KEYWAYS; HOLES DRILLED PERPENDICULAR TO SURFACES OF FLATS; 2 PRESSURE LUBRICATION HOLE DRILLED LONGITUDINALLY 0.438 IN. DIA,7.875 IN. DEEP,7.375 IN. FROM END |
