Product Details | SHOULDERED SHAFT
3040-00-164-5302 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 4B5806, 3040-00-164-5302, 00-164-5302, 3040001645302, 001645302
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1961 | 00-164-5302 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-00-164-5302
Cross Reference | NSN 3040-00-164-5302
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4B5806 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-164-5302
Technical Data | NSN 3040-00-164-5302
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FIRST END STYLE | 6 WOODRUFF KEYWAY |
| FIRST END KEYWAY WIDTH | 0.2500 INCHES NOMINAL |
| FIRST END EXTERNAL KEYWAY LENGTH | 1.000 INCHES NOMINAL |
| FIRST END DISTANCE FROM KEYWAY CENTER TO END | 2.000 INCHES NOMINAL |
| FIRST END DIAMETER | 1.0000 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

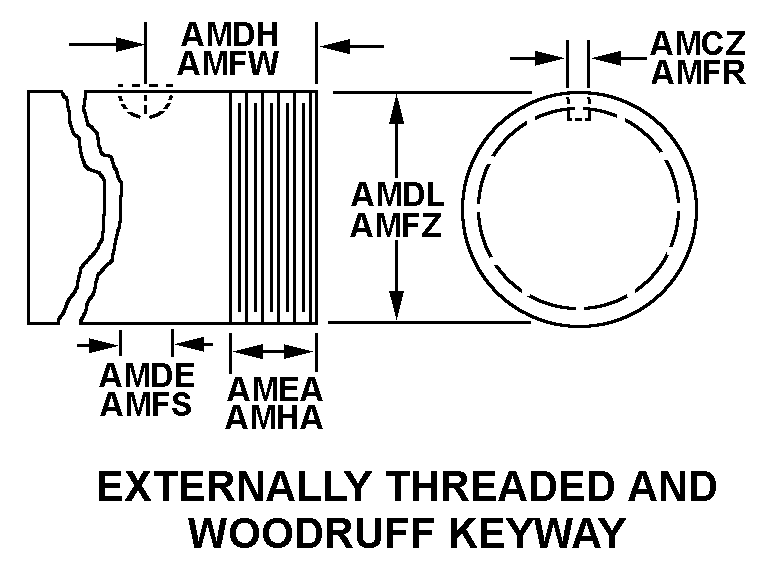

| SECOND END STYLE | 48 EXTERNALLY THREADED AND WOODRUFF KEYWAY |
| SECOND END KEYWAY WIDTH | 0.2500 INCHES NOMINAL |
| SECOND END EXTERNAL KEYWAY LENGTH | 1.000 INCHES NOMINAL |
| SECOND END DISTANCE FROM KEYWAY CENTER TO END | 1.500 INCHES NOMINAL |
| SECOND END DIAMETER | 0.6250 INCHES NOMINAL |
| SECOND END EXTERNAL THREAD LENGTH | 0.625 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 1.000 INCHES NOMINAL |
| OVERALL LENGTH | 7.250 INCHES NOMINAL |
| STEP QUANTITY | 2 |
| SPECIAL FEATURES | SECOND END INCLUDES TAPER |
