NSN 3040-00-110-5184 2559808, 00-110-5184, 001105184
Product Details | SHOULDERED SHAFT
3040-00-110-5184 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 2559808, 3040-00-110-5184, 00-110-5184, 3040001105184, 001105184
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 09 AUG 1968 | 00-110-5184 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-00-110-5184
Demand History | NSN 3040-00-110-5184
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-00-110-5184 | 2013-12-360 | 5 | DIBBS |
| 3040-00-110-5184 | 2013-12-344 | 5 | DIBBS |
| 3040-00-110-5184 | 2013-09-258 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-110-5184
Technical Data | NSN 3040-00-110-5184
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-633 FED SPEC SINGLE MATERIAL RESPONSE |
| FIRST END STYLE | 1 PLAIN |
| FIRST END DIAMETER | 1.0000 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

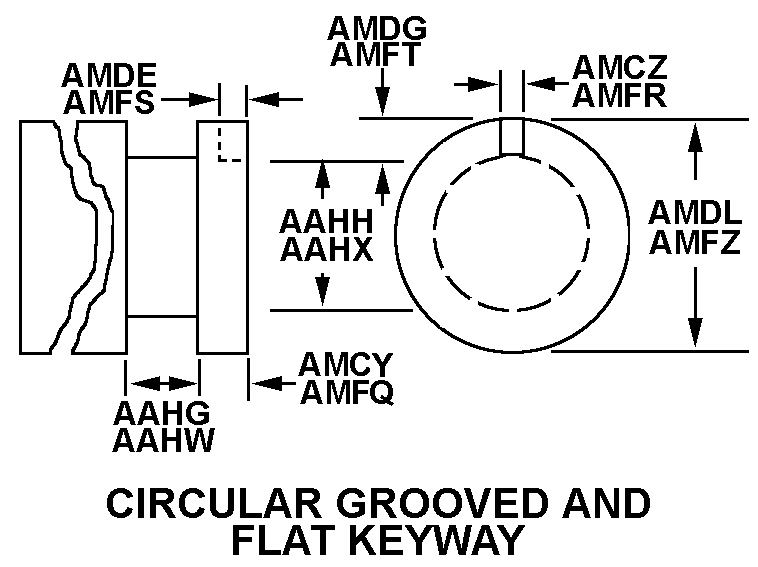

| SECOND END STYLE | 35 CIRCULAR GROOVED AND FLAT KEYWAY |
| SECOND END GROOVE WIDTH | 0.0460 INCHES NOMINAL |
| SECOND END GROOVE DIAMETER | 0.9400 INCHES NOMINAL |
| SECOND END DISTANCE FROM END TO GROOVE | 0.1250 INCHES NOMINAL |
| SECOND END KEYWAY WIDTH | 0.2500 INCHES NOMINAL |
| SECOND END EXTERNAL KEYWAY LENGTH | 1.2500 INCHES NOMINAL |
| SECOND END KEYWAY DEPTH | 0.1400 INCHES NOMINAL |
| SECOND END DIAMETER | 1.0000 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 1.435 INCHES NOMINAL |
| OVERALL LENGTH | 8.438 INCHES NOMINAL |
| STEP QUANTITY | 3 |
| SPECIAL FEATURES | LARGEST DIA HAS KEYWAY AT EACH END,0.312 IN.WIDE BY 0.176 IN.DP |
Restrictions/Controls & Freight Information | NSN 3040-00-110-5184
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-110-5184
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
