NSN 3040-00-020-9504 5466786002, 546-6786-002, 00-020-9504
Product Details | EXTENSION SHAFT
3040-00-020-9504 An item consisting of a length of rigid shafting designed to be coupled to the shaft of items such as variable capacitors, switches, hand cranks and the like. It is specifically designed to increase the length of the original shaft and may also effect a change in the shaft diameter. Includes coupling(s) or has processed end(s) to facilitate the attachment of a coupling device. May have provision for electrically insulating the extension shaft from the other shaft.
Part Alternates: 5466786002, 546-6786-002, 3040-00-020-9504, 00-020-9504, 3040000209504, 000209504
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-020-9504 | 18437 ( EXTENSION SHAFT ) |
Drawings & Photos | NSN 3040-00-020-9504
Cross Reference | NSN 3040-00-020-9504
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 546-6786-002 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-020-9504
Technical Data | NSN 3040-00-020-9504
| Characteristic | Specifications |
|---|---|

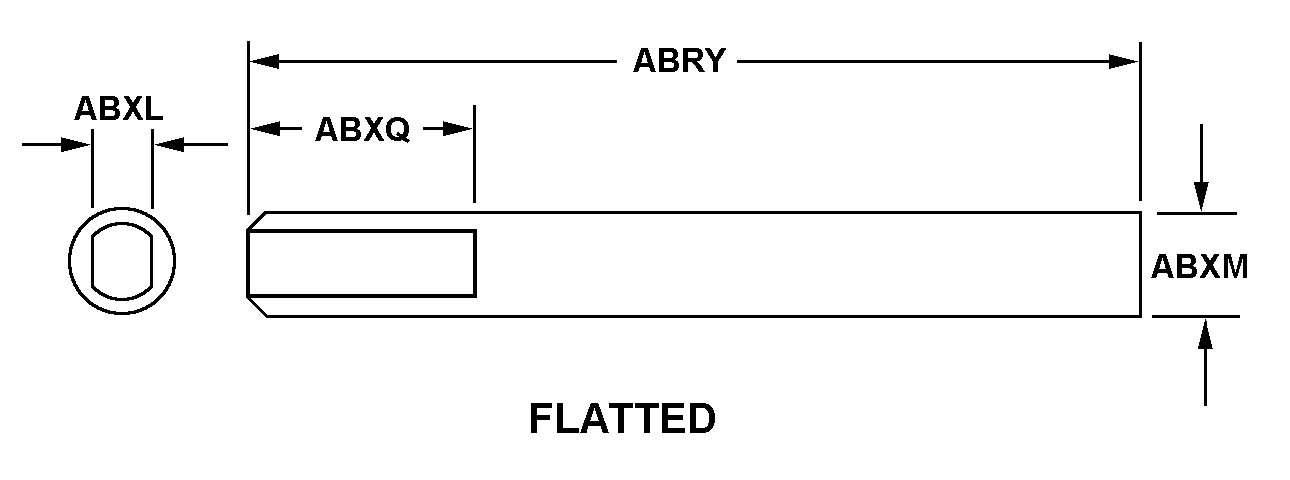

| STYLE DESIGNATOR | A202 FLATTED |
