NSN 3040-00-015-2162 6841290, 00-015-2162, 000152162
Product Details | SPUR GEARSHAFT
3040-00-015-2162 A gearshaft with a single complement of spur gear teeth. For items with more than one complement of teeth, see GEARSHAFT (1), MULTIPLE GEARS.
Part Alternates: 6841290, 3040-00-015-2162, 00-015-2162, 3040000152162, 000152162
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1961 | 00-015-2162 | 60541 ( GEARSHAFT, SPUR ) |

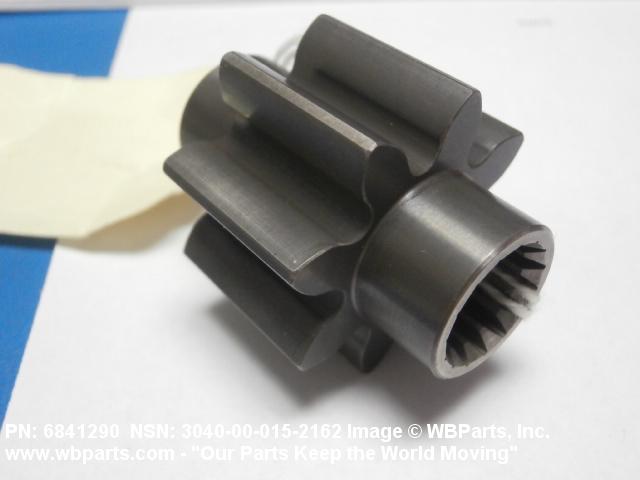

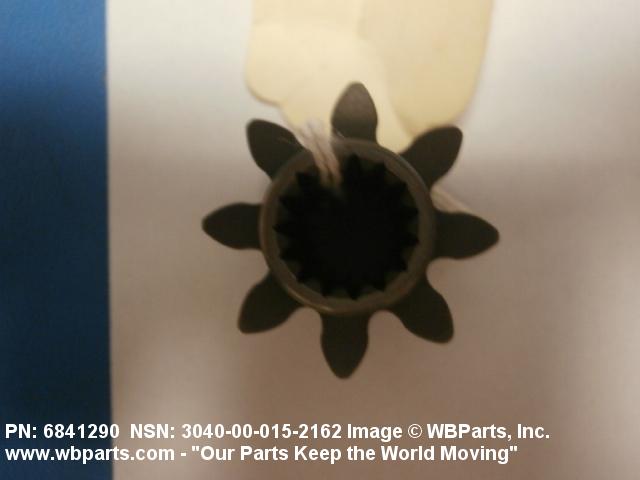

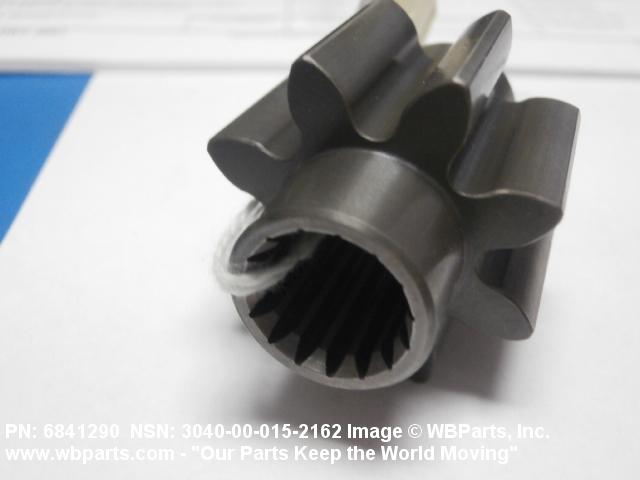

Drawings & Photos | NSN 3040-00-015-2162
Demand History | NSN 3040-00-015-2162
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-00-015-2162 | 2015-09-266 | 5 | United States |
| 3040-00-015-2162 | 2015-07-211 | 6 | DIBBS |
| 6841290 | 2013-06-155 | 1 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-00-015-2162
Related Products | NSN 3040-00-015-2162
Technical Data | NSN 3040-00-015-2162
| Characteristic | Specifications |
|---|---|
| TEETH QUANTITY | 8 |
| GEAR OUTSIDE DIAMETER | 1.245 INCHES NOMINAL |

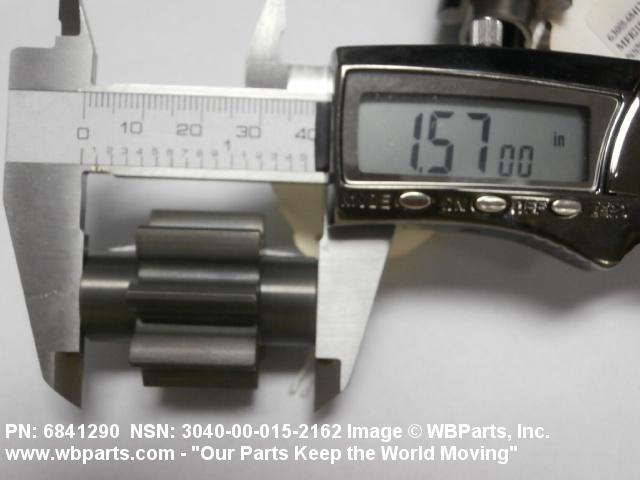

| OVERALL LENGTH | 1.570 INCHES NOMINAL |

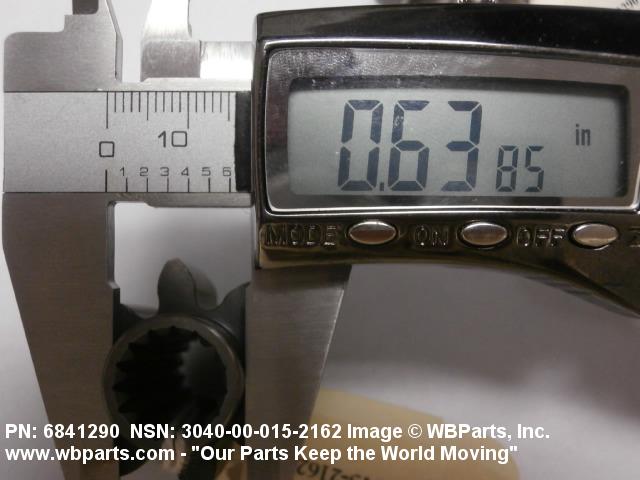

| SHAFT LARGEST DIAMETER | 0.638 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |

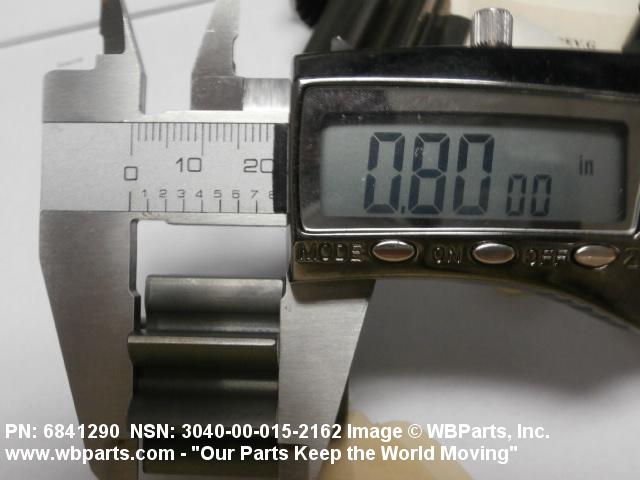

| SPECIAL FEATURES | CRES AMS 6260;0.800 MIN,0.801 MAX IN. LG SPURS;INTERNAL SPLINES;0.483 NOM IN. ID;15 TEETH LENGTH OF SHAFT |
| III END ITEM IDENTIFICATION | T56 ENG |
| MANUFACTURERS CODE | 63005 |
| DESIGN CONTROL REFERENCE | 6841290 |
Restrictions/Controls & Freight Information | NSN 3040-00-015-2162
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 129920 | SHAFTS/SHAFTING,FLEX NOI STL |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-015-2162
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | OJ | SX:"ALLISON JET ENGINES & COMPONENTS, T-56" |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
