NSN 3030-01-240-3077 A168540, 9700 SET 2, 9700SET2
Product Details | MATCHED SET V BELTS
3030-01-240-3077 A factory matched set of two or more belts.
Part Alternates: A168540, 9700 SET 2, 9700SET2, 1127458C1, 177002, 17700-2, 17701 SET 2, 17701SET2, 1812743C1, 1812744C1, 1812744C91, 2S2481, 3030-01-240-3077, 01-240-3077, 3030012403077, 012403077
Mechanical Power Transmission Equipment | Belting, Drive Belts, Fan Belts, and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 12 SEP 1986 | 01-240-3077 | 19147 ( BELTS, V, MATCHED SET ) |

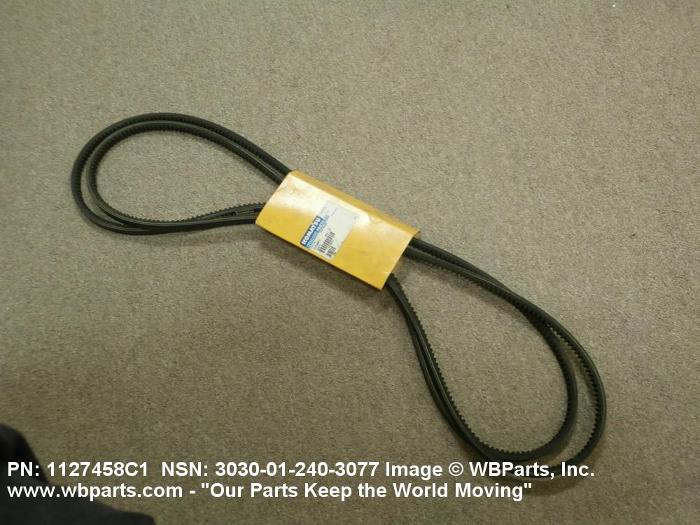

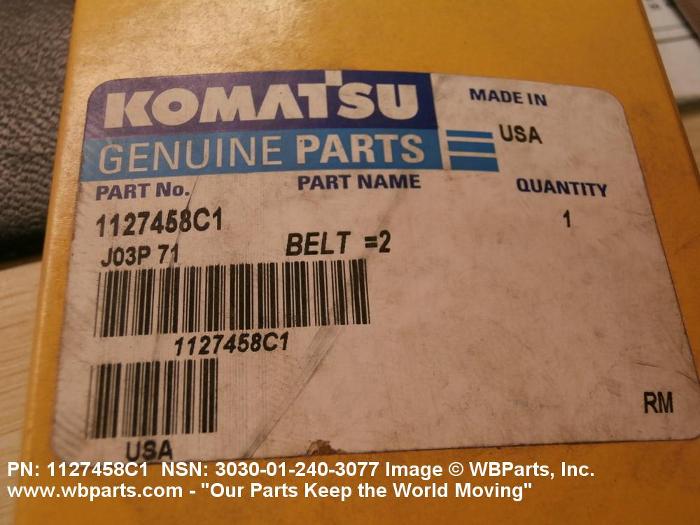

Drawings & Photos | NSN 3030-01-240-3077
Demand History | NSN 3030-01-240-3077
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3030-01-240-3077 | 2021-04-102 | 60 | US |
| 17700-2 | 2020-02-43 | 1 | DIBBS |
| 17701 SET 2 | 2020-02-43 | 1 | DIBBS |
| 1812743C1 | 2020-02-43 | 1 | DIBBS |
| 1812744C91 | 2020-02-43 | 1 | DIBBS |
| 2S2481 | 2020-02-43 | 1 | DIBBS |
| A168540 | 2020-02-43 | 1 | DIBBS |
| 3030-01-240-3077 | 2017-09-255 | 1 | DIBBS |
| A168540 | 2013-03-78 | 6 | United States |
| 3030-01-240-3077 | 2011-11-311 | 6 | US |
| 3030-01-240-3077 | 2008-08-231 | 8 | DIBBS |
| 3030-01-240-3077 | 2008-02-53 | 6 | DIBBS |
| 3030-01-240-3077 | 2008-02-38 | 6 | DIBBS |
| 3030-01-240-3077 | 2007-10-274 | 1 | DIBBS |
| 3030-01-240-3077 | 2007-09-253 | 2 | DIBBS |
| 3030-01-240-3077 | 2007-09-253 | 5 | DIBBS |
| 3030-01-240-3077 | 2007-08-227 | 7 | DIBBS |
| 3030-01-240-3077 | 2007-06-176 | 6 | DIBBS |
| 3030-01-240-3077 | 2007-05-131 | 5 | DIBBS |
| 3030-01-240-3077 | 2006-06-165 | 0 | DIBBS |
| 3030-01-240-3077 | 2006-06-157 | 8 | DIBBS |
Cross Reference | NSN 3030-01-240-3077
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1127458C1 | 29510 | KOMATSU AMERICAN INTL CO |
| 17700-2 | 1VZM7 | CARLISLE POWER TRANSMISSION PRODUCTS INC |
| 17700-2 | 81300 | PARKER-HANNIFIN CORPORATION DBA INDUSTRIAL HOSE PRODUCT DIVISION |
| 17701 SET 2 | 04NP0 | VEYANCE TECHNOLOGIES, INC. |
| 17701 SET 2 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| 1812743C1 | 1VZM7 | CARLISLE POWER TRANSMISSION PRODUCTS INC |
| 1812743C1 | 81300 | PARKER-HANNIFIN CORPORATION DBA INDUSTRIAL HOSE PRODUCT DIVISION |
| 1812744C1 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 1812744C91 | 89346 | NAVISTAR INTL CORP TRUCK BR |
| 2S2481 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
| 9700 SET 2 | 24161 | GATES CORP THE DBA GATES RUBBER CO THE |
| A168540 | 64104 | DRESSER, INC. DIV DRESSER WAUKESHA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3030-01-240-3077
Related Products | NSN 3030-01-240-3077
Technical Data | NSN 3030-01-240-3077
| Characteristic | Specifications |
|---|---|
| MATERIAL | FIBER AND RUBBER AND FIBER SYNTHETIC AND RUBBER CHLOROPRENE CLASS CR BODY |
| STRENGTHENING FEATURE | SYNTHETIC CORD |
| STYLE DESIGNATOR | A1 PLAIN |
| CROSS-SECTIONAL SIZE | SAE 7/8 |
| ANGLE IN DEG | 36.0 |
| NOMINAL WIDTH | 0.875 INCHES |
| NOMINAL EFFECTIVE OUTSIDE LENGTH | 70.000 INCHES |
| PERFORMANCE TYPE | STANDARD CAPACITY |
| BELT QUANTITY | 2 |
Restrictions/Controls & Freight Information | NSN 3030-01-240-3077
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 023340 | BELTS OR BELTING NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3030-01-240-3077
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
