NSN 3030-01-070-9109 A6R61230250, A6R6-1230250, 6R6123025
Product Details | POSITIVE DRIVE BELT
3030-01-070-9109 A flat internally toothed belt or a round belt with protuding pins, designed to engage with corresponding teeth or corresponding grooves on the sprockets over which they run.
Part Alternates: A6R61230250, A6R6-1230250, 6R6123025, 6R61230250, 727018, 727-018, 8102432, 810243-2, 8202432, 820243-2, 906010PL FIND 34, 906010PLFIND34, 3030-01-070-9109, 01-070-9109, 3030010709109, 010709109
Mechanical Power Transmission Equipment | Belting, Drive Belts, Fan Belts, and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 24 JAN 1979 | 01-070-9109 | 19541 ( BELT, POSITIVE DRIVE ) |

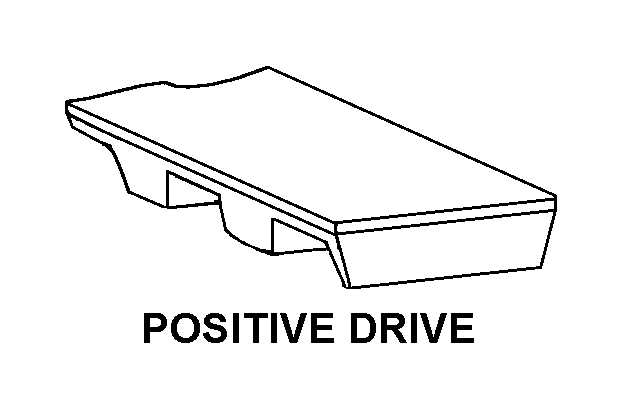

Drawings & Photos | NSN 3030-01-070-9109
Demand History | NSN 3030-01-070-9109
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6R61230250 | 2024-04-95 | 159 | DIBBS |
| A6R6-1230250 | 2024-04-95 | 159 | DIBBS |
| 6R61230250 | 2019-05-136 | 159 | DIBBS |
| 810243-2 | 2019-05-136 | 159 | DIBBS |
| 820243-2 | 2019-05-136 | 159 | DIBBS |
| 906010PL FIND 34 | 2019-05-136 | 159 | DIBBS |
| A6R6-1230250 | 2019-05-136 | 159 | DIBBS |
| 3030-01-070-9109 | 2011-02-40 | 25 | DIBBS |
Cross Reference | NSN 3030-01-070-9109
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6R6123025 | 14519 | DESIGNATRONICS INCORPORATED DBA STERLING INSTRUMENT DIV |
| 6R61230250 | 14519 | DESIGNATRONICS INCORPORATED DBA STERLING INSTRUMENT DIV |
| 727-018 | 14519 | DESIGNATRONICS INCORPORATED DBA STERLING INSTRUMENT DIV |
| 810243-2 | 56349 | TRI-TEC MANUFACTURING, LLC |
| 820243-2 | 56349 | TRI-TEC MANUFACTURING, LLC |
| 906010PL FIND 34 | 56349 | TRI-TEC MANUFACTURING, LLC |
| A6R6-1230250 | 14519 | DESIGNATRONICS INCORPORATED DBA STERLING INSTRUMENT DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3030-01-070-9109
Related Products | NSN 3030-01-070-9109
Technical Data | NSN 3030-01-070-9109
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYURETHANE BODY |
| SURFACE CONDITION | CORRUGATED PULLEY SURFACE SMOOTH TOP SURFACE |
| STRENGTHENING FEATURE | POLYESTER CORD |
| ENVIRONMENTAL PROTECTION | OIL RESISTANT AND ABRASION RESISTANT AND OZONE RESISTANT |
| STYLE DESIGNATOR | E1 POSITIVE DRIVE |
| NOMINAL WIDTH | 0.250 INCHES |
| NOMINAL PITCH LENGTH | 10.037 INCHES |
| DRIVE TYPE AND QUANTITY | 123 TEETH |
| NOMINAL PITCH DISTANCE | 0.082 INCHES |
| SPECIFICATION/STANDARD DATA | 54418-M210588 MANUFACTURERS SOURCE CONTROL |
Restrictions/Controls & Freight Information | NSN 3030-01-070-9109
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 023340 | BELTS OR BELTING NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3030-01-070-9109
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
