NSN 3030-01-049-9419 510H150, 01-049-9419, 010499419
Product Details | POSITIVE DRIVE BELT
3030-01-049-9419 A flat internally toothed belt or a round belt with protuding pins, designed to engage with corresponding teeth or corresponding grooves on the sprockets over which they run.
Part Alternates: 510H150, 3030-01-049-9419, 01-049-9419, 3030010499419, 010499419
Mechanical Power Transmission Equipment | Belting, Drive Belts, Fan Belts, and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 30 OCT 1977 | 01-049-9419 | 19541 ( BELT, POSITIVE DRIVE ) |

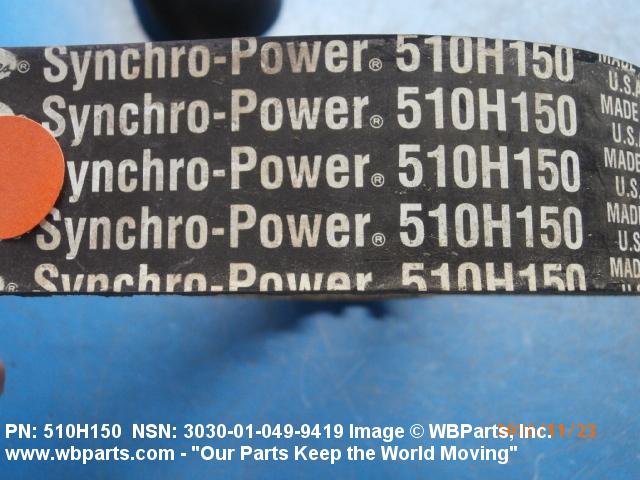

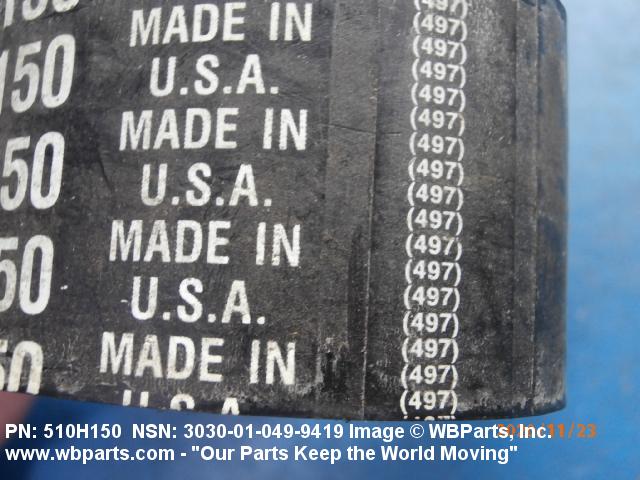

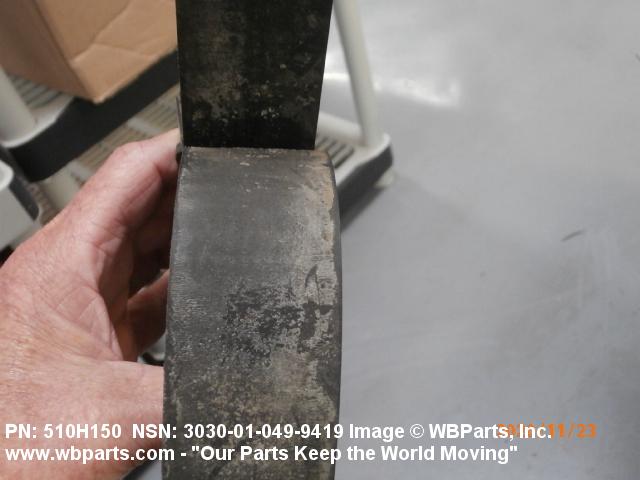

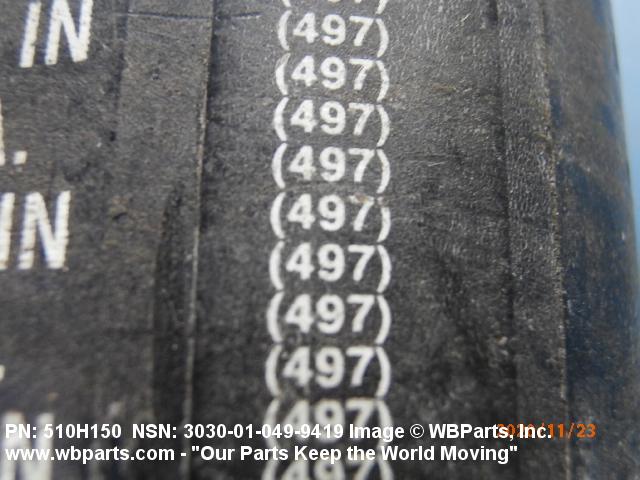

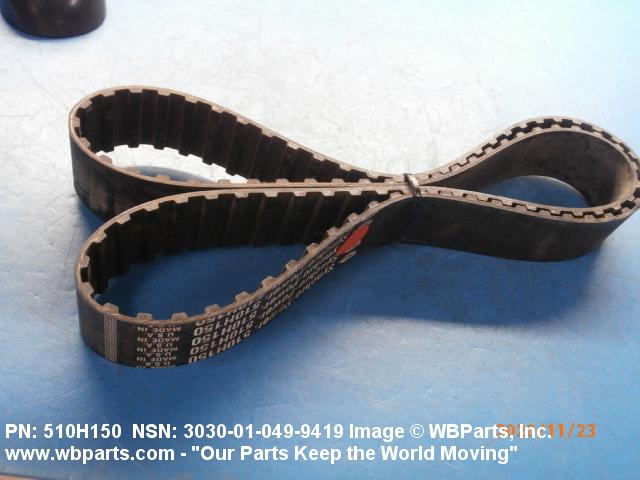

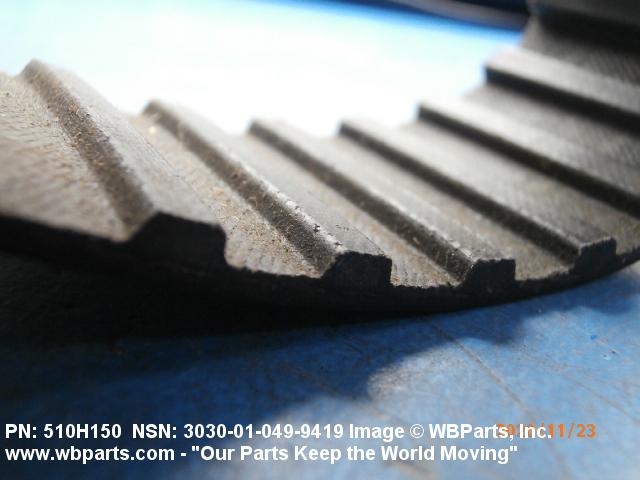

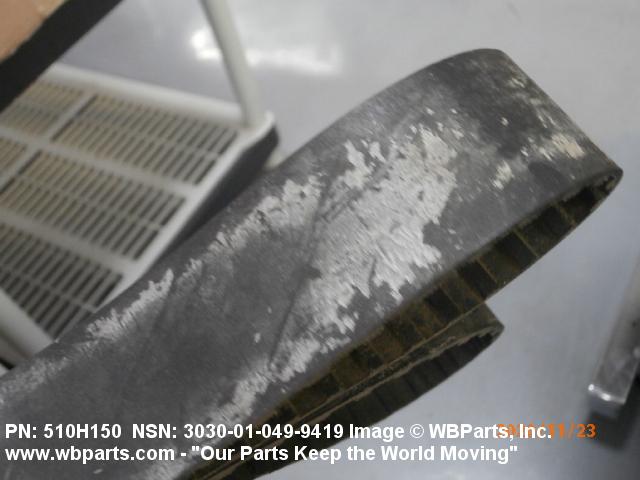

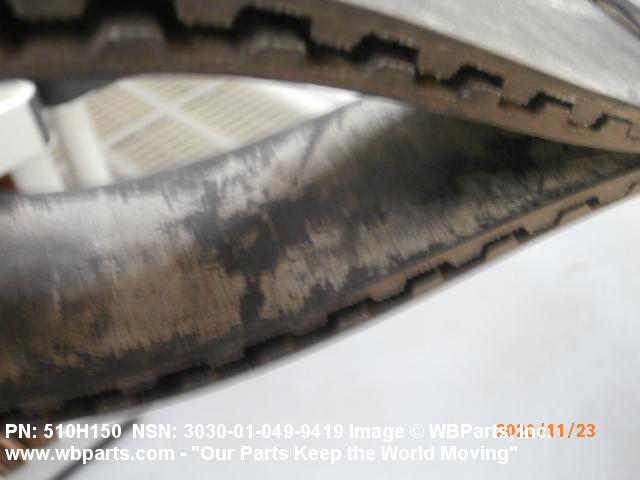

Drawings & Photos | NSN 3030-01-049-9419
Demand History | NSN 3030-01-049-9419
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 510H150 | 2022-01-27 | 60 | DIBBS |
| 510H150 | 2021-12-357 | 63 | DIBBS |
| 510H150 | 2021-12-342 | 63 | DIBBS |
| 3030-01-049-9419 | 2020-11-322 | 1 | United States |
| 510H150 | 2020-10-303 | 42 | DIBBS |
| 510H150 | 2020-08-226 | 27 | DIBBS |
| 510H150 | 2020-01-16 | 49 | DIBBS |
| 3030-01-049-9419 | 2017-11-334 | 44 | DIBBS |
| 3030-01-049-9419 | 2016-05-129 | 33 | DIBBS |
| 3030-01-049-9419 | 2013-09-252 | 74 | DIBBS |
| 3030-01-049-9419 | 2012-08-240 | 20 | DIBBS |
| 3030-01-049-9419 | 2011-09-245 | 25 | DIBBS |
| 3030-01-049-9419 | 2011-08-214 | 5 | DIBBS |
| 3030-01-049-9419 | 2011-06-157 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3030-01-049-9419
Related Products | NSN 3030-01-049-9419
Technical Data | NSN 3030-01-049-9419
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR AND PLASTIC POLYAMIDE BODY |
| SURFACE CONDITION | SMOOTH OVERALL |
| STRENGTHENING FEATURE | GLASS CORD |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND OIL RESISTANT |
| STYLE DESIGNATOR | E1 POSITIVE DRIVE |

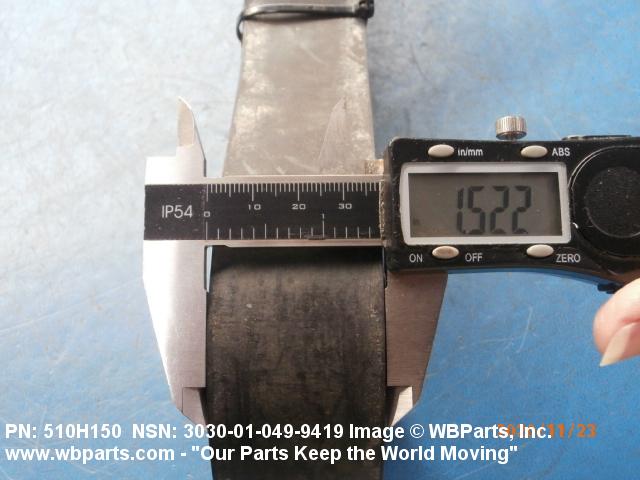

| NOMINAL WIDTH | 1.500 INCHES |
| NOMINAL PITCH LENGTH | 51.000 INCHES |
| PERFORMANCE TYPE | HEAVY DUTY |
| DRIVE TYPE AND QUANTITY | 102 TEETH |

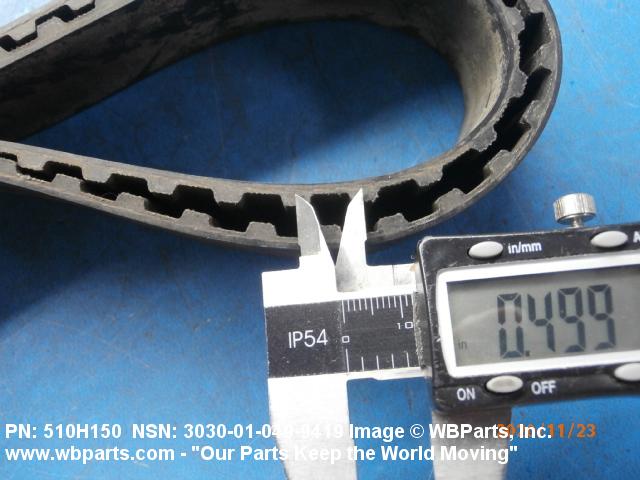

| NOMINAL PITCH DISTANCE | 0.500 INCHES |
| END ITEM IDENTIFICATION | SPRUANCE CLASS DD (963); FMS-NEWPORT CLASS LST; IWO JIMA CLASS LPH; SUPPLY CLASS AOE; ARLEIGH BURKE CLASS DDG; FMS-KNOX CLASS FF; MARS CLASS T-AFS 1; KIDD CLASS DDG; TICONDEROGA CLASS CG (47); WHIDBEY ISLAND CLASS LSD |
Restrictions/Controls & Freight Information | NSN 3030-01-049-9419
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 023340 | BELTS OR BELTING NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3030-01-049-9419
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
