Product Details | CABLE CHAIN

3020-01-395-3482 A flexible mechanical device consisting of one or more rows of cast or stamped links without side plates or rollers. The links may be replacable by splicing. Excludes metallic chains and belts.

Part Alternates: FMA080, FMA-080, 20008, 20008 ITEM NO. 11, 20008ITEMNO11, 3020-01-395-3482, 01-395-3482, 3020013953482, 013953482

Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain

Supply Group (FSG) NSN Assign. NIIN
30 27 AUG 1994 01-395-3482

Drawings & Photos | NSN 3020-01-395-3482


Demand History | NSN 3020-01-395-3482

Part Number Request Date QTY Origin
20008 ITEM NO. 11 2024-09-249 35 DIBBS
FMA-080 2024-09-249 35 DIBBS
20008 ITEM NO. 11 2023-08-226 108 DIBBS
FMA-080 2023-08-226 108 DIBBS
20008 ITEM NO. 11 2023-08-215 108 DIBBS
FMA-080 2023-08-215 108 DIBBS
20008 ITEM NO. 11 2021-11-308 100 DIBBS
FMA-080 2021-11-308 100 DIBBS
3020-01-395-3482 2020-04-102 88 US
20008 ITEM NO. 11 2020-03-86 88 DIBBS
FMA-080 2020-03-86 88 DIBBS
3020-01-395-3482 2017-06-180 270 DIBBS
3020-01-395-3482 2015-03-89 125 DIBBS
3020-01-395-3482 2015-01-25 107 DIBBS
3020-01-395-3482 2013-05-142 0 DIBBS
3020-01-395-3482 2013-04-98 115 DIBBS
3020-01-395-3482 2011-08-215 120 DIBBS
20008 2011-03-61 2 United States
3020-01-395-3482 2008-02-53 108 DIBBS
3020-01-395-3482 2007-08-216 50 DIBBS

Cross Reference | NSN 3020-01-395-3482

Part Number Cage Code Manufacturer
20008 66822 MORPAC INDUSTRIES, INC. DIV ACTUATOR
20008 ITEM NO. 11 66822 MORPAC INDUSTRIES, INC. DIV ACTUATOR
FMA-080 00141 ROLLER BEARING COMPANY OF AMERICA, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3020-01-395-3482

Technical Data | NSN 3020-01-395-3482

Characteristic Specifications
MATERIAL PLASTIC POLYURETHANE
NOMINAL PITCH DISTANCE 0.157 INCHES

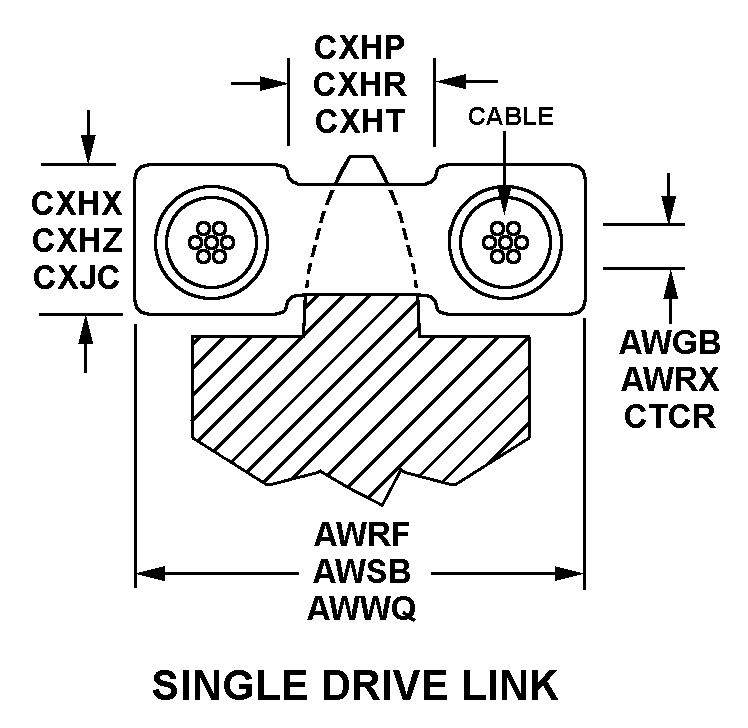

FIRST CHAIN LINK STYLE J3 SINGLE DRIVE LINK
FIRST CHAIN LINK PIN NOMINAL DIAMETER 0.0700 INCHES
FIRST CHAIN LINK NOMINAL WIDTH 0.2200 INCHES
FIRST CHAIN LINK INBOARD WIDTH BETWEEN JACKET 0.0670 INCHES
LINK ROW QUANTITY 1
PIN OVERALL LENGTH 0.2200 INCHES NOMINAL
SPECIAL FEATURES ARAMID FIBER CORES, COLOR CLEAR, ORANGE CORES, CIR AT PD 12.566 IN., 80 DRIVE PINS

Restrictions/Controls & Freight Information | NSN 3020-01-395-3482

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 182600 TILE/MOLDING COMPOSITION
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 593 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3020-01-395-3482

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
