Product Details | LEAF CHAIN
3020-01-353-0599 A flexible mechanical device consisting of flat leaf plates assembled with pins or rivets to form a chain. The chain uses a flanged sheave in lieu of a sprocket. Each end has a termination hole through which securing pins are inserted when the chain terminations are attached. Excludes CHAIN, SILENT; and CHAIN, BLOCK.
Part Alternates: PL52546-01 ITEM 7, PL5254601ITEM7, R94817, R9481-7, 708748, 70874-8, 3020-01-353-0599, 01-353-0599, 3020013530599, 013530599
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
30 | 05 FEB 1992 | 01-353-0599 | 33508 ( CHAIN, LEAF ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-353-0599
Related Products | NSN 3020-01-353-0599
Technical Data | NSN 3020-01-353-0599
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |
NOMINAL PITCH DISTANCE | 1.000 INCHES |

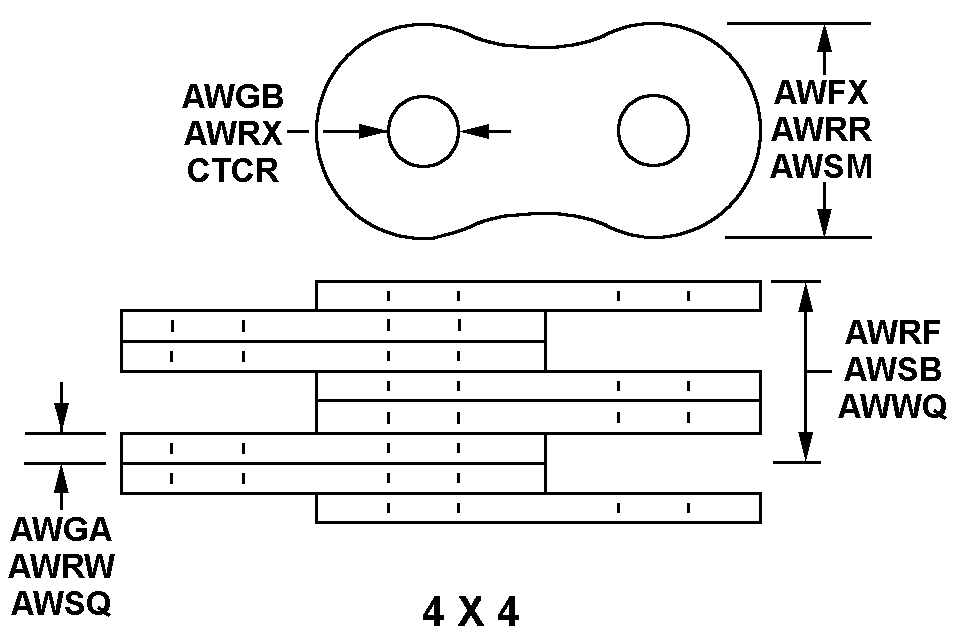

LINK STYLE | E12 4 X 4 |
LINK PLATE NOMINAL THICKNESS | 0.1560 INCHES |
LINK PIN NOMINAL DIAMETER | 0.3740 INCHES |
LINK NOMINAL WIDTH | 1.2480 INCHES |
LINK PLATE WIDTH | 0.953 INCHES NOMINAL |
LINK ROW QUANTITY | 1 |
PIN FASTENING METHOD | RIVETED |
EFFECTIVE LENGTH | 3.5833 FEET NOMINAL |
