Product Details | WORM WHEEL GEAR SECTOR

3020-01-352-9122 A gear sector with complements of worm wheel teeth.

Part Alternates: 1234775355, 123-4775355, 123-4775355 ITEM 9, 1234775355ITEM9, 3020-01-352-9122, 01-352-9122, 3020013529122, 013529122

Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain

Supply Group (FSG) NSN Assign. NIIN
30 01 FEB 1992 01-352-9122

Drawings & Photos | NSN 3020-01-352-9122


Demand History | NSN 3020-01-352-9122

Part Number Request Date QTY Origin
3020-01-352-9122 2019-09-252 1 DIBBS
3020-01-352-9122 2019-08-241 1 DIBBS
3020-01-352-9122 2016-08-228 2 DIBBS
3020-01-352-9122 2015-10-291 2 DIBBS
3020-01-352-9122 2015-08-221 2 DIBBS
3020-01-352-9122 2015-05-123 3 DIBBS
3020-01-352-9122 2015-01-15 3 DIBBS
3020-01-352-9122 2014-12-356 3 DIBBS
3020-01-352-9122 2014-12-345 3 DIBBS
3020-01-352-9122 2014-08-219 2 DIBBS
3020-01-352-9122 2014-07-208 2 DIBBS
3020-01-352-9122 2014-06-175 1 DIBBS
3020-01-352-9122 2013-11-325 2 DIBBS
3020-01-352-9122 2013-11-310 2 DIBBS
3020-01-352-9122 2013-10-274 2 DIBBS
3020-01-352-9122 2013-09-258 2 DIBBS
3020-01-352-9122 2013-04-109 2 DIBBS
3020-01-352-9122 2011-09-266 3 DIBBS

Cross Reference | NSN 3020-01-352-9122

Part Number Cage Code Manufacturer
123-4775355 80064 NAVAL SHIP SYSTEMS COMMAND
123-4775355 ITEM 9 80064 NAVAL SHIP SYSTEMS COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3020-01-352-9122

Technical Data | NSN 3020-01-352-9122

Characteristic Specifications
MATERIAL BRONZE OVERALL
TOOTH DIRECTION LEFT
FACE TYPE CONCAVE
THROAT NOMINAL RADIUS 1.810 INCHES
MATING PITCH DIAMETER 1.2500 INCHES NOMINAL
MATING THREAD LEAD QUANTITY 1
HELIX ANGLE 6.3500 DEGREES

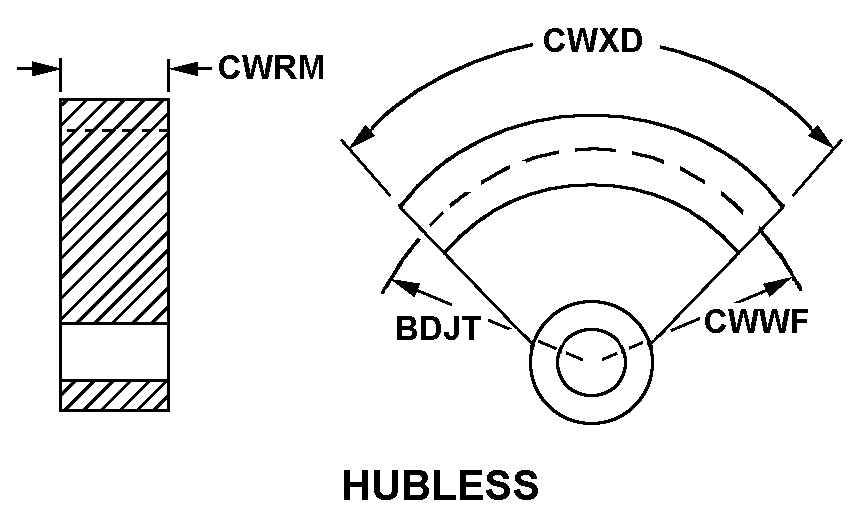

STYLE DESIGNATOR 62 HUBLESS
PITCH RADIUS 1.6710 INCHES NOMINAL
FACE NOMINAL WIDTH 0.872 INCHES
NOMINAL OUTSIDE RADIUS 1.810 INCHES
BORE STYLE 1 PLAIN BOTH ENDS
BORE NOMINAL DIAMETER 1.062 INCHES BOTH ENDS
SPECIAL FEATURES 2ND BORE PARALLEL TO FIRST ONE,1.062 IN.DIA,1.750 IN.CENTER TO CENTER

Restrictions/Controls & Freight Information | NSN 3020-01-352-9122

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 019940 AUTO TRANSMISSIONS R CLUTCHES
Less than car load rating
Less than truck load rating M 85.0
Water commodity Code 586 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3020-01-352-9122

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
