NSN 3020-01-268-6148 1828832, 182883-2, 01-268-6148
Product Details | GEAR CLUSTER
3020-01-268-6148 A cylindrical item having a full 360 degree (6.282 radians) complement of teeth on two or more surfaces. It may be a one-piece casting or composed of two or more separate items firmly held together by welding, rivets, pins, or the like, to form a single unit. It is designed to mount on a shaft. For items consisting of a shaft with an integral complement(s) or gear teeth, see GEARSHAFT (as modified). Excludes GEAR SUBASSEMBLY, SPEED DECREASER.
Part Alternates: 1828832, 182883-2, 3020-01-268-6148, 01-268-6148, 3020012686148, 012686148
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 04 DEC 1987 | 01-268-6148 | 36636 ( GEAR CLUSTER ) |
Drawings & Photos | NSN 3020-01-268-6148
Cross Reference | NSN 3020-01-268-6148
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 182883-2 | 71791 | CURTISS-WRIGHT CONTROLS, INC. DIV FLIGHT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-268-6148
Related Products | NSN 3020-01-268-6148
Technical Data | NSN 3020-01-268-6148
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 4340M STEEL CPS4911 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | ASSEMBLED |
| DESIGN TYPE | SPUR ALL GEARS |
| NOMINAL OUTSIDE DIAMETER | 0.385 INCHES FIRST GEAR 1.156 INCHES SECOND GEAR 0.385 INCHES THIRD GEAR |
| NOMINAL OVERALL LENGTH | 3.230 INCHES |

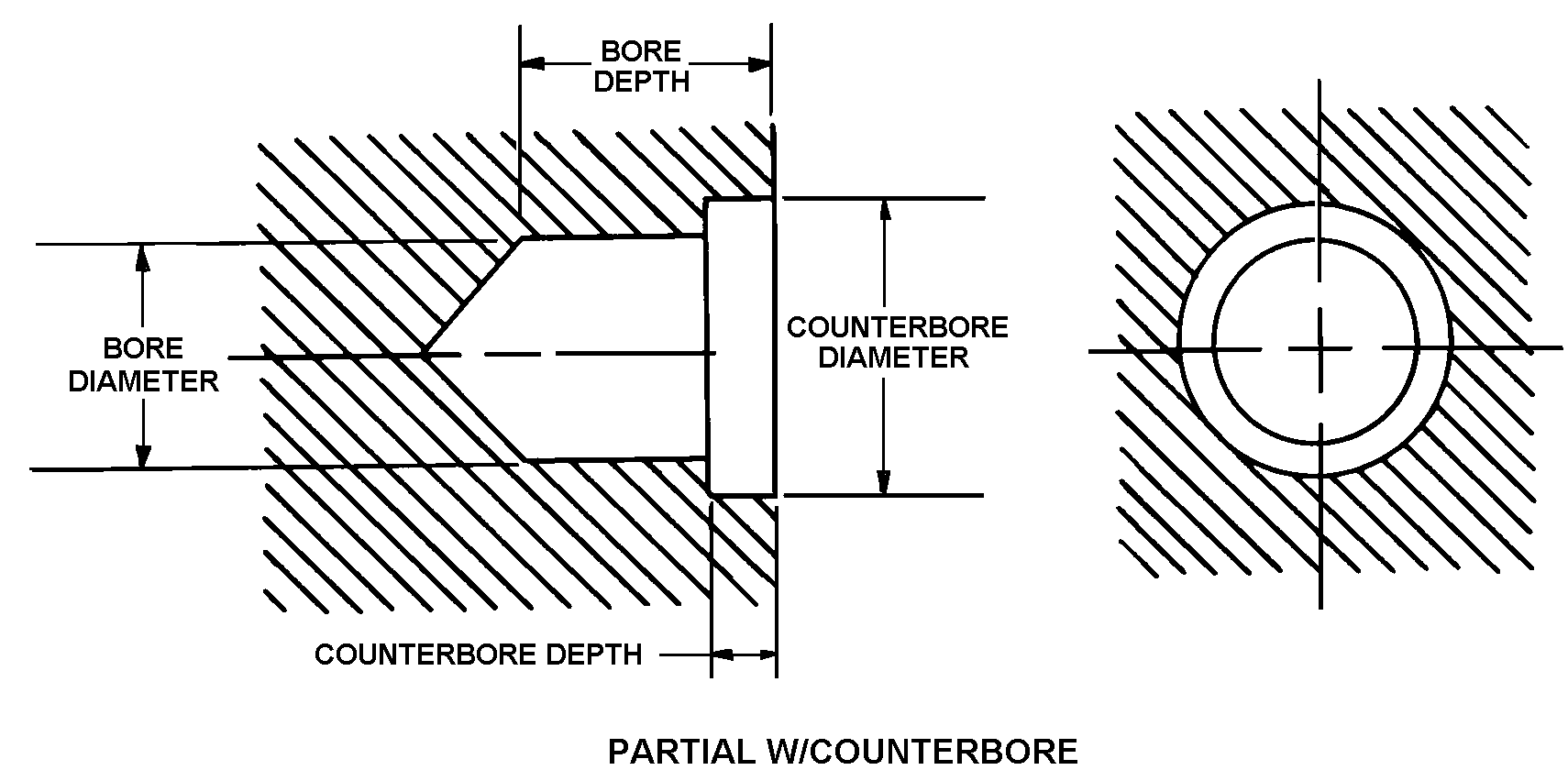

| BORE STYLE | 19 PARTIAL W/COUNTERBORE BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.390 INCHES SECOND END |
| BORE NOMINAL DEPTH | 0.500 INCHES SECOND END |
| COUNTERBORE NOMINAL DEPTH | 2.460 INCHES BOTH ENDS |
| COUNTERBORE NOMINAL DIAMETER | 0.250 INCHES BOTH ENDS |
| SPECIAL FEATURES | 2 LUBRICATING HOLES ON 1A AND 1C 0.020 DIA; NO. OF TEETH 15; PRESSURE AGLE 25.0000 |
| III END ITEM IDENTIFICATION | F16C/D COMMON |
| MANUFACTURERS CODE | 71791 |
| DESIGN CONTROL REFERENCE | 182883-2 |
