NSN 3020-01-202-0481 SSN6375012143862, SSN637-501-2143862, SSN637-501-2143862 PIECE 13
Product Details | BEVEL GEAR
3020-01-202-0481 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: SSN6375012143862, SSN637-501-2143862, SSN637-501-2143862 PIECE 13, SSN6375012143862PIECE13, 7764369X3, 77643-69X3, 77643-69X3 PIECE 13, 7764369X3PIECE13, 3020-01-202-0481, 01-202-0481, 3020012020481, 012020481
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 27 FEB 1985 | 01-202-0481 | 05463 ( GEAR, BEVEL ) |
Drawings & Photos | NSN 3020-01-202-0481
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-01-202-0481
Technical Data | NSN 3020-01-202-0481
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| TEETH QUANTITY | 40 |
| TEETH TYPE | STRAIGHT |
| PRESSURE ANGLE | 20.0000 DEGREES |

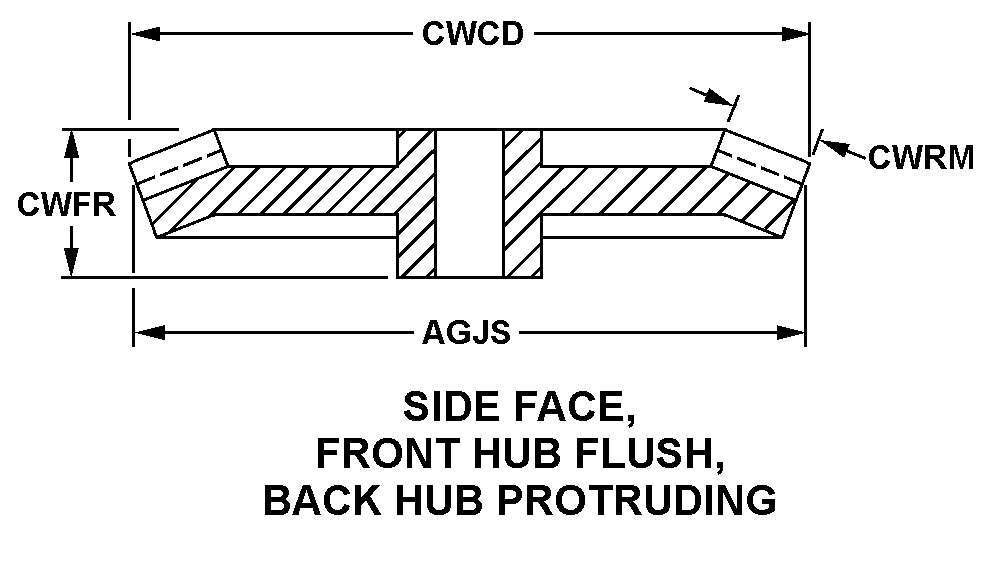

| STYLE DESIGNATOR | 29 SIDE FACE, FRONT HUB FLUSH, BACK HUB PROTRUDING |
| PITCH DIAMETER | 5.0000 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 1.187 INCHES |
| NOMINAL OUTSIDE DIAMETER | 5.112 INCHES |
| FACE NOMINAL WIDTH | 1.000 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.125 INCHES SECOND END |
| BORE STYLE | 7 STRAIGHT SPLINE BOTH ENDS 14 W/COUNTERBORE SECOND END |
| BORE NOMINAL DIAMETER | 0.751 INCHES BOTH ENDS |
| SPLINE QUANTITY | 10 BOTH ENDS |
| COUNTERBORE NOMINAL DEPTH | 0.312 INCHES SECOND END |
| COUNTERBORE NOMINAL DIAMETER | 0.062 INCHES SECOND END |
| HUB STYLE DESIGNATOR | 1 PLAIN BOTH ENDS |
| HUB NOMINAL DIAMETER | 1.250 INCHES BOTH ENDS |
| BODY STYLE | 1 PLAIN, SOLID |
Restrictions/Controls & Freight Information | NSN 3020-01-202-0481
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121870 | GEAR/SPEED INCREASING/REDUCING MACH |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-01-202-0481
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
