NSN 3020-01-196-1407 A-14048 PIECE 16, A14048PIECE16, BS12362
Product Details | BEVEL GEAR
3020-01-196-1407 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: A-14048 PIECE 16, A14048PIECE16, BS12362, BS1236-2, 3020-01-196-1407, 01-196-1407, 3020011961407, 011961407
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 07 DEC 1984 | 01-196-1407 | 05463 ( GEAR, BEVEL ) |
Drawings & Photos | NSN 3020-01-196-1407
Demand History | NSN 3020-01-196-1407
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-196-1407 | 2013-10-304 | 3 | DIBBS |
| 3020-01-196-1407 | 2012-08-243 | 2 | DIBBS |
| 3020-01-196-1407 | 2012-04-96 | 2 | DIBBS |
| 3020-01-196-1407 | 2011-11-319 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-196-1407
Related Products | NSN 3020-01-196-1407
Technical Data | NSN 3020-01-196-1407
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| TEETH QUANTITY | 36 |
| PRESSURE ANGLE | 20.0000 DEGREES |

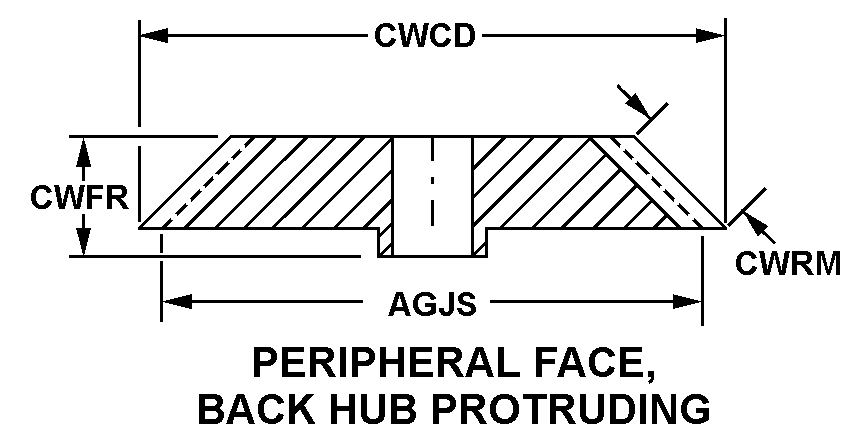

| STYLE DESIGNATOR | 39 PERIPHERAL FACE, BACK HUB PROTRUDING |
| PITCH DIAMETER | 3.0000 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 0.266 INCHES |
| NOMINAL OUTSIDE DIAMETER | 3.050 INCHES |
| FACE NOMINAL WIDTH | 0.530 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.875 INCHES SECOND END |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 1.000 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN SECOND END |
| HUB NOMINAL DIAMETER | 2.125 INCHES SECOND END |
| BODY STYLE | 1 PLAIN, SOLID |
