Product Details | GEAR RACK

3020-01-185-8260 A bar-like item with gear teeth on one face for engaging with a spur, bevel, or worm gear, or the like. It is specifically designed for straight line motion.

Part Alternates: 3418C3, 3418RA, 3020-01-185-8260, 01-185-8260, 3020011858260, 011858260

Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain

Supply Group (FSG) NSN Assign. NIIN
30 04 AUG 1984 01-185-8260

Drawings & Photos | NSN 3020-01-185-8260


Cross Reference | NSN 3020-01-185-8260

Part Number Cage Code Manufacturer
3418C3 78062 DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
3418RA 78062 DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3020-01-185-8260

Technical Data | NSN 3020-01-185-8260

Characteristic Specifications
MATERIAL STEEL COMP 4140 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION MIL-S-5626 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
TEETH QUANTITY 15
TEETH TYPE SPUR

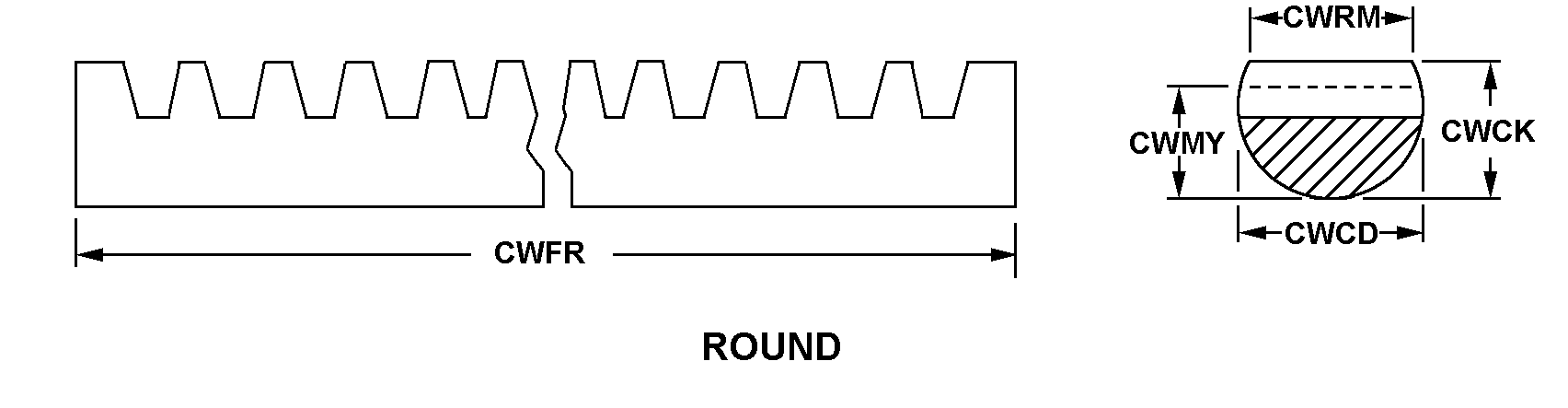

STYLE DESIGNATOR 53 ROUND

Restrictions/Controls & Freight Information | NSN 3020-01-185-8260

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 128000 PUMPS PWR NOI/WORKING HEADS/PARTS
Less than car load rating
Less than truck load rating M 85.0
Water commodity Code 593 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3020-01-185-8260

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesXSEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
