NSN 3020-01-185-2966 SC0311, SC-0311, Y102113
Product Details | LEAF CHAIN
3020-01-185-2966 A flexible mechanical device consisting of flat leaf plates assembled with pins or rivets to form a chain. The chain uses a flanged sheave in lieu of a sprocket. Each end has a termination hole through which securing pins are inserted when the chain terminations are attached. Excludes CHAIN, SILENT; and CHAIN, BLOCK.
Part Alternates: SC0311, SC-0311, Y102113, Y-1021-13, Y1021131410, Y-1021-13-1410, 3020-01-185-2966, 01-185-2966, 3020011852966, 011852966
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 27 JUL 1984 | 01-185-2966 | 33508 ( CHAIN, LEAF ) |

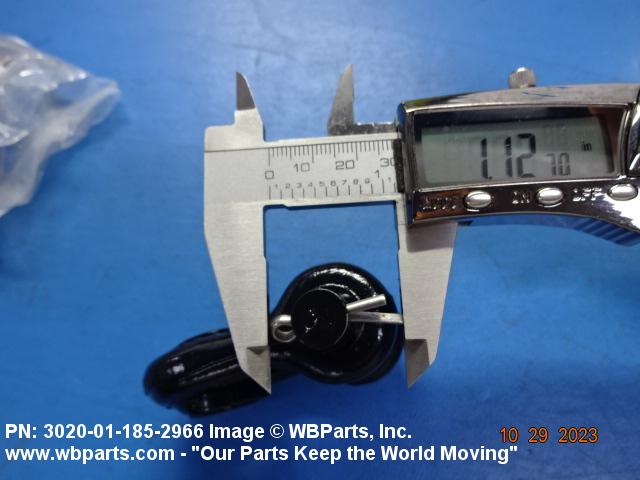

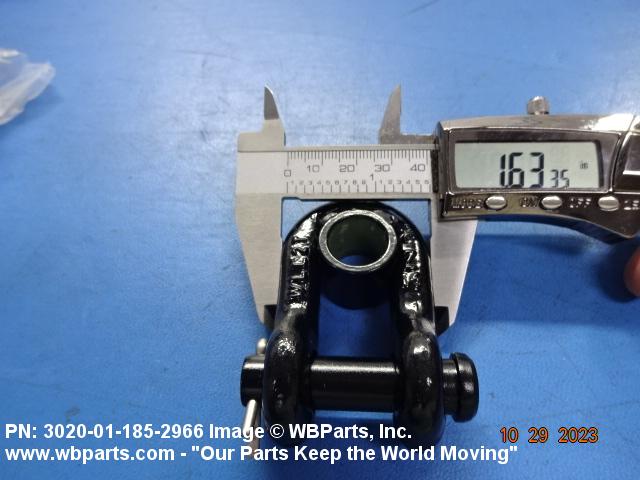

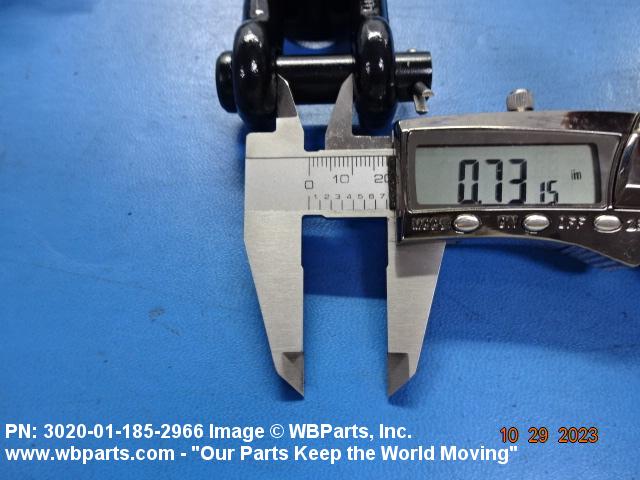

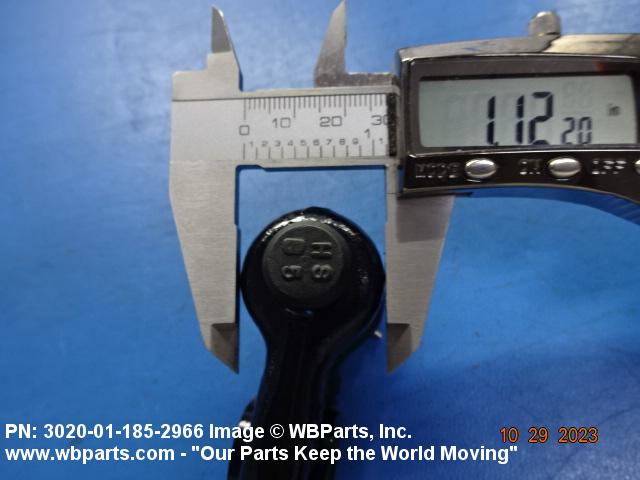

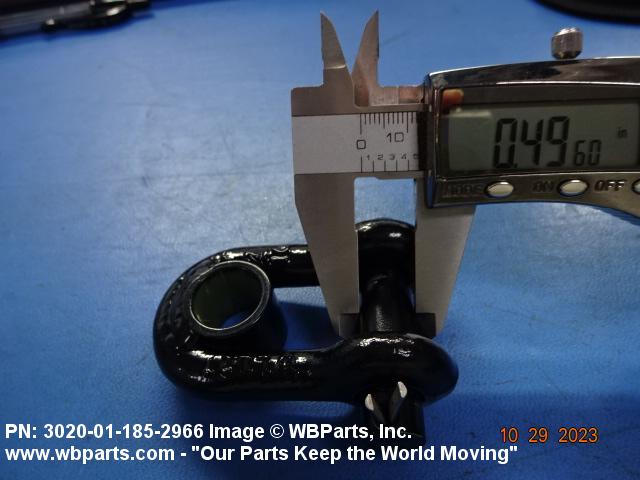

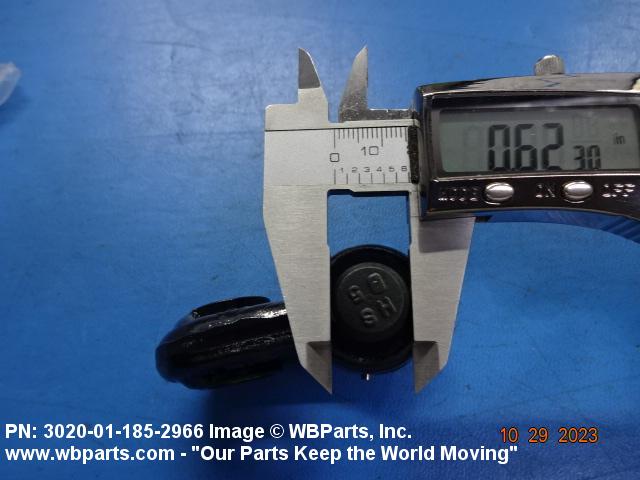

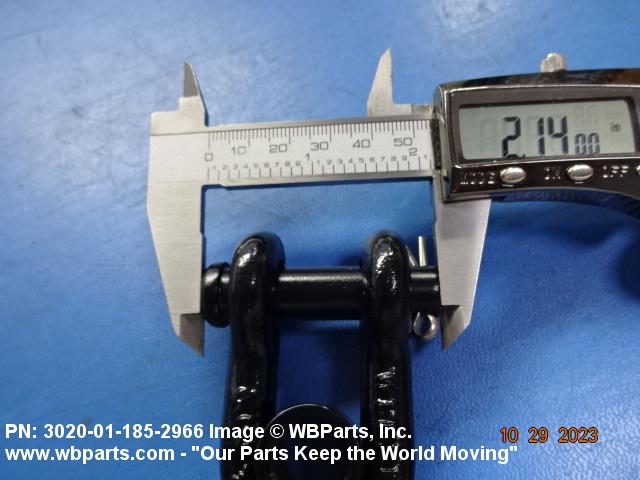

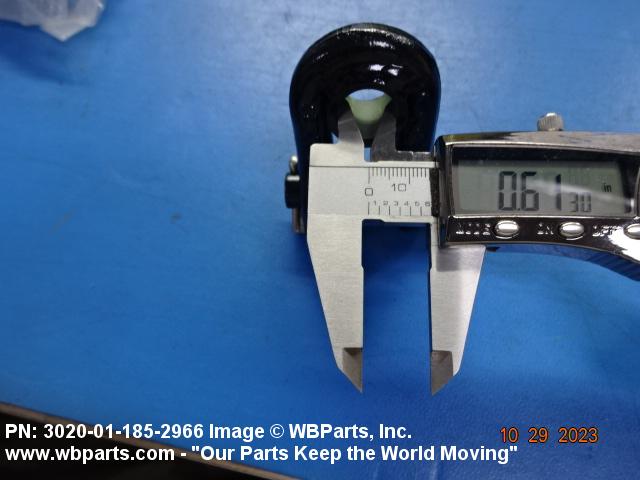

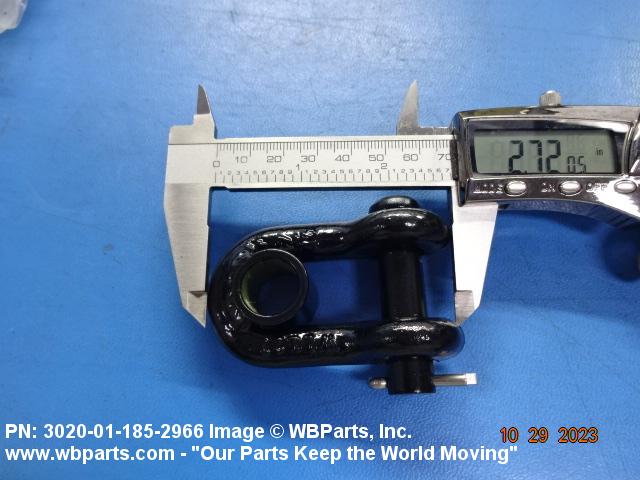

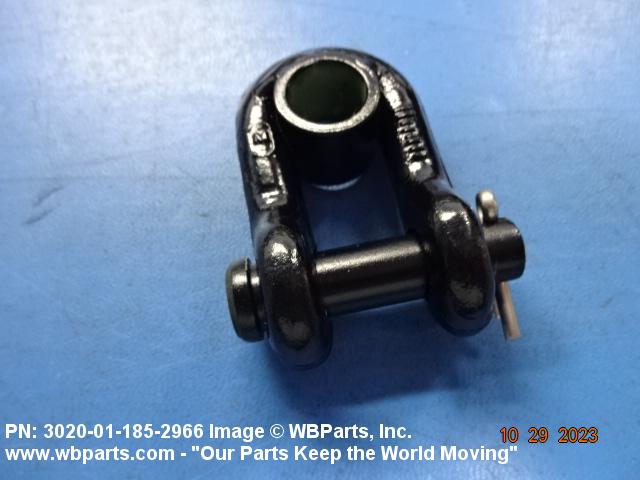

Drawings & Photos | NSN 3020-01-185-2966
Demand History | NSN 3020-01-185-2966
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-185-2966 | 2023-10-289 | 1 | Germany |
| 3020-01-185-2966 | 2023-06-171 | 1 | Germany |
| 3020-01-185-2966 | 2022-09-264 | 10 | Germany |
| 3020-01-185-2966 | 2021-02-35 | 1 | Germany |
| 3020-01-185-2966 | 2018-09-249 | 42 | DIBBS |
| 3020-01-185-2966 | 2018-08-238 | 42 | DIBBS |
| 3020-01-185-2966 | 2016-03-68 | 20 | DIBBS |
| 3020-01-185-2966 | 2013-02-32 | 21 | DIBBS |
| 3020-01-185-2966 | 2010-03-63 | 21 | DIBBS |
| 3020-01-185-2966 | 2010-02-43 | 8 | DIBBS |
| 3020-01-185-2966 | 2009-11-313 | 9 | DIBBS |
| 3020-01-185-2966 | 2009-10-286 | 5 | DIBBS |
| 3020-01-185-2966 | 2006-07-207 | 82 | DIBBS |
| 3020-01-185-2966 | 2006-02-39 | 89 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-185-2966
Related Products | NSN 3020-01-185-2966
Technical Data | NSN 3020-01-185-2966
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| LINK ROW QUANTITY | 1 |
| PIN OVERALL LENGTH | 0.4030 INCHES NOMINAL |
| EFFECTIVE LENGTH | 1.1822 FEET NOMINAL |
Restrictions/Controls & Freight Information | NSN 3020-01-185-2966
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094050 | CHAINS NOI I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
