NSN 3020-01-179-3063 S9756AR0031, 13084333, 01-179-3063
Product Details | GEAR CLUSTER
3020-01-179-3063 A cylindrical item having a full 360 degree (6.282 radians) complement of teeth on two or more surfaces. It may be a one-piece casting or composed of two or more separate items firmly held together by welding, rivets, pins, or the like, to form a single unit. It is designed to mount on a shaft. For items consisting of a shaft with an integral complement(s) or gear teeth, see GEARSHAFT (as modified). Excludes GEAR SUBASSEMBLY, SPEED DECREASER.
Part Alternates: S9756AR0031, 13084333, 3020-01-179-3063, 01-179-3063, 3020011793063, 011793063
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 16 MAY 1984 | 01-179-3063 | 36636 ( GEAR CLUSTER ) |
Drawings & Photos | NSN 3020-01-179-3063
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-179-3063
Related Products | NSN 3020-01-179-3063
Technical Data | NSN 3020-01-179-3063
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 FIRST GEAR STEEL COMP 303 SECOND GEAR |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,T4 FED SPEC SINGLE MATERIAL RESPONSE FIRST GEAR QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE SECOND GEAR |
| SURFACE TREATMENT | ANODIZE FIRST GEAR PASSIVATE SECOND GEAR |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 1,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE FIRST GEAR QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SECOND GEAR |
| CONSTRUCTION | SOLID |
| DESIGN TYPE | SPUR ALL GEARS |
| NOMINAL OUTSIDE DIAMETER | 1.542 INCHES FIRST GEAR 0.458 INCHES SECOND GEAR |
| NOMINAL OVERALL LENGTH | 0.500 INCHES |
| PRECISION CLASSIFICATION | QUALITY NUMBER 10 ALL GEARS |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.125 INCHES BOTH ENDS |

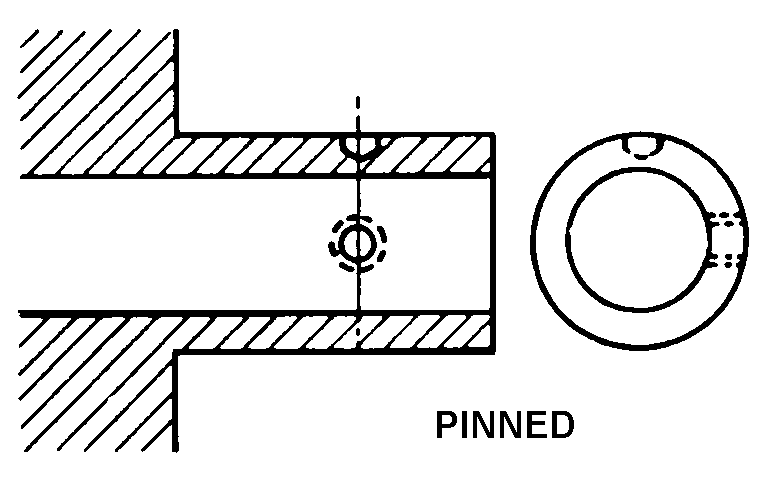

| HUB STYLE DESIGNATOR | 5 PINNED FIRST END 1 PLAIN BETWEEN FIRST AND SECOND GEAR |
| HUB NOMINAL LENGTH | 0.157 INCHES FIRST END 0.052 INCHES BETWEEN FIRST AND SECOND GEAR |
| HUB NOMINAL DIAMETER | 0.312 INCHES FIRST END |
| SPECIAL FEATURES | WITH ONE ANTIBACKLASH GEAR |
| III END ITEM IDENTIFICATION | 1270-01-142-2855 |
