NSN 3020-01-064-3398 408005, 40800-5, 01-064-3398
Product Details | MATCHED BEVEL GEAR SET
3020-01-064-3398 A grouping of two or more or any combination of GEAR, BEVEL; GEARSHAFT, BEVEL; or GEAR CLUSTER, BEVEL which have been matched together for a given characteristic within a specified tolerance. Includes only those gears designed and tested to accomplish a specifically desired function.
Part Alternates: 408005, 40800-5, 3020-01-064-3398, 01-064-3398, 3020010643398, 010643398
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 23 AUG 1978 | 01-064-3398 | 21969 ( GEAR SET, BEVEL, MATCHED ) |

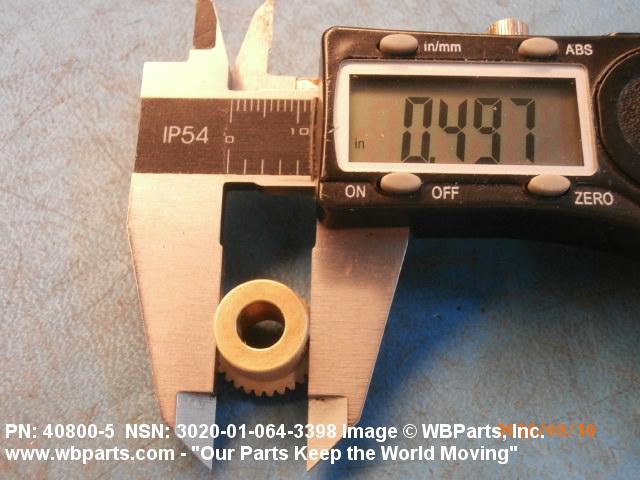

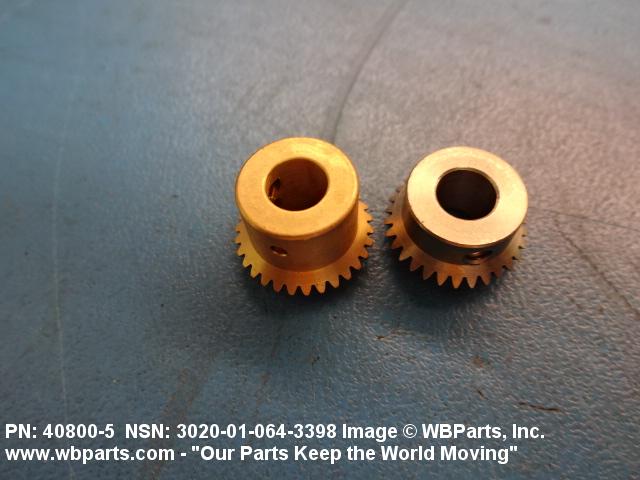

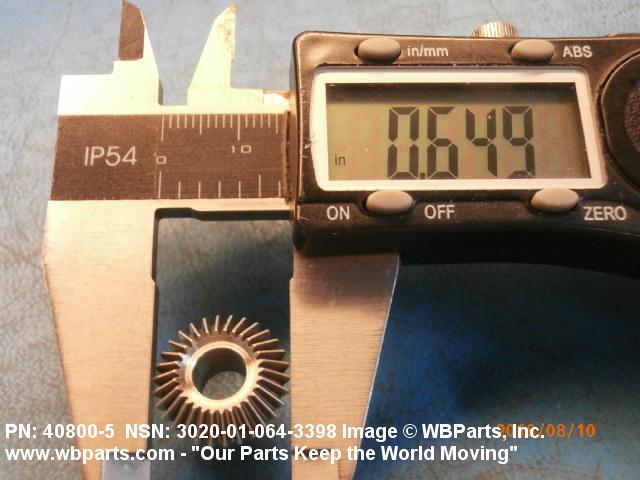

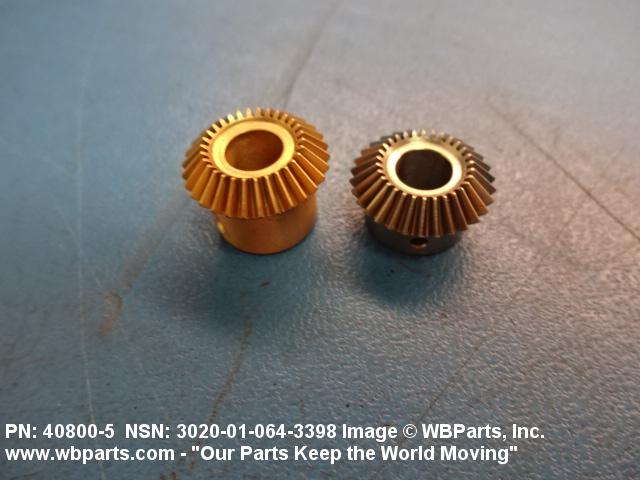

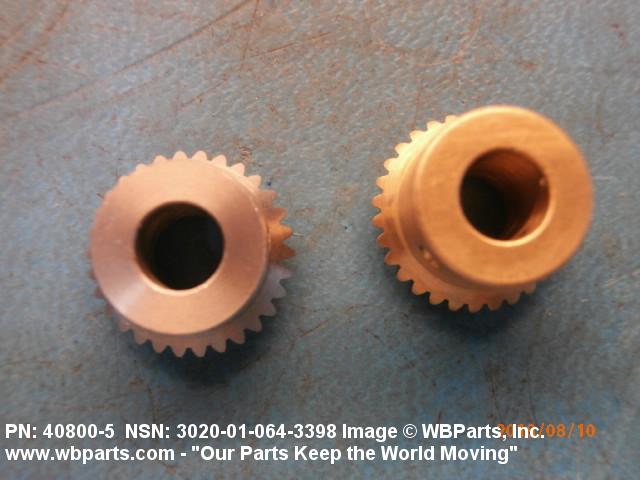

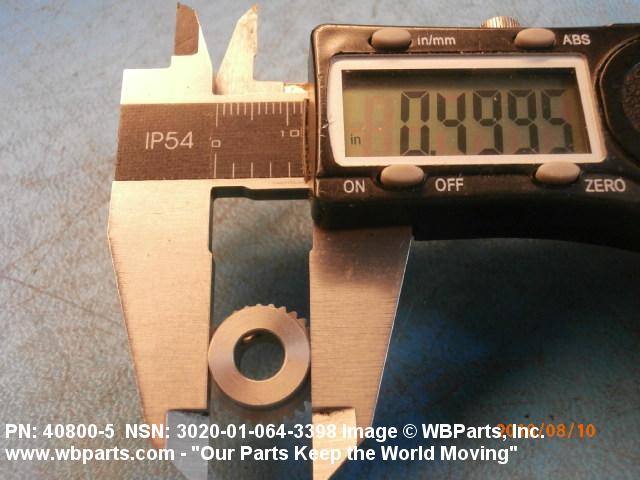

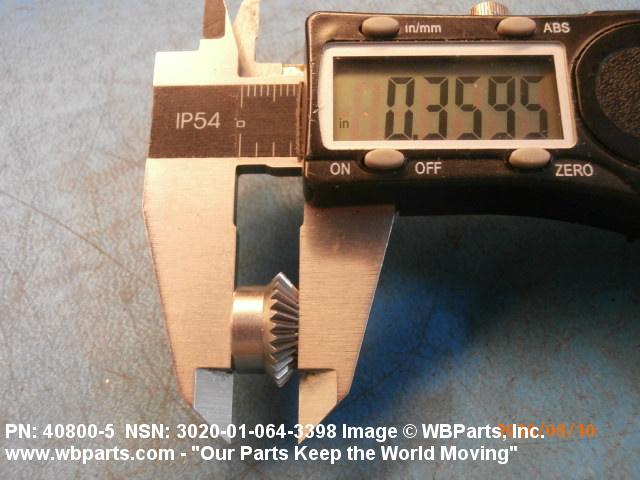

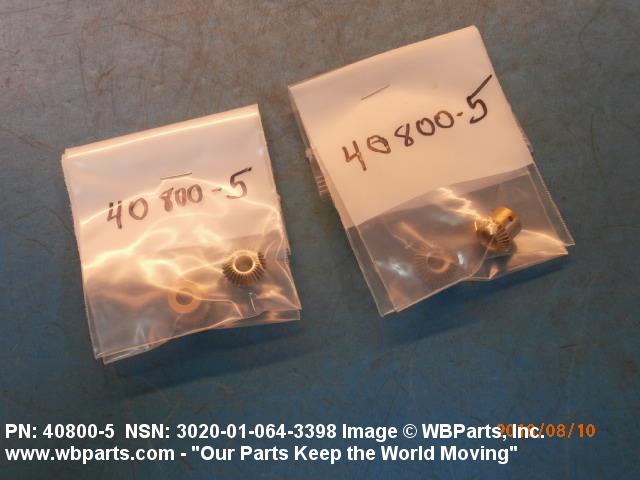

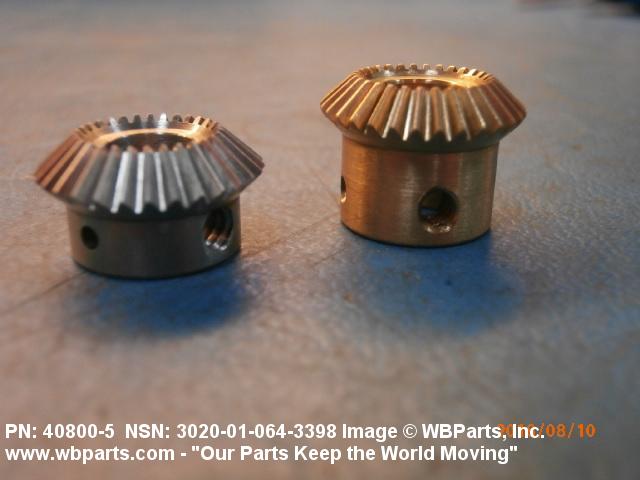

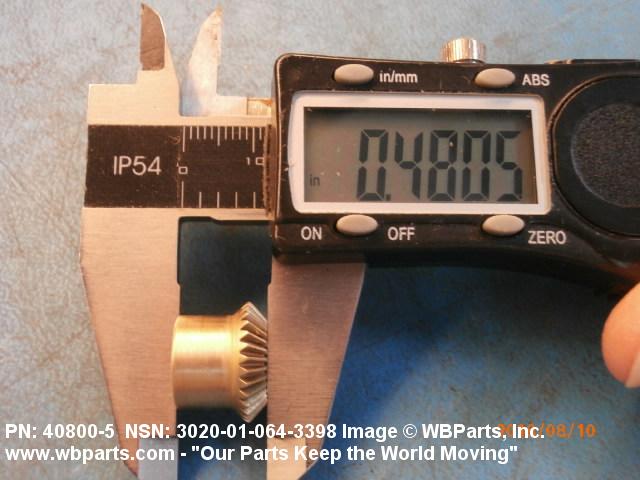

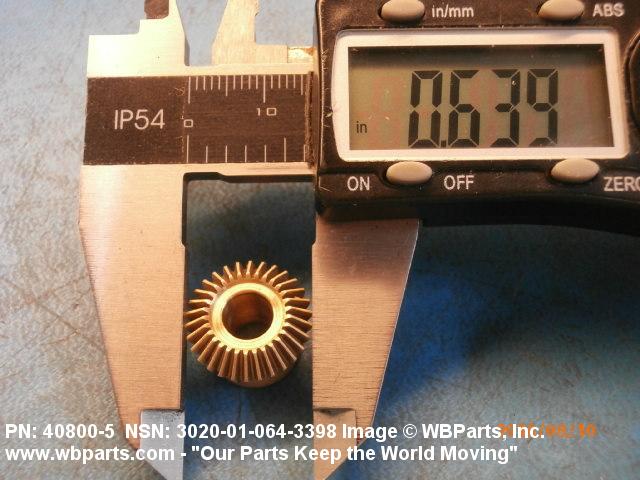

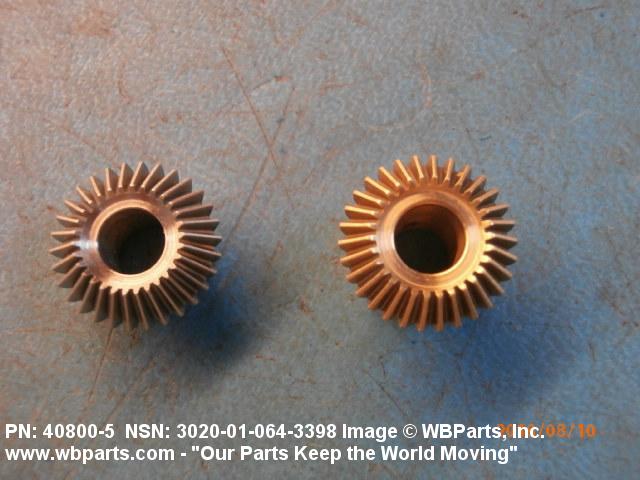

Drawings & Photos | NSN 3020-01-064-3398
Demand History | NSN 3020-01-064-3398
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-064-3398 | 2020-04-108 | 1 | Taiwan |
| 3020-01-064-3398 | 2019-11-329 | 1 | Taiwan |
| 3020-01-064-3398 | 2019-01-11 | 1 | Taiwan |
| 3020-01-064-3398 | 2018-07-208 | 2 | Taiwan |
| 3020-01-064-3398 | 2013-06-175 | 22 | DIBBS |
| 3020-01-064-3398 | 2010-10-301 | 3 | DIBBS |
| 3020-01-064-3398 | 2010-10-300 | 10 | DIBBS |
| 3020-01-064-3398 | 2008-11-328 | 1 | DIBBS |
| 3020-01-064-3398 | 2008-11-308 | 1 | DIBBS |
| 3020-01-064-3398 | 2008-09-249 | 1 | DIBBS |
| 3020-01-064-3398 | 2007-07-191 | 12 | DIBBS |
Cross Reference | NSN 3020-01-064-3398
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 40800-5 | 47496 | THE DEWEY ELECTRONICS CORPORATION DIV PITOMETER LOG DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-01-064-3398
Technical Data | NSN 3020-01-064-3398
| Characteristic | Specifications |
|---|---|
| COMPONENT QUANTITY | 2 |
Restrictions/Controls & Freight Information | NSN 3020-01-064-3398
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121870 | GEAR/SPEED INCREASING/REDUCING MACH |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-01-064-3398
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
