NSN 3020-01-059-9180 LINK RC-40, LINKRC40, 01-059-9180
Product Details | ROLLER CHAIN LINK
3020-01-059-9180 An assembled unit of a CHAIN, ROLLER consisting of side plates, roller(s), bushing(s), or pin(s). It may be a single or double pitch. Links containing bushings without rollers shall be as designated by the American National Standards Institute as "roller chain." Excludes LINK, CHAIN (as modified); and PULLEY, SASH.
Part Alternates: LINK RC-40, LINKRC40, 3020-01-059-9180, 01-059-9180, 3020010599180, 010599180
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 03 MAY 1978 | 01-059-9180 | 04488 ( LINK, ROLLER CHAIN ) |
Drawings & Photos | NSN 3020-01-059-9180
Cross Reference | NSN 3020-01-059-9180
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LINK RC-40 | 19383 | JOHN BEAN TECHNOLOGIES CORPORATION DIV AUTOMATED SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-01-059-9180
Technical Data | NSN 3020-01-059-9180
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

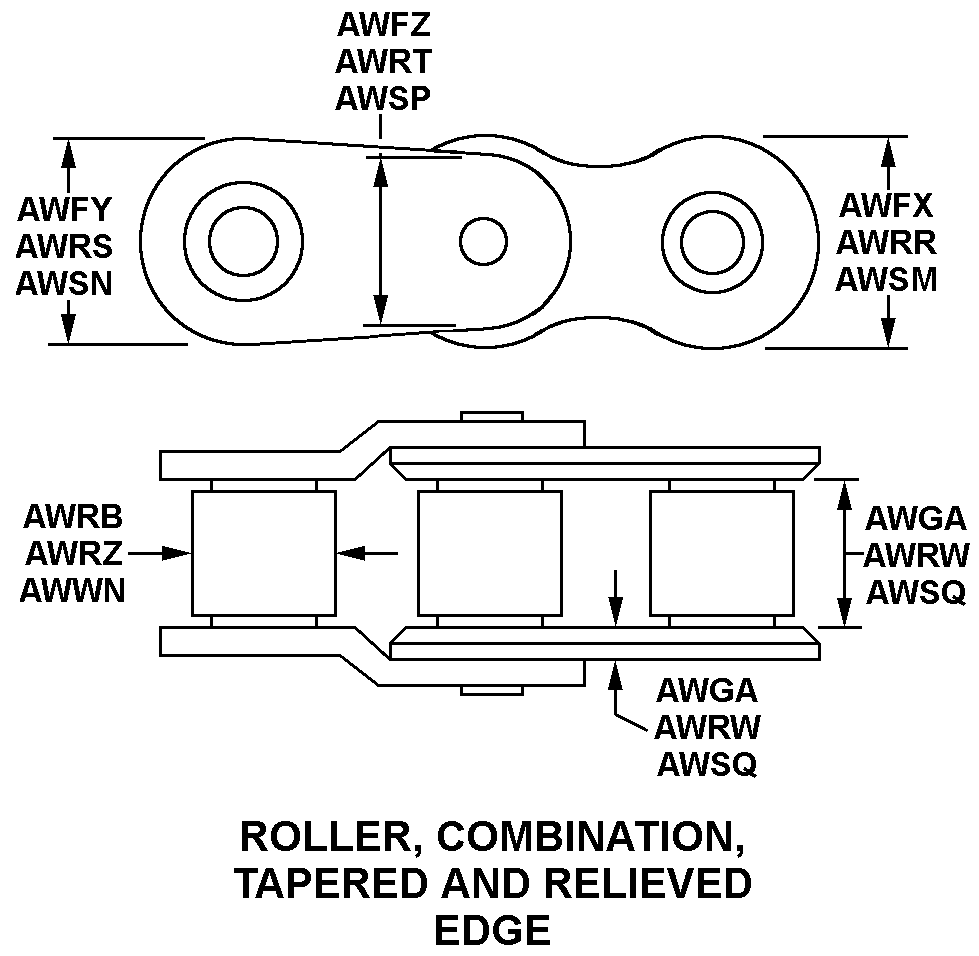

| LINK STYLE | C2 ROLLER, COMBINATION, TAPERED AND RELIEVED EDGE |
| LINK PLATE NOMINAL THICKNESS | 0.0600 INCHES |
| LINK ROLLER NOMINAL DIAMETER | 0.3120 INCHES |
| LINK NOMINAL WIDTH BETWEEN PLATES | 0.3125 INCHES |
| LINK PLATE WIDTH | 0.386 INCHES NOMINAL |
| LINK PLATE WIDTH AT BUSHING END | 0.452 INCHES NOMINAL |
| LINK PLATE WIDTH AT PIN END | 0.220 INCHES NOMINAL |
| MINIMUM TENSILE STRENGTH | 3700 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 3020-01-059-9180
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
