Product Details | BEVEL GEAR
3020-01-044-3397 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: 2140400475, 214-040-047-5, 3020-01-044-3397, 01-044-3397, 3020010443397, 010443397
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 11 JUL 1977 | 01-044-3397 | 05463 ( GEAR, BEVEL ) |
Drawings & Photos | NSN 3020-01-044-3397
Cross Reference | NSN 3020-01-044-3397
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 214-040-047-5 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-044-3397
Related Products | NSN 3020-01-044-3397
Technical Data | NSN 3020-01-044-3397
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 33.0 ROCKWELL C MINIMUM AND 41.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 35 |
| PRESSURE ANGLE | 22.5000 DEGREES |
| PITCH ANGLE | 49.4165 DEGREES |
| BORE STYLE | 6 INVOLUTE SPLINE BOTH ENDS |
| BORE NOMINAL DIAMETER | 1.938 INCHES BOTH ENDS |
| SPLINE QUANTITY | 29 BOTH ENDS |
| SPLINE PITCH DIAMETER | 1.8125 INCHES NOMINAL BOTH ENDS |

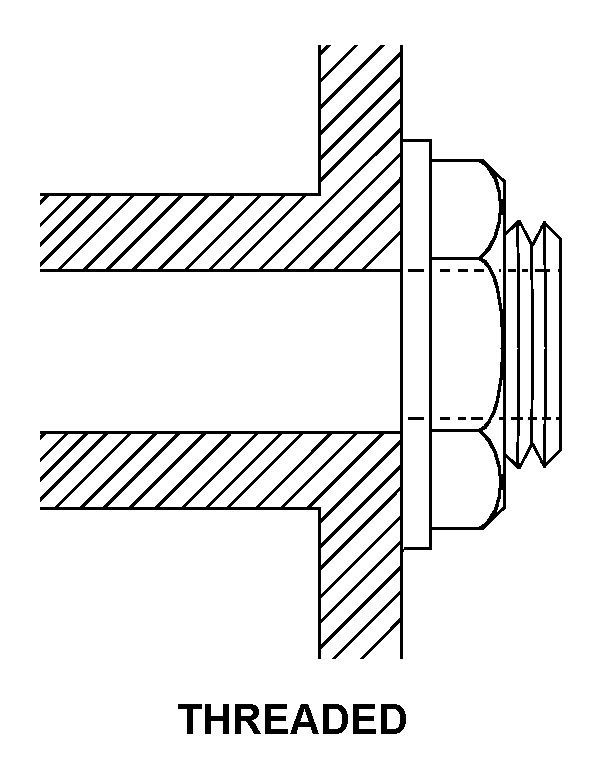

| HUB STYLE DESIGNATOR | 3 THREADED FIRST END 1 PLAIN SECOND END |
| BODY STYLE | 3B WEBBED, OFFSET, SOLID |
| SPECIAL FEATURES | COUNTERBORE BOTHE ENDS |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 214-040-047-5 |
