NSN 3020-01-042-0355 696928, 6969281, 696928-1
Product Details | GEAR CLUSTER
3020-01-042-0355 A cylindrical item having a full 360 degree (6.282 radians) complement of teeth on two or more surfaces. It may be a one-piece casting or composed of two or more separate items firmly held together by welding, rivets, pins, or the like, to form a single unit. It is designed to mount on a shaft. For items consisting of a shaft with an integral complement(s) or gear teeth, see GEARSHAFT (as modified). Excludes GEAR SUBASSEMBLY, SPEED DECREASER.
Part Alternates: 696928, 6969281, 696928-1, 3020-01-042-0355, 01-042-0355, 3020010420355, 010420355
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 06 JUN 1977 | 01-042-0355 | 36636 ( GEAR CLUSTER ) |
Drawings & Photos | NSN 3020-01-042-0355
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-01-042-0355
Technical Data | NSN 3020-01-042-0355
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 SHAFT/HUB COPPER ALLOY 903 OR PLASTIC ACETAL FIRST GEAR STEEL COMP 303 SECOND GEAR |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,COND A FED SPEC SINGLE MATERIAL RESPONSE SHAFT/HUB MIL-B-16540,GRADE A MIL SPEC 1ST MATERIAL RESPONSE FIRST GEAR QQ-S-764,COND A FED SPEC SINGLE MATERIAL RESPONSE SECOND GEAR |
| SURFACE TREATMENT | PASSIVATE SHAFT/HUB PASSIVATE SECOND GEAR |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072 MIL SPEC SINGLE TREATMENT RESPONSE SHAFT/HUB MIL-F-14072 MIL SPEC SINGLE TREATMENT RESPONSE SECOND GEAR |
| CONSTRUCTION | ASSEMBLED |
| DESIGN TYPE | SPUR FIRST GEAR SPUR SECOND GEAR |
| NOMINAL OUTSIDE DIAMETER | 1.763 INCHES FIRST GEAR 0.515 INCHES SECOND GEAR |
| NOMINAL OVERALL LENGTH | 0.870 INCHES |
| PRECISION CLASSIFICATION | QUALITY NUMBER 12 ALL GEARS |

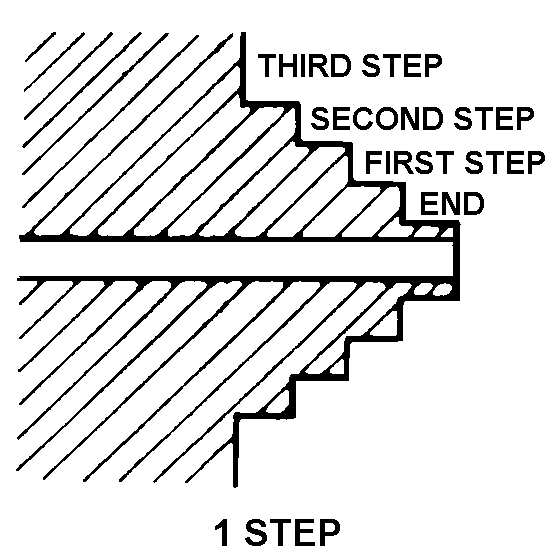

| HUB STYLE DESIGNATOR | 4A 1 STEP BOTH ENDS |
| HUB NOMINAL LENGTH | 0.197 INCHES FIRST END 0.205 INCHES SECOND END |
| HUB NOMINAL DIAMETER | 0.188 INCHES BOTH ENDS |
| SPECIAL FEATURES | FIRST GEAR RIVETED TOGETHER |
Restrictions/Controls & Freight Information | NSN 3020-01-042-0355
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-01-042-0355
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
