NSN 3020-01-025-0489 Q1335SPECIAL, Q13-35SPECIAL, 4256A404PC3
Product Details | WORM WHEEL ANTIBACKLASH GEAR

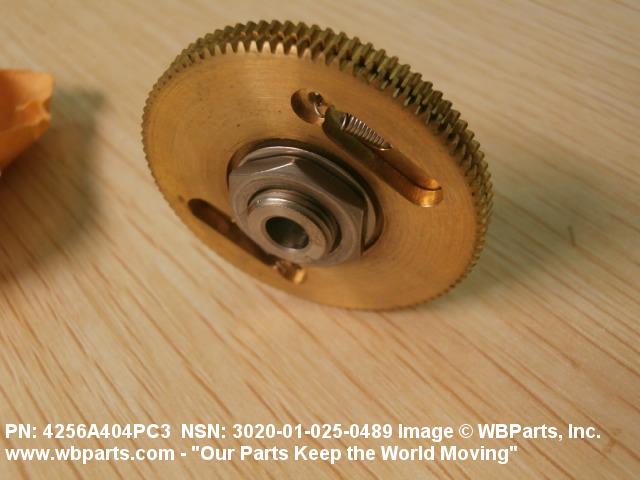

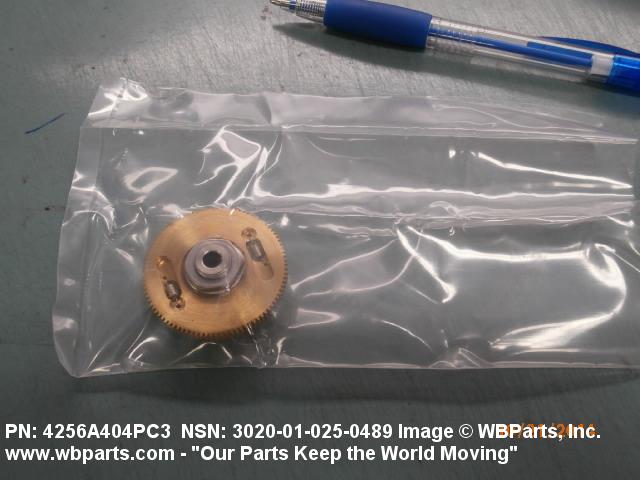

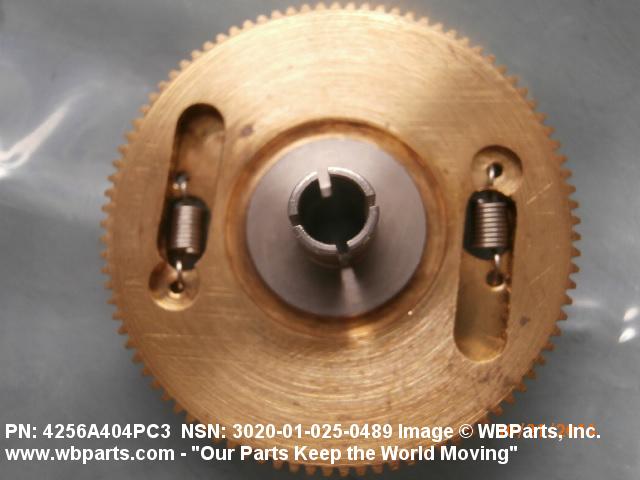

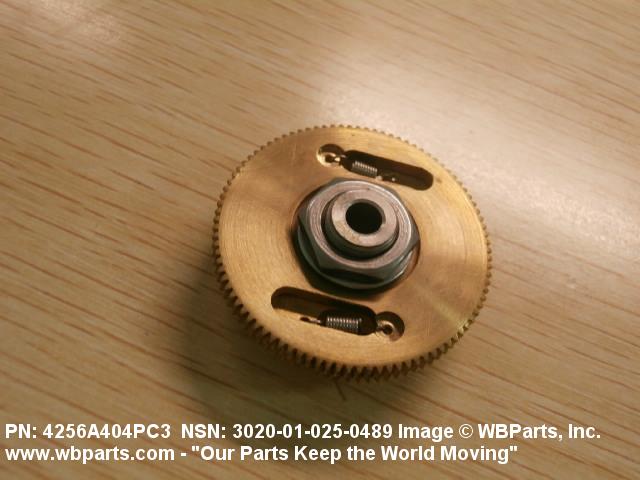

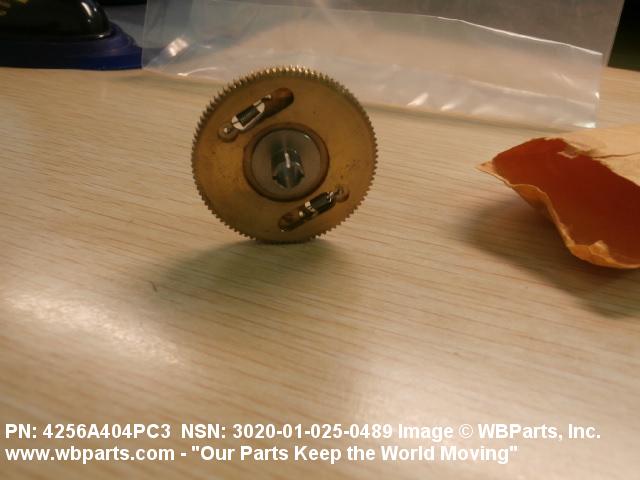

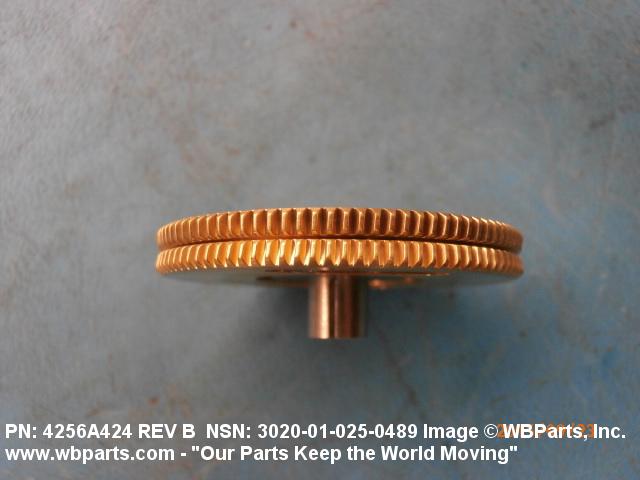

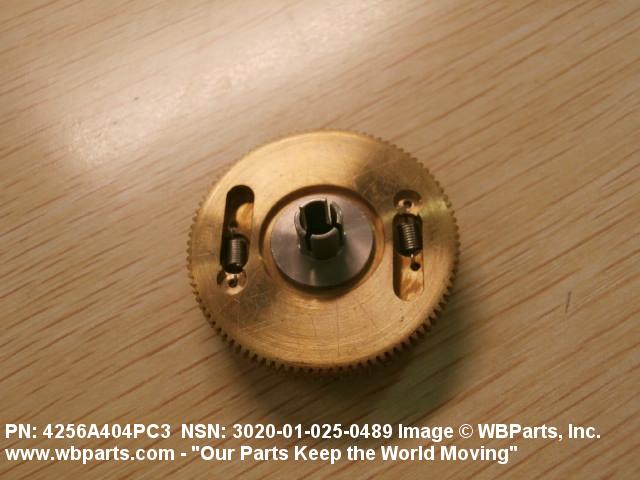

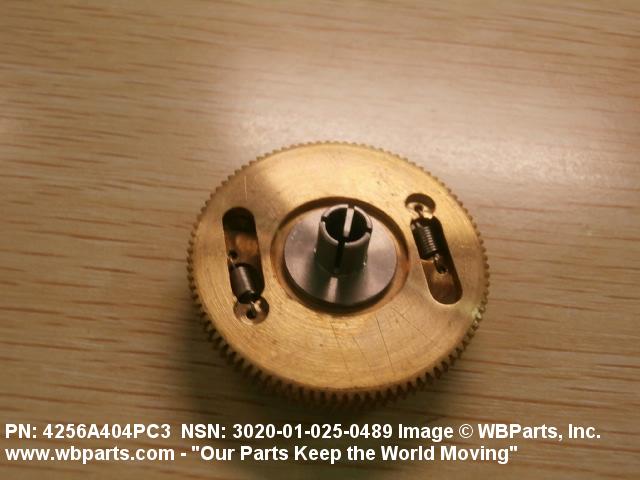

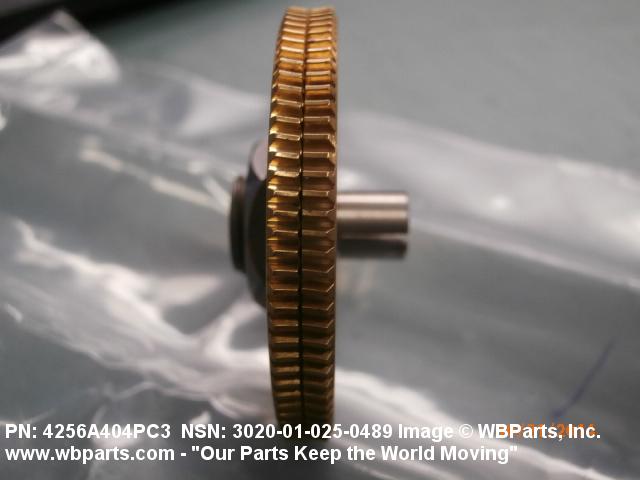

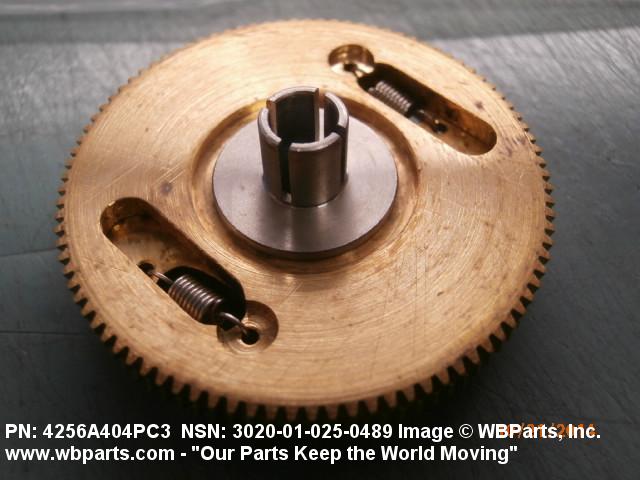

3020-01-025-0489 An item having one fixed gear and one free gear, both having the same complement of worm wheel gear teeth, mounted on a common hub. The free gear is attached to the fixed gear by springs and operates as one gear. Upon installation with the mating gear, the teeth of the free moving gear are preset to mesh with teeth other than those of the fixed gear. This spring tension between the fixed gear and the free gear eliminates any free motion between the driver and the driven gear. The gear is used where identical and accurate transmitted motion between gears is required.
Part Alternates: Q1335SPECIAL, Q13-35SPECIAL, 4256A404PC3, 4256A424, 3020-01-025-0489, 01-025-0489, 3020010250489, 010250489
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 24 JUL 1976 | 01-025-0489 | 26669 ( GEAR, ANTIBACKLASH, WORM WHEEL ) |

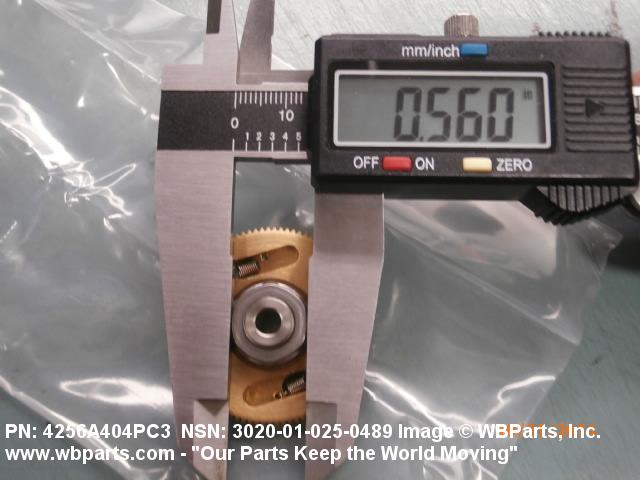

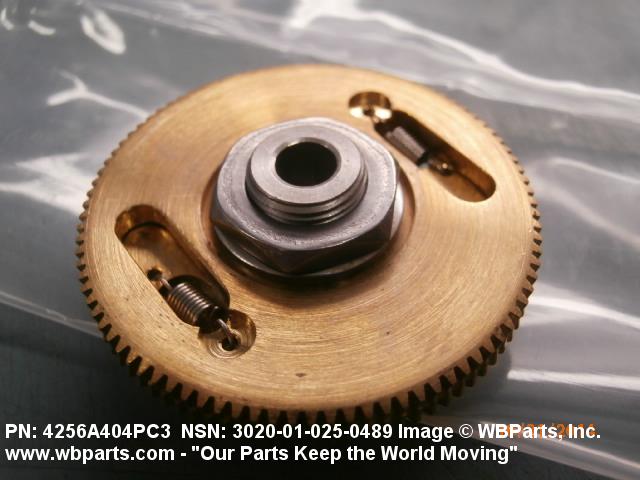

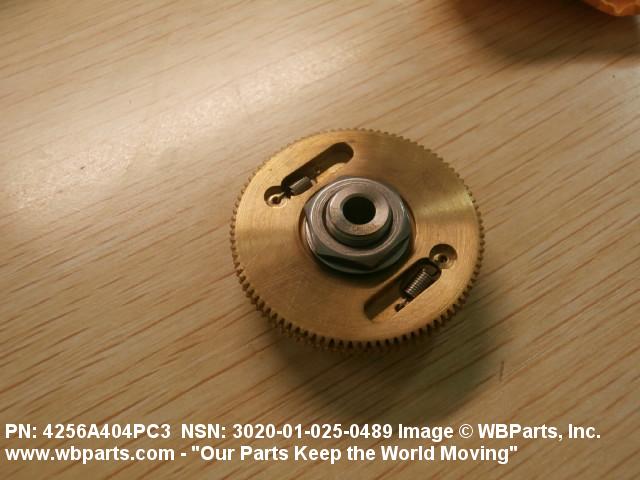

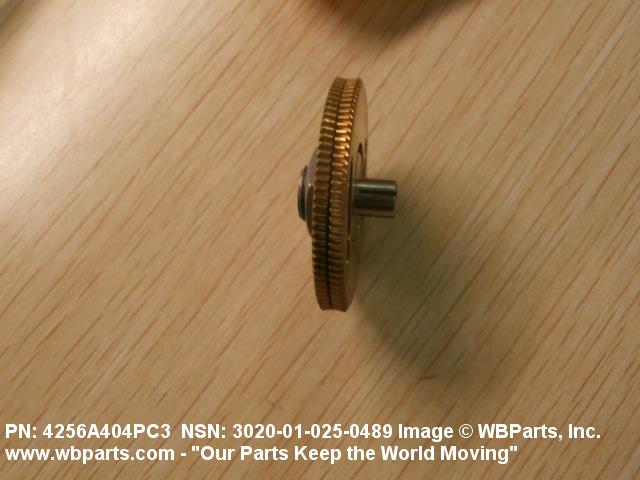

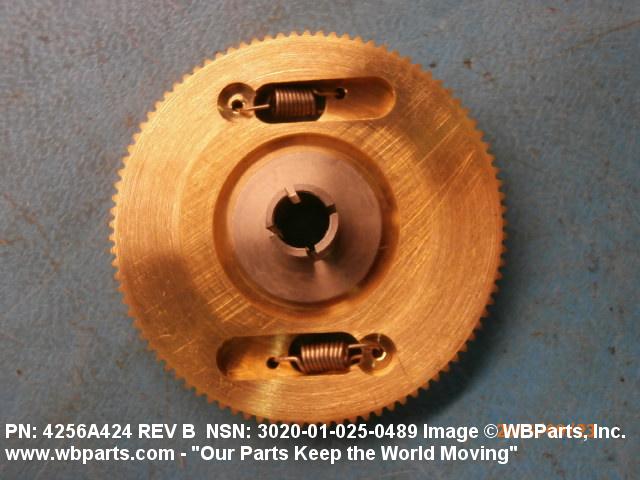

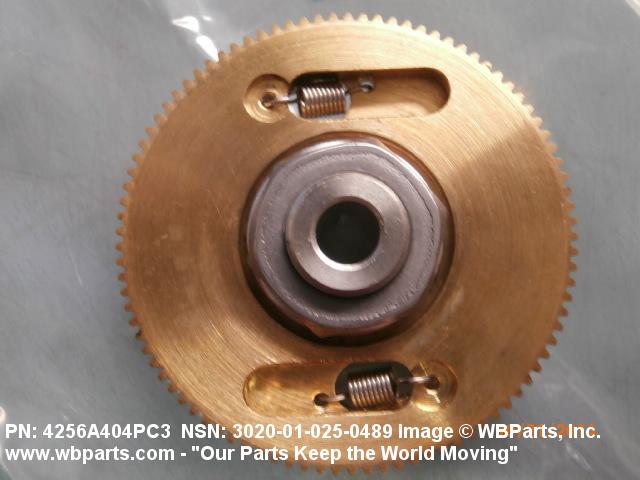

Drawings & Photos | NSN 3020-01-025-0489
Demand History | NSN 3020-01-025-0489
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-025-0489 | 2015-06-181 | 1 | United States |
| 3020-01-025-0489 | 2015-05-149 | 10 | United States |
| 4256A404PC3 | 2014-10-302 | 4 | United States |
| 3020-01-025-0489 | 2014-09-261 | 2 | United States |
| 3020-01-025-0489 | 2014-07-202 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-01-025-0489
Technical Data | NSN 3020-01-025-0489
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 464 BODY STEEL COMP 303 HUB |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-637 FED SPEC SINGLE MATERIAL RESPONSE BODY QQ-S-764,COND A FED SPEC SINGLE MATERIAL RESPONSE HUB |
| SURFACE TREATMENT | PASSIVATE HUB |
| TEETH QUANTITY | 93 |
| TOOTH DIRECTION | RIGHT |
| FACE TYPE | CONCAVE |
| MATING THREAD LEAD QUANTITY | 2 |
| PRESSURE ANGLE | 14.5000 DEGREES |
| HELIX ANGLE | 3.5625 DEGREES |
| STYLE DESIGNATOR | 2 PROTRUDING HUB |

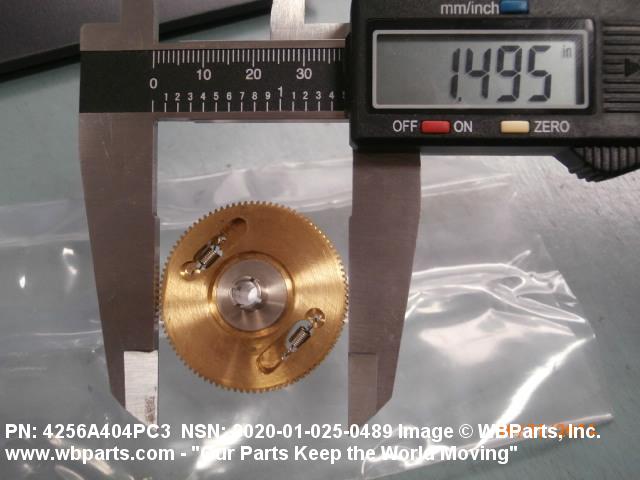

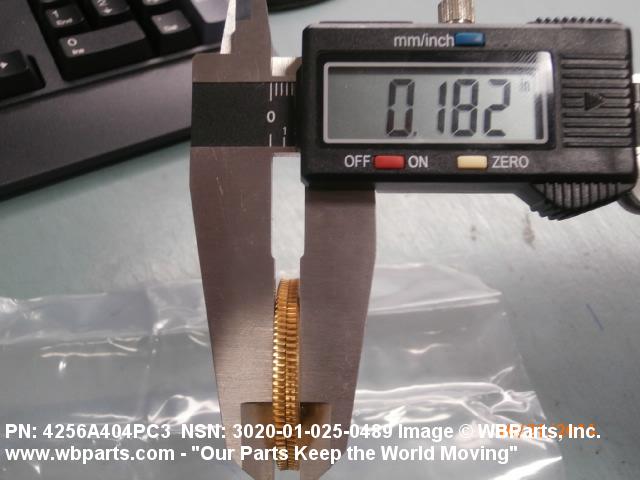

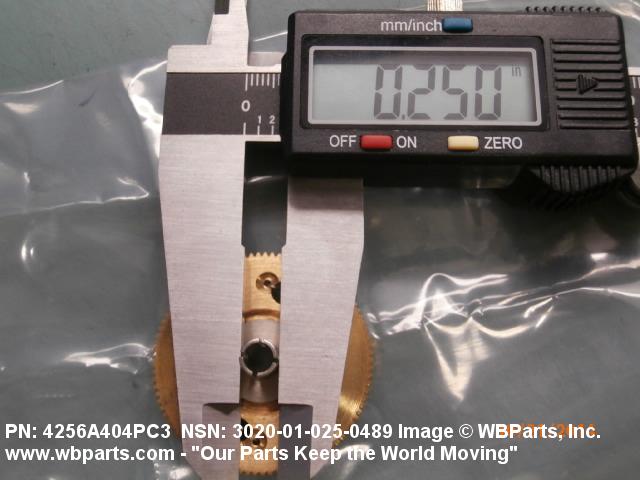

| PITCH DIAMETER | 1.4526 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 1.484 INCHES |
| FACE NOMINAL WIDTH | 0.188 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.219 INCHES FIRST END |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.188 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 2 SPLIT FIRST END |
| HUB NOMINAL DIAMETER | 0.250 INCHES FIRST END |
| ATTACHMENT METHOD | CLAMP |
