Product Details | HELICAL GEAR
3020-00-924-6635 A gear, cylindrical in form, with teeth on the outer surface at an angle to the axis of the gear. See also GEAR, ANTIBACKLASH, HELICAL
Part Alternates: 11699317, 7792459, 3020-00-924-6635, 00-924-6635, 3020009246635, 009246635
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 24 JAN 1966 | 00-924-6635 | 05464 ( GEAR, HELICAL ) |
Drawings & Photos | NSN 3020-00-924-6635
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-924-6635
Related Products | NSN 3020-00-924-6635
Technical Data | NSN 3020-00-924-6635
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,TEMPER T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| TEETH QUANTITY | 55 |
| TEETH TYPE | SINGLE HELIX |
| TOOTH FORM | STUB |
| TOOTH DIRECTION | RIGHT |
| PRESSURE ANGLE | 14.5000 DEGREES |
| HELIX ANGLE | 3.5833 DEGREES |

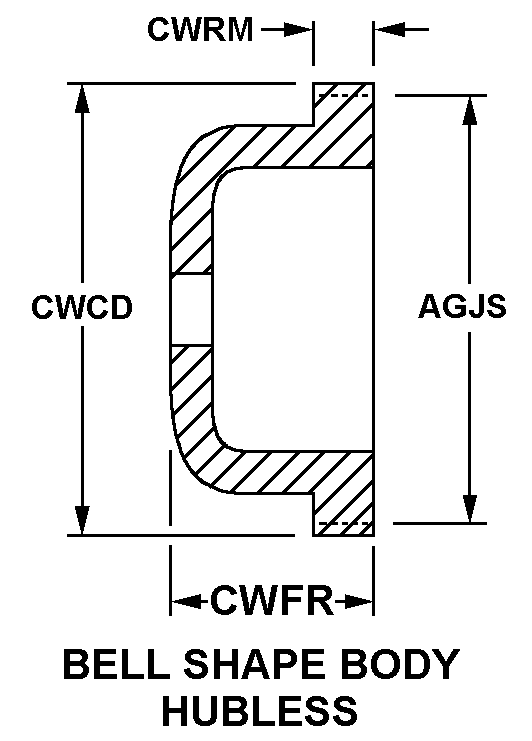

| STYLE DESIGNATOR | 20 BELL SHAPE BODY, HUBLESS |
| PITCH DIAMETER | 1.1481 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 0.320 INCHES |
| NOMINAL OUTSIDE DIAMETER | 1.1897 INCHES |
| FACE NOMINAL WIDTH | 0.132 INCHES |
| BODY RECESS NOMINAL DEPTH | 0.231 INCHES COUNTERBORE, FIRST END |
| BODY STYLE | 2 PLAIN, WITH LIGHTENING HOLES |
| SPECIAL FEATURES | DIAMETRAL PITCH IS 48 |
| III END ITEM IDENTIFICATION | ARMAMENT SUBSYSTEM,HELICOPTER,7.62 MM. MACHINE GUN-2.75 IN. ROCKET LAUNCHER; NSN 1090-00-923-5971 |
